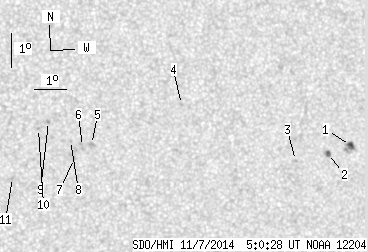

SDO HMI 2014-11-07 05:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.06 | 23.92 | 2.16 | 12.44 | 5.80 | 71.04 | 17.10 | 278.06 | 0.2959 | 167.1 | 26.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-07 05:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.76 | 7.51 | 1.47 | 4.00 | 5.68 | 75.49 | 21.55 | 275.99 | 0.3691 | -995.4 | -792.8 | |
| 1.30 | 2.94 | 0.69 | 1.56 | 5.46 | 74.78 | 20.83 | 275.52 | 0.3572 | -1046.6 | -773.1 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 5.28 | 73.72 | 19.77 | 275.19 | 0.3398 | -818.0 | -693.1 | |
| 0.00 | 1.55 | 0.00 | 0.80 | 7.02 | 70.20 | 16.25 | 282.13 | 0.2854 | -736.0 | -440.8 | |
| 0.00 | 2.42 | 0.00 | 1.23 | 5.88 | 67.38 | 13.43 | 279.58 | 0.2354 | 765.0 | 687.4 | |
| 0.00 | 2.76 | 0.00 | 1.41 | 5.83 | 67.10 | 13.16 | 279.52 | 0.2306 | 756.0 | 653.7 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 5.47 | 66.85 | 12.90 | 278.13 | 0.2256 | 823.0 | 658.4 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 6.01 | 66.74 | 12.79 | 280.57 | 0.2250 | 776.0 | 644.4 | |
| 0.00 | 1.38 | 0.00 | 0.70 | 6.59 | 66.08 | 12.13 | 283.72 | 0.2159 | 925.0 | 840.7 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 6.38 | 65.77 | 11.82 | 283.09 | 0.2100 | 911.0 | 684.0 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 4.94 | 64.95 | 11.00 | 276.59 | 0.1922 | 648.0 | 469.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
