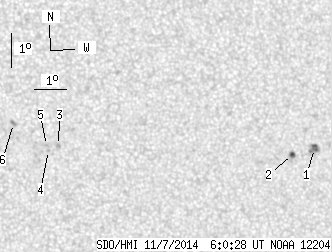

SDO HMI 2014-11-07 06:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.64 | 17.43 | 0.87 | 9.13 | 5.79 | 71.85 | 18.45 | 277.69 | 0.3182 | 267.1 | -153.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-07 06:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.04 | 0.00 | 3.23 | 5.63 | 75.49 | 22.09 | 275.77 | 0.3778 | -1135.0 | -911.3 | |
| 1.64 | 4.23 | 0.87 | 2.25 | 5.47 | 74.78 | 21.38 | 275.47 | 0.3661 | -962.5 | -660.3 | |
| 0.00 | 2.24 | 0.00 | 1.15 | 5.89 | 67.45 | 14.05 | 279.30 | 0.2458 | 796.0 | 649.3 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 5.75 | 67.14 | 13.74 | 278.89 | 0.2402 | 869.0 | 641.9 | |
| 0.00 | 1.21 | 0.00 | 0.62 | 5.90 | 67.08 | 13.68 | 279.54 | 0.2396 | 845.0 | 670.1 | |
| 0.00 | 2.76 | 0.00 | 1.40 | 6.57 | 66.08 | 12.68 | 283.15 | 0.2250 | 1030.0 | 796.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
