SDO HMI 2014-11-07 07:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.72 | 83.24 | 16.21 | 51.17 | -4.89 | 88.00 | 35.14 | 256.31 | 0.5917 | 54.6 | -197.6 | |
|
previous
or next observation for the same group /

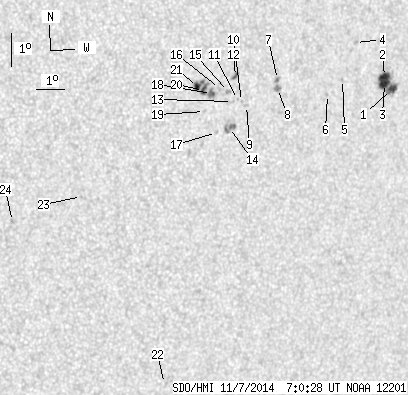

back to the solar disc SDO HMI 2014-11-07 07:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.78 | 29.36 | 3.74 | 18.92 | -4.88 | 91.93 | 39.08 | 257.85 | 0.6448 | 693.7 | 484.5 | |
| 5.96 | -1.00 | 3.83 | -1.00 | -4.48 | 91.64 | 38.78 | 258.37 | 0.6398 | 869.4 | 999999 | |
| 6.73 | -1.00 | 4.33 | -1.00 | -4.69 | 91.65 | 38.79 | 258.05 | 0.6406 | 954.9 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.20 | -3.41 | 90.48 | 37.62 | 259.69 | 0.6217 | 424.0 | 423.1 | |
| 0.00 | 0.78 | 0.00 | 0.49 | -4.50 | 90.05 | 37.19 | 257.82 | 0.6187 | 722.0 | 562.3 | |
| 0.00 | 0.60 | 0.00 | 0.38 | -4.93 | 89.51 | 36.65 | 256.95 | 0.6128 | 768.0 | 628.3 | |
| 0.00 | 1.90 | 0.00 | 1.16 | -4.41 | 87.64 | 34.78 | 257.13 | 0.5857 | 843.0 | 762.1 | |
| 0.00 | 4.23 | 0.00 | 2.58 | -4.68 | 87.65 | 34.80 | 256.68 | 0.5867 | 886.0 | 777.1 | |
| 0.00 | 1.73 | 0.00 | 1.04 | -5.15 | 86.56 | 33.70 | 255.45 | 0.5732 | -565.0 | -434.8 | |
| 0.00 | 0.86 | 0.00 | 0.52 | -5.02 | 86.37 | 33.52 | 255.59 | 0.5701 | -372.0 | -373.6 | |
| 0.00 | 0.69 | 0.00 | 0.41 | -4.95 | 86.23 | 33.37 | 255.64 | 0.5679 | -400.0 | -428.5 | |
| 1.30 | 3.11 | 0.78 | 1.86 | -4.26 | 86.12 | 33.26 | 256.79 | 0.5640 | -671.5 | -511.1 | |
| 0.00 | 1.30 | 0.00 | 0.78 | -5.01 | 86.05 | 33.19 | 255.47 | 0.5656 | -543.0 | -550.9 | |
| 0.00 | 7.86 | 0.00 | 4.72 | -5.79 | 85.99 | 33.13 | 254.11 | 0.5676 | -944.0 | -754.8 | |
| 0.00 | 2.68 | 0.00 | 1.60 | -4.70 | 85.89 | 33.04 | 255.93 | 0.5623 | -739.0 | -587.9 | |
| 0.00 | 1.38 | 0.00 | 0.82 | -4.60 | 85.57 | 32.71 | 255.97 | 0.5574 | -534.0 | -433.2 | |
| 0.00 | 1.12 | 0.00 | 0.67 | -5.92 | 85.54 | 32.68 | 253.66 | 0.5618 | -455.0 | -343.3 | |
| 0.00 | 6.39 | 0.00 | 3.80 | -4.74 | 85.29 | 32.43 | 255.60 | 0.5540 | -916.0 | -705.9 | |
| 0.00 | 1.21 | 0.00 | 0.72 | -5.27 | 85.07 | 32.21 | 254.57 | 0.5529 | -733.0 | -523.0 | |
| 2.76 | 13.38 | 1.64 | 7.91 | -4.64 | 85.00 | 32.15 | 255.65 | 0.5496 | -976.7 | -785.6 | |
| 3.19 | -20.00 | 1.89 | -20.00 | -4.51 | 84.78 | 31.93 | 255.79 | 0.5460 | -1053.7 | 999999 | |
| 0.00 | 0.35 | 0.00 | 0.21 | -13.55 | 84.49 | 31.64 | 240.58 | 0.5877 | 32.0 | 68.0 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -7.69 | 80.97 | 28.11 | 247.80 | 0.5063 | -725.0 | -624.0 | |
| 0.00 | 1.55 | 0.00 | 0.88 | -8.38 | 78.69 | 25.83 | 244.74 | 0.4786 | -823.0 | -596.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
