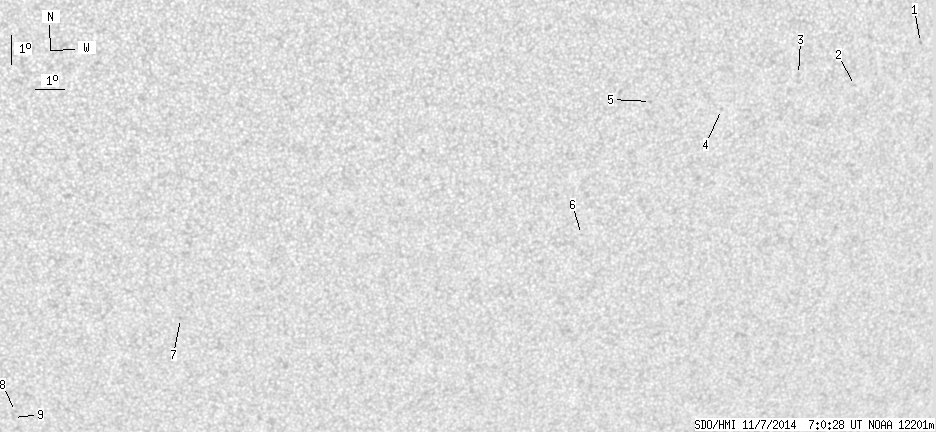

SDO HMI 2014-11-07 07:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.06 | 0.00 | 6.70 | -24.75 | 69.43 | 16.58 | 208.65 | 0.5756 | 232.3 | 184.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-07 07:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.70 | -19.78 | 82.60 | 29.74 | 230.06 | 0.6111 | 764.0 | 608.8 | |
| 0.00 | 0.95 | 0.00 | 0.59 | -21.10 | 80.48 | 27.62 | 226.32 | 0.6004 | 672.0 | 563.1 | |
| 0.00 | 1.99 | 0.00 | 1.20 | -20.68 | 78.40 | 25.55 | 224.73 | 0.5755 | 711.0 | 537.7 | |
| 0.00 | 1.47 | 0.00 | 0.88 | -21.75 | 75.89 | 23.04 | 220.51 | 0.5617 | 677.0 | 388.9 | |
| 0.00 | 1.04 | 0.00 | 0.61 | -21.42 | 73.39 | 20.54 | 217.79 | 0.5351 | 717.0 | 626.4 | |
| 0.00 | 0.69 | 0.00 | 0.42 | -25.83 | 71.70 | 18.85 | 210.67 | 0.5722 | 584.0 | 471.4 | |
| 0.00 | 0.95 | 0.00 | 0.56 | -28.52 | 58.25 | 5.40 | 188.81 | 0.5420 | -811.0 | -626.3 | |
| 0.00 | 0.95 | 0.00 | 0.58 | -31.84 | 52.65 | -0.20 | 179.70 | 0.5839 | -553.0 | -413.1 | |
| 0.00 | 1.90 | 0.00 | 1.16 | -32.06 | 52.58 | -0.27 | 179.60 | 0.5871 | -670.0 | -428.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
