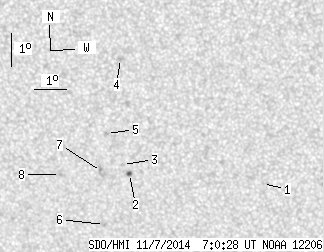

SDO HMI 2014-11-07 07:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.32 | 17.53 | 2.29 | 9.41 | -12.13 | 36.83 | -16.02 | 135.01 | 0.3843 | 119.7 | 280.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-07 07:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.26 | 0.00 | 0.14 | -13.27 | 41.52 | -11.34 | 146.69 | 0.3501 | 1.0 | 3.0 | |
| 1.04 | 2.24 | 0.56 | 1.21 | -13.02 | 37.36 | -15.50 | 137.69 | 0.3885 | 1015.8 | 831.9 | |
| 0.00 | 1.47 | 0.00 | 0.79 | -12.75 | 37.15 | -15.70 | 136.82 | 0.3875 | 629.0 | 509.9 | |
| 3.28 | 4.06 | 1.73 | 2.14 | -9.49 | 37.27 | -15.58 | 130.51 | 0.3500 | -14.3 | -2.6 | |
| 0.00 | 2.16 | 0.00 | 1.16 | -11.80 | 36.71 | -16.15 | 134.25 | 0.3818 | -913.0 | -711.6 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -14.63 | 36.44 | -16.41 | 138.82 | 0.4170 | 909.0 | 769.4 | |
| 0.00 | 5.18 | 0.00 | 2.79 | -12.98 | 36.47 | -16.38 | 136.03 | 0.3977 | 502.0 | 653.6 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -13.09 | 35.15 | -17.70 | 134.05 | 0.4138 | -680.0 | -535.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
