SDO HMI 2014-11-07 08:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 214.18 | 978.33 | 144.16 | 657.86 | 15.48 | 10.91 | -41.40 | 70.97 | 0.6750 | -117.9 | 36.5 | |
|
previous
or next observation for the same group /

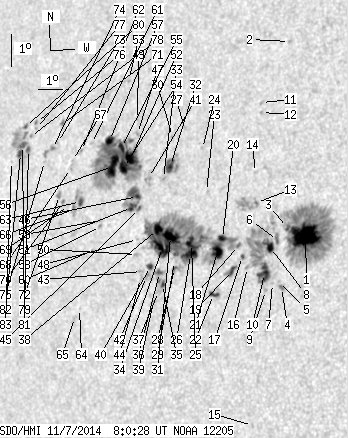

back to the solar disc SDO HMI 2014-11-07 08:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.75 | 227.32 | 25.57 | 142.51 | 15.11 | 15.61 | -36.70 | 70.02 | 0.6161 | -1121.1 | -429.6 | |
| 0.00 | 1.30 | 0.00 | 0.86 | 21.01 | 13.49 | -38.82 | 62.05 | 0.6648 | -652.0 | -573.0 | |
| 2.16 | -1.00 | 1.37 | -1.00 | 15.32 | 14.87 | -37.44 | 69.95 | 0.6264 | -528.5 | 999999 | |
| 0.00 | 2.42 | 0.00 | 1.52 | 13.51 | 15.00 | -37.31 | 72.77 | 0.6194 | -903.0 | -729.5 | |
| 0.00 | 1.04 | 0.00 | 0.65 | 13.68 | 14.89 | -37.42 | 72.52 | 0.6213 | -655.0 | -547.0 | |
| 1.12 | 11.22 | 0.71 | 7.16 | 14.92 | 14.57 | -37.74 | 70.70 | 0.6290 | -797.0 | -331.6 | |
| 0.00 | 0.95 | 0.00 | 0.60 | 13.61 | 14.63 | -37.68 | 72.72 | 0.6245 | -631.0 | -552.6 | |
| 5.18 | 80.55 | 3.30 | 51.54 | 14.69 | 14.34 | -37.97 | 71.12 | 0.6313 | -751.9 | 11.0 | |
| 0.00 | 1.73 | 0.00 | 1.10 | 13.39 | 14.40 | -37.91 | 73.13 | 0.6269 | -731.0 | -572.0 | |
| 12.43 | -8.00 | 7.91 | -8.00 | 13.90 | 14.26 | -38.05 | 72.37 | 0.6300 | -826.5 | 999999 | |
| 0.00 | 1.64 | 0.00 | 1.08 | 19.09 | 12.92 | -39.39 | 65.07 | 0.6637 | -554.0 | -441.2 | |
| 0.00 | 1.21 | 0.00 | 0.80 | 18.78 | 13.00 | -39.31 | 65.48 | 0.6616 | -522.0 | -394.7 | |
| 0.35 | 18.91 | 0.22 | 12.30 | 16.03 | 13.50 | -38.81 | 69.36 | 0.6460 | -497.2 | 253.8 | |
| 0.00 | 1.73 | 0.00 | 1.13 | 16.94 | 13.24 | -39.07 | 68.09 | 0.6522 | -468.0 | -348.0 | |
| 0.00 | 1.12 | 0.00 | 0.70 | 9.34 | 14.53 | -37.78 | 79.58 | 0.6170 | -532.0 | -362.6 | |
| 0.00 | 1.64 | 0.00 | 1.05 | 14.06 | 13.57 | -38.74 | 72.35 | 0.6394 | -600.0 | -419.5 | |
| 0.86 | 2.07 | 0.56 | 1.34 | 14.38 | 13.30 | -39.01 | 71.93 | 0.6436 | -546.5 | -450.9 | |
| 0.69 | 258.66 | 0.45 | 173.10 | 14.71 | 13.08 | -39.23 | 71.51 | 0.6474 | -300.9 | 265.0 | |
| 3.37 | 7.34 | 2.18 | 4.76 | 13.94 | 13.00 | -39.31 | 72.69 | 0.6464 | -591.2 | -308.0 | |
| 4.23 | -18.00 | 2.77 | -18.00 | 14.89 | 12.40 | -39.91 | 71.43 | 0.6564 | 848.0 | 999999 | |
| 10.79 | -18.00 | 7.07 | -18.00 | 14.49 | 12.28 | -40.03 | 72.07 | 0.6568 | -659.9 | 999999 | |
| 2.94 | 4.66 | 1.91 | 3.04 | 13.19 | 12.39 | -39.92 | 73.99 | 0.6523 | 718.1 | 527.1 | |
| 0.00 | 0.60 | 0.00 | 0.40 | 16.29 | 11.42 | -40.89 | 69.68 | 0.6724 | 662.0 | 600.0 | |
| 0.00 | 1.21 | 0.00 | 0.82 | 17.59 | 10.91 | -41.40 | 67.98 | 0.6824 | 737.0 | 604.5 | |
| 8.81 | -18.00 | 5.87 | -18.00 | 14.69 | 11.18 | -41.13 | 72.08 | 0.6710 | 593.7 | 999999 | |
| 10.96 | -18.00 | 7.29 | -18.00 | 14.36 | 11.22 | -41.09 | 72.56 | 0.6697 | -638.1 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.77 | 18.20 | 9.97 | -42.34 | 67.43 | 0.6952 | 615.0 | 562.2 | |
| 1.04 | 5.78 | 0.69 | 3.87 | 13.91 | 10.66 | -41.65 | 73.36 | 0.6756 | -667.9 | -570.0 | |
| 0.00 | 0.43 | 0.00 | 0.29 | 14.12 | 10.62 | -41.69 | 73.07 | 0.6766 | -394.0 | -368.4 | |
| 0.00 | 0.95 | 0.00 | 0.66 | 17.90 | 9.55 | -42.76 | 67.98 | 0.6993 | 546.0 | 486.8 | |
| 10.36 | -18.00 | 7.00 | -18.00 | 14.87 | 10.28 | -42.03 | 72.07 | 0.6825 | 1145.8 | 999999 | |
| 7.60 | 17.79 | 5.22 | 12.20 | 17.01 | 9.72 | -42.59 | 69.17 | 0.6947 | 849.2 | 711.9 | |
| 0.00 | 1.55 | 0.00 | 1.07 | 16.61 | 9.54 | -42.77 | 69.80 | 0.6958 | 774.0 | 675.0 | |
| 14.50 | -18.00 | 9.83 | -18.00 | 14.52 | 10.03 | -42.28 | 72.64 | 0.6847 | -425.9 | 999999 | |
| 1.55 | 10.36 | 1.05 | 6.99 | 13.41 | 10.28 | -42.03 | 74.19 | 0.6793 | -705.8 | -631.2 | |
| 1.64 | -35.00 | 1.11 | -35.00 | 13.77 | 10.08 | -42.23 | 73.72 | 0.6825 | -861.9 | 999999 | |
| 0.00 | 2.07 | 0.00 | 1.40 | 13.19 | 10.16 | -42.15 | 74.53 | 0.6803 | 47.0 | 22.5 | |
| 6.99 | -18.00 | 4.77 | -18.00 | 15.06 | 9.69 | -42.62 | 71.96 | 0.6901 | 1032.8 | 999999 | |
| 0.00 | 1.64 | 0.00 | 1.11 | 12.88 | 10.02 | -42.29 | 75.01 | 0.6814 | 525.0 | 283.1 | |
| 2.50 | 3.89 | 1.70 | 2.64 | 13.93 | 9.66 | -42.65 | 73.58 | 0.6879 | -723.6 | -555.3 | |
| 0.00 | 7.77 | 0.00 | 5.39 | 16.61 | 8.90 | -43.41 | 69.98 | 0.7033 | 733.0 | 708.7 | |
| 0.00 | 2.07 | 0.00 | 1.41 | 13.62 | 9.57 | -42.74 | 74.04 | 0.6884 | -530.0 | -493.0 | |
| 0.00 | 2.07 | 0.00 | 1.42 | 13.76 | 9.33 | -42.99 | 73.89 | 0.6916 | -394.0 | -249.0 | |
| 0.00 | 2.24 | 0.00 | 1.53 | 13.55 | 9.33 | -42.98 | 74.20 | 0.6911 | -282.0 | -246.5 | |
| 1.12 | 31.25 | 0.78 | 21.82 | 15.66 | 8.77 | -43.54 | 71.34 | 0.7024 | -622.8 | 3.5 | |
| 2.16 | -45.00 | 1.50 | -45.00 | 16.02 | 8.59 | -43.72 | 70.89 | 0.7054 | -163.2 | 999999 | |
| 0.00 | 1.55 | 0.00 | 1.10 | 17.93 | 8.03 | -44.28 | 68.41 | 0.7168 | 654.0 | 503.7 | |
| 0.00 | 0.86 | 0.00 | 0.60 | 14.72 | 8.93 | -43.38 | 72.63 | 0.6984 | -513.0 | -411.9 | |
| 0.00 | 0.95 | 0.00 | 0.67 | 18.35 | 7.89 | -44.42 | 67.87 | 0.7195 | 511.0 | 449.2 | |
| 0.00 | 1.90 | 0.00 | 1.31 | 14.27 | 9.00 | -43.31 | 73.25 | 0.6966 | -171.0 | -149.7 | |
| 4.83 | -45.00 | 3.37 | -45.00 | 15.67 | 8.43 | -43.88 | 71.41 | 0.7065 | -591.3 | 999999 | |
| 8.89 | 169.39 | 6.29 | 120.84 | 17.15 | 7.96 | -44.35 | 69.49 | 0.7155 | 1118.7 | 291.6 | |
| 0.00 | 1.21 | 0.00 | 0.87 | 19.53 | 7.09 | -45.22 | 66.53 | 0.7317 | 528.0 | 463.4 | |
| 8.63 | -52.00 | 6.12 | -52.00 | 16.87 | 7.74 | -44.57 | 69.94 | 0.7173 | 276.4 | 999999 | |
| 3.89 | -52.00 | 2.77 | -52.00 | 17.47 | 7.47 | -44.84 | 69.19 | 0.7219 | 847.1 | 999999 | |
| 15.71 | -52.00 | 11.22 | -52.00 | 16.88 | 7.25 | -45.06 | 70.06 | 0.7229 | -614.0 | 999999 | |
| 5.53 | -52.00 | 3.98 | -52.00 | 17.66 | 6.87 | -45.44 | 69.10 | 0.7291 | 688.1 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.23 | 15.04 | 7.25 | -45.06 | 72.57 | 0.7188 | -605.0 | -482.5 | |
| 0.00 | 1.38 | 0.00 | 0.98 | 15.22 | 7.20 | -45.11 | 72.33 | 0.7198 | -497.0 | -398.8 | |
| 0.00 | 0.86 | 0.00 | 0.61 | 14.31 | 7.10 | -45.21 | 73.62 | 0.7192 | 705.0 | 605.3 | |
| 0.00 | 1.21 | 0.00 | 0.88 | 17.54 | 6.11 | -46.20 | 69.47 | 0.7373 | 420.0 | 333.6 | |
| 0.00 | 1.21 | 0.00 | 0.89 | 17.30 | 5.73 | -46.58 | 69.87 | 0.7409 | 409.0 | 366.7 | |
| 2.50 | 9.67 | 1.81 | 7.03 | 15.76 | 6.17 | -46.14 | 71.84 | 0.7327 | 611.0 | 33.6 | |
| 0.00 | 0.43 | 0.00 | 0.31 | 12.54 | 6.95 | -45.36 | 76.08 | 0.7179 | -471.0 | -406.6 | |
| 0.00 | 2.07 | 0.00 | 1.47 | 12.26 | 6.80 | -45.51 | 76.50 | 0.7193 | -403.0 | -344.6 | |
| 0.00 | 5.87 | 0.00 | 4.27 | 15.50 | 5.93 | -46.38 | 72.24 | 0.7349 | -612.0 | -468.1 | |
| 0.00 | 0.26 | 0.00 | 0.19 | 16.98 | 5.43 | -46.88 | 70.37 | 0.7435 | 462.0 | 385.0 | |
| 0.00 | 1.64 | 0.00 | 1.21 | 16.73 | 5.41 | -46.90 | 70.70 | 0.7431 | 798.0 | 604.6 | |
| 0.00 | 1.12 | 0.00 | 0.82 | 15.61 | 5.67 | -46.64 | 72.14 | 0.7380 | -467.0 | -440.0 | |
| 0.43 | 1.47 | 0.32 | 1.08 | 15.72 | 5.41 | -46.90 | 72.05 | 0.7411 | -646.8 | -561.6 | |
| 0.60 | 2.16 | 0.45 | 1.62 | 18.08 | 4.59 | -47.72 | 69.13 | 0.7551 | 583.4 | 444.2 | |
| 0.00 | 3.19 | 0.00 | 2.36 | 15.90 | 5.18 | -47.13 | 71.87 | 0.7441 | -614.0 | -417.5 | |
| 0.00 | 0.78 | 0.00 | 0.58 | 17.50 | 4.56 | -47.75 | 69.90 | 0.7541 | 560.0 | 528.1 | |
| 0.52 | 5.78 | 0.39 | 4.36 | 17.30 | 4.39 | -47.92 | 70.19 | 0.7555 | 744.8 | 586.7 | |
| 0.00 | 1.04 | 0.00 | 0.78 | 16.89 | 4.16 | -48.15 | 70.78 | 0.7571 | 600.0 | 541.4 | |
| 0.00 | 1.55 | 0.00 | 1.20 | 18.06 | 3.37 | -48.94 | 69.45 | 0.7679 | 508.0 | 415.7 | |
| 0.00 | 0.86 | 0.00 | 0.66 | 17.88 | 3.44 | -48.87 | 69.67 | 0.7668 | 569.0 | 527.1 | |
| 0.00 | 0.86 | 0.00 | 0.67 | 17.62 | 3.24 | -49.07 | 70.04 | 0.7684 | 692.0 | 615.1 | |
| 1.64 | 38.51 | 1.26 | 29.84 | 17.22 | 3.29 | -49.02 | 70.54 | 0.7671 | 849.4 | 221.9 | |
| 0.95 | -79.00 | 0.74 | -79.00 | 17.91 | 2.89 | -49.42 | 69.74 | 0.7726 | 340.9 | 999999 | |
| 3.02 | -79.00 | 2.34 | -79.00 | 17.33 | 2.97 | -49.34 | 70.48 | 0.7707 | 624.7 | 999999 | |
| 2.94 | -79.00 | 2.27 | -79.00 | 17.08 | 2.96 | -49.35 | 70.79 | 0.7703 | 671.6 | 999999 | |
| 0.00 | 0.52 | 0.00 | 0.40 | 16.82 | 2.62 | -49.69 | 71.20 | 0.7734 | 524.0 | 461.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
