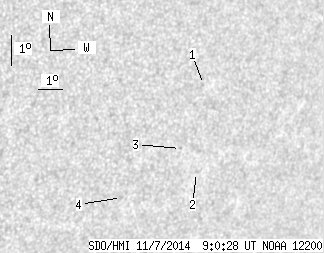

SDO HMI 2014-11-07 09:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.37 | 0.00 | 2.34 | -18.42 | 91.30 | 39.53 | 238.98 | 0.7071 | -632.0 | -510.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-07 09:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.52 | 0.00 | 0.36 | -15.92 | 92.33 | 40.56 | 242.82 | 0.7053 | -673.0 | -571.7 | |
| 0.00 | 0.69 | 0.00 | 0.49 | -18.73 | 92.80 | 41.03 | 239.46 | 0.7242 | -560.0 | -439.1 | |
| 0.00 | 0.69 | 0.00 | 0.48 | -17.92 | 91.91 | 40.14 | 239.99 | 0.7107 | -696.0 | -595.4 | |
| 0.00 | 1.47 | 0.00 | 1.01 | -19.40 | 89.92 | 38.15 | 236.91 | 0.6978 | -599.0 | -481.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
