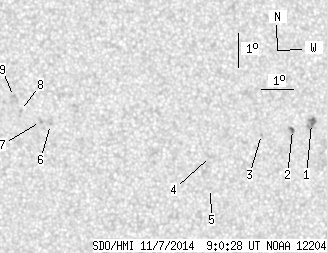

SDO HMI 2014-11-07 09:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.86 | 17.95 | 0.46 | 9.54 | 5.60 | 72.35 | 20.59 | 276.43 | 0.3530 | -7.3 | -259.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-07 09:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.42 | 0.00 | 4.02 | 5.61 | 75.50 | 23.74 | 275.47 | 0.4042 | -1091.0 | -871.0 | |
| 0.86 | 1.81 | 0.46 | 0.98 | 5.44 | 74.88 | 23.11 | 275.15 | 0.3941 | -925.4 | -802.7 | |
| 0.00 | 0.95 | 0.00 | 0.51 | 5.32 | 73.87 | 22.11 | 274.98 | 0.3778 | -789.0 | -559.9 | |
| 0.00 | 2.24 | 0.00 | 1.19 | 4.71 | 72.22 | 20.45 | 273.50 | 0.3504 | -30.0 | -18.3 | |
| 0.00 | 0.26 | 0.00 | 0.14 | 3.76 | 72.19 | 20.42 | 270.77 | 0.3498 | 13.0 | 28.0 | |
| 0.00 | 0.52 | 0.00 | 0.27 | 5.76 | 67.23 | 15.46 | 278.15 | 0.2692 | 759.0 | 580.3 | |
| 0.00 | 1.64 | 0.00 | 0.84 | 5.86 | 66.92 | 15.16 | 278.64 | 0.2643 | 815.0 | 709.6 | |
| 0.00 | 1.21 | 0.00 | 0.62 | 6.20 | 66.31 | 14.55 | 280.27 | 0.2549 | 843.0 | 728.4 | |
| 0.00 | 1.90 | 0.00 | 0.97 | 6.62 | 66.11 | 14.34 | 282.05 | 0.2528 | 762.0 | 674.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
