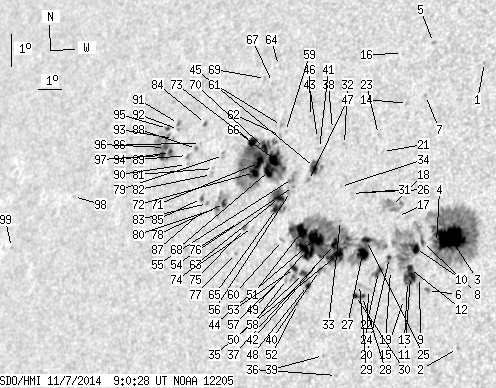

SDO HMI 2014-11-07 09:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 237.52 | 988.88 | 158.97 | 660.45 | 15.50 | 10.80 | -40.96 | 70.80 | 0.6698 | -43.5 | 12.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-07 09:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.60 | 20.48 | 15.67 | -36.10 | 61.47 | 0.6305 | -584.0 | -456.0 | |
| 0.00 | 1.47 | 0.00 | 0.90 | 11.76 | 16.44 | -35.32 | 75.01 | 0.5882 | -678.0 | -519.4 | |
| 40.49 | 217.03 | 25.23 | 135.08 | 15.09 | 15.61 | -36.16 | 69.83 | 0.6091 | -1118.9 | -437.8 | |
| 2.50 | -3.00 | 1.57 | -3.00 | 14.92 | 15.11 | -36.66 | 70.29 | 0.6151 | -646.1 | 999999 | |
| 0.00 | 1.55 | 0.00 | 1.02 | 21.02 | 13.47 | -38.29 | 61.78 | 0.6588 | -685.0 | -556.1 | |
| 0.00 | 2.33 | 0.00 | 1.46 | 13.46 | 15.03 | -36.73 | 72.65 | 0.6116 | -950.0 | -763.4 | |
| 0.00 | 0.60 | 0.00 | 0.39 | 19.38 | 13.62 | -38.14 | 64.10 | 0.6500 | -692.0 | -607.1 | |
| 0.95 | 10.01 | 0.60 | 6.34 | 14.90 | 14.57 | -37.20 | 70.52 | 0.6220 | -711.7 | -434.5 | |
| 0.00 | 3.02 | 0.00 | 1.90 | 13.84 | 14.66 | -37.11 | 72.16 | 0.6176 | -708.0 | -514.9 | |
| 4.92 | 85.90 | 3.11 | 54.54 | 14.71 | 14.34 | -37.43 | 70.90 | 0.6244 | -774.4 | -12.2 | |
| 7.60 | -10.00 | 4.80 | -10.00 | 13.86 | 14.31 | -37.46 | 72.25 | 0.6223 | -885.6 | 999999 | |
| 3.11 | -10.00 | 1.97 | -10.00 | 14.10 | 14.22 | -37.54 | 71.90 | 0.6240 | -676.1 | 999999 | |
| 2.94 | -10.00 | 1.85 | -10.00 | 13.71 | 14.22 | -37.54 | 72.52 | 0.6230 | -697.2 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.90 | 19.11 | 12.97 | -38.79 | 64.78 | 0.6567 | -516.0 | -425.7 | |
| 0.00 | 1.47 | 0.00 | 0.93 | 13.16 | 14.17 | -37.60 | 73.40 | 0.6222 | -185.0 | -242.2 | |
| 0.00 | 0.60 | 0.00 | 0.40 | 20.64 | 12.32 | -39.44 | 62.86 | 0.6705 | -484.0 | -440.6 | |
| 0.00 | 0.43 | 0.00 | 0.28 | 15.65 | 13.43 | -38.33 | 69.76 | 0.6388 | -506.0 | -436.2 | |
| 0.00 | 20.55 | 0.00 | 13.27 | 15.97 | 13.12 | -38.64 | 69.38 | 0.6437 | 427.0 | 277.8 | |
| 0.00 | 3.28 | 0.00 | 2.09 | 14.01 | 13.50 | -38.26 | 72.27 | 0.6331 | -745.0 | -493.4 | |
| 0.95 | 3.19 | 0.61 | 2.04 | 14.40 | 13.38 | -38.38 | 71.70 | 0.6357 | -518.6 | -498.2 | |
| 0.00 | 0.95 | 0.00 | 0.62 | 17.60 | 12.37 | -39.40 | 67.23 | 0.6584 | -491.0 | -369.5 | |
| 3.45 | 6.99 | 2.22 | 4.49 | 13.96 | 13.04 | -38.72 | 72.48 | 0.6389 | -702.3 | -410.8 | |
| 0.00 | 0.60 | 0.00 | 0.40 | 18.11 | 12.07 | -39.70 | 66.60 | 0.6638 | -538.0 | -433.0 | |
| 0.00 | 0.86 | 0.00 | 0.56 | 13.41 | 12.76 | -39.01 | 73.42 | 0.6412 | 227.0 | 180.1 | |
| 4.06 | 250.70 | 2.64 | 166.44 | 14.88 | 12.37 | -39.39 | 71.29 | 0.6499 | 873.7 | 229.4 | |
| 0.00 | 1.04 | 0.00 | 0.68 | 16.33 | 12.00 | -39.76 | 69.24 | 0.6588 | 750.0 | 657.8 | |
| 10.96 | -25.00 | 7.12 | -25.00 | 14.48 | 12.30 | -39.46 | 71.91 | 0.6497 | -689.9 | 999999 | |
| 1.21 | 5.78 | 0.78 | 3.74 | 13.19 | 12.56 | -39.20 | 73.81 | 0.6431 | 696.1 | 581.8 | |
| 0.00 | 1.21 | 0.00 | 0.78 | 13.54 | 12.37 | -39.39 | 73.32 | 0.6464 | 363.0 | 312.9 | |
| 1.73 | -28.00 | 1.12 | -28.00 | 13.21 | 12.28 | -39.48 | 73.86 | 0.6468 | 655.2 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.63 | 16.28 | 11.45 | -40.32 | 69.51 | 0.6654 | 675.0 | 496.9 | |
| 0.00 | 0.78 | 0.00 | 0.52 | 17.75 | 10.77 | -40.99 | 67.59 | 0.6781 | 644.0 | 574.2 | |
| 0.00 | 0.78 | 0.00 | 0.51 | 15.44 | 11.20 | -40.57 | 70.81 | 0.6660 | 253.0 | 244.0 | |
| 0.00 | 0.43 | 0.00 | 0.29 | 16.47 | 10.95 | -40.82 | 69.39 | 0.6721 | 686.0 | 583.6 | |
| 14.33 | -25.00 | 9.45 | -25.00 | 14.38 | 11.28 | -40.49 | 72.36 | 0.6623 | -535.8 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.67 | 10.78 | 11.95 | -39.81 | 77.65 | 0.6462 | -621.0 | -461.2 | |
| 5.96 | -25.00 | 3.94 | -25.00 | 14.71 | 11.12 | -40.64 | 71.92 | 0.6650 | 861.2 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.76 | 18.19 | 10.14 | -41.62 | 67.19 | 0.6869 | 640.0 | 458.8 | |
| 0.00 | 0.78 | 0.00 | 0.51 | 11.36 | 11.34 | -40.42 | 76.89 | 0.6551 | -643.0 | -535.3 | |
| 1.12 | 4.23 | 0.75 | 2.81 | 13.90 | 10.69 | -41.07 | 73.23 | 0.6684 | -705.2 | -611.8 | |
| 0.00 | 1.55 | 0.00 | 1.06 | 17.59 | 9.77 | -41.99 | 68.16 | 0.6894 | 665.0 | 562.0 | |
| 0.00 | 0.95 | 0.00 | 0.63 | 14.14 | 10.60 | -41.17 | 72.90 | 0.6702 | -527.0 | -420.1 | |
| 0.00 | 1.04 | 0.00 | 0.71 | 17.89 | 9.60 | -42.16 | 67.80 | 0.6923 | 629.0 | 473.2 | |
| 17.18 | -25.00 | 11.50 | -25.00 | 14.86 | 10.31 | -41.45 | 71.92 | 0.6754 | 1042.6 | 999999 | |
| 7.34 | 14.59 | 4.99 | 9.92 | 17.00 | 9.73 | -42.04 | 69.01 | 0.6882 | 850.3 | 730.2 | |
| 0.00 | 1.04 | 0.00 | 0.72 | 18.55 | 9.11 | -42.66 | 67.04 | 0.7001 | 648.0 | 514.7 | |
| 0.00 | 1.38 | 0.00 | 0.94 | 16.60 | 9.58 | -42.18 | 69.63 | 0.6888 | 633.0 | 606.5 | |
| 1.99 | 8.03 | 1.32 | 5.36 | 13.43 | 10.30 | -41.46 | 74.02 | 0.6723 | -678.1 | -497.7 | |
| 16.23 | -25.00 | 10.90 | -25.00 | 14.48 | 10.03 | -41.73 | 72.55 | 0.6780 | -425.3 | 999999 | |
| 2.50 | 13.81 | 1.68 | 9.30 | 13.78 | 10.06 | -41.70 | 73.56 | 0.6760 | -824.6 | -522.9 | |
| 10.36 | -25.00 | 7.01 | -25.00 | 15.04 | 9.69 | -42.07 | 71.82 | 0.6835 | 972.2 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.58 | 12.84 | 10.01 | -41.75 | 74.95 | 0.6746 | 573.0 | 547.6 | |
| 2.85 | -50.00 | 1.92 | -50.00 | 13.92 | 9.66 | -42.10 | 73.46 | 0.6812 | -689.0 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.89 | 16.39 | 9.01 | -42.76 | 70.09 | 0.6950 | 780.0 | 660.8 | |
| 0.00 | 5.53 | 0.00 | 3.80 | 16.63 | 8.90 | -42.86 | 69.79 | 0.6969 | 740.0 | 721.7 | |
| 0.00 | 5.01 | 0.00 | 3.44 | 16.23 | 8.92 | -42.84 | 70.34 | 0.6956 | 780.0 | 482.6 | |
| 0.00 | 1.12 | 0.00 | 0.76 | 13.82 | 9.43 | -42.33 | 73.66 | 0.6838 | -367.0 | -254.6 | |
| 0.00 | 2.24 | 0.00 | 1.52 | 13.57 | 9.41 | -42.36 | 74.02 | 0.6836 | -301.0 | -254.5 | |
| 0.00 | 0.95 | 0.00 | 0.66 | 18.05 | 8.18 | -43.58 | 68.03 | 0.7091 | 533.0 | 431.5 | |
| 0.00 | 1.99 | 0.00 | 1.36 | 14.74 | 8.97 | -42.80 | 72.45 | 0.6915 | -482.0 | -352.4 | |
| 0.00 | 1.81 | 0.00 | 1.27 | 18.22 | 7.96 | -43.81 | 67.86 | 0.7122 | 598.0 | 503.4 | |
| 0.00 | 1.38 | 0.00 | 0.97 | 17.92 | 8.01 | -43.76 | 68.26 | 0.7108 | 624.0 | 504.2 | |
| 5.78 | 31.16 | 4.00 | 21.56 | 16.03 | 8.51 | -43.25 | 70.74 | 0.7000 | -82.4 | -58.7 | |
| 0.00 | 0.35 | 0.00 | 0.25 | 20.05 | 7.21 | -44.56 | 65.62 | 0.7260 | 338.0 | 434.5 | |
| 5.35 | -63.00 | 3.70 | -63.00 | 15.69 | 8.47 | -43.29 | 71.22 | 0.6996 | -619.6 | 999999 | |
| 12.52 | 168.25 | 8.76 | 118.90 | 17.17 | 7.97 | -43.79 | 69.30 | 0.7092 | 1045.3 | 211.3 | |
| 0.00 | 0.69 | 0.00 | 0.50 | 19.52 | 7.13 | -44.64 | 66.36 | 0.7252 | 552.0 | 531.5 | |
| 10.45 | -66.00 | 7.32 | -66.00 | 16.83 | 7.86 | -43.91 | 69.80 | 0.7096 | 335.2 | 999999 | |
| 0.00 | 1.64 | 0.00 | 1.18 | 19.63 | 6.78 | -44.99 | 66.32 | 0.7294 | 447.0 | 457.2 | |
| 4.23 | -66.00 | 2.99 | -66.00 | 17.49 | 7.44 | -44.32 | 69.01 | 0.7161 | 799.5 | 999999 | |
| 7.34 | -66.00 | 5.19 | -66.00 | 17.06 | 7.36 | -44.41 | 69.63 | 0.7159 | -487.7 | 999999 | |
| 4.75 | -66.00 | 3.36 | -66.00 | 16.74 | 7.23 | -44.53 | 70.10 | 0.7166 | -824.3 | 999999 | |
| 5.70 | -66.00 | 4.07 | -66.00 | 17.65 | 6.87 | -44.90 | 68.96 | 0.7230 | 612.5 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.54 | 15.08 | 7.61 | -44.16 | 72.30 | 0.7084 | -522.0 | -403.7 | |
| 0.69 | 2.24 | 0.49 | 1.58 | 15.03 | 7.27 | -44.49 | 72.45 | 0.7122 | -608.1 | -456.8 | |
| 0.00 | 1.04 | 0.00 | 0.73 | 15.20 | 6.97 | -44.80 | 72.28 | 0.7161 | -482.0 | -408.6 | |
| 0.00 | 1.12 | 0.00 | 0.79 | 14.27 | 7.13 | -44.64 | 73.55 | 0.7124 | 801.0 | 592.4 | |
| 2.42 | 18.04 | 1.74 | 12.99 | 15.75 | 6.20 | -45.56 | 71.71 | 0.7261 | 628.9 | -60.2 | |
| 0.00 | 3.02 | 0.00 | 2.20 | 17.20 | 5.72 | -46.05 | 69.87 | 0.7348 | 154.0 | 261.3 | |
| 1.04 | -78.00 | 0.75 | -78.00 | 15.58 | 5.89 | -45.87 | 72.01 | 0.7293 | -553.9 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.57 | 16.79 | 5.40 | -46.37 | 70.51 | 0.7374 | 425.0 | 428.2 | |
| 0.00 | 2.33 | 0.00 | 1.70 | 16.60 | 5.36 | -46.40 | 70.76 | 0.7374 | 325.0 | 357.6 | |
| 0.00 | 1.64 | 0.00 | 1.19 | 15.72 | 5.45 | -46.31 | 71.93 | 0.7345 | -656.0 | -614.7 | |
| 0.78 | 1.90 | 0.58 | 1.42 | 18.14 | 4.58 | -47.18 | 68.92 | 0.7494 | 558.1 | 443.6 | |
| 1.04 | 2.07 | 0.76 | 1.52 | 15.85 | 5.14 | -46.62 | 71.81 | 0.7383 | -460.2 | -337.0 | |
| 0.00 | 1.04 | 0.00 | 0.77 | 17.52 | 4.56 | -47.20 | 69.74 | 0.7482 | 549.0 | 495.4 | |
| 0.00 | 1.04 | 0.00 | 0.76 | 15.43 | 5.22 | -46.54 | 72.36 | 0.7366 | -428.0 | -385.0 | |
| 0.43 | 1.38 | 0.32 | 1.03 | 17.36 | 4.43 | -47.33 | 69.98 | 0.7493 | 651.2 | 546.0 | |
| 0.00 | 1.90 | 0.00 | 1.42 | 17.13 | 4.10 | -47.67 | 70.36 | 0.7524 | 619.0 | 586.8 | |
| 0.00 | 0.69 | 0.00 | 0.52 | 16.85 | 4.14 | -47.62 | 70.71 | 0.7514 | 583.0 | 499.4 | |
| 0.78 | 2.33 | 0.59 | 1.78 | 18.08 | 3.34 | -48.43 | 69.30 | 0.7626 | 402.3 | 299.9 | |
| 0.00 | 1.21 | 0.00 | 0.92 | 17.90 | 3.40 | -48.36 | 69.52 | 0.7615 | 630.0 | 504.4 | |
| 0.00 | 1.12 | 0.00 | 0.86 | 17.61 | 3.27 | -48.49 | 69.92 | 0.7623 | 664.0 | 599.0 | |
| 1.64 | 42.39 | 1.25 | 32.50 | 17.18 | 3.28 | -48.48 | 70.48 | 0.7613 | 851.5 | 208.8 | |
| 1.21 | -94.00 | 0.93 | -94.00 | 17.90 | 2.88 | -48.88 | 69.63 | 0.7670 | 326.7 | 999999 | |
| 3.19 | -94.00 | 2.45 | -94.00 | 17.32 | 3.00 | -48.77 | 70.36 | 0.7646 | 602.3 | 999999 | |
| 3.45 | -94.00 | 2.64 | -94.00 | 17.07 | 2.94 | -48.82 | 70.69 | 0.7647 | 620.3 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.85 | 15.63 | 359.08 | -52.69 | 73.22 | 0.8022 | 475.0 | 409.1 | |
| 0.00 | 1.12 | 0.00 | 0.98 | 13.94 | 356.43 | -55.33 | 75.63 | 0.8262 | 537.0 | 455.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
