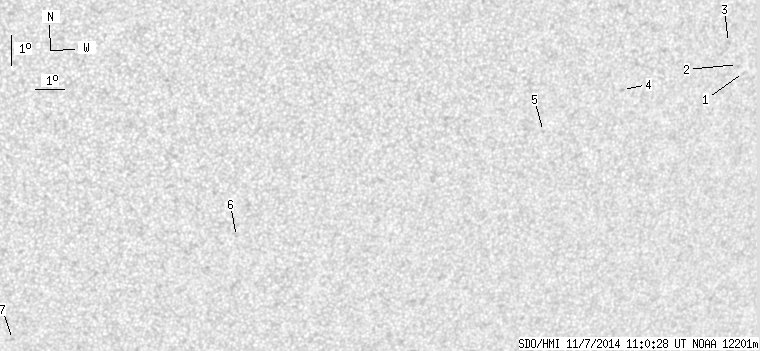

SDO HMI 2014-11-07 11:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.07 | 0.00 | 4.41 | -21.54 | 77.27 | 26.60 | 223.94 | 0.6061 | 174.9 | 274.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-07 11:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.38 | 0.00 | 0.89 | -20.30 | 82.81 | 32.14 | 231.45 | 0.6403 | 529.0 | 358.3 | |
| 0.00 | 0.60 | 0.00 | 0.39 | -20.03 | 82.52 | 31.85 | 231.57 | 0.6353 | 209.0 | 328.7 | |
| 0.00 | 1.64 | 0.00 | 1.04 | -19.30 | 82.03 | 31.36 | 232.12 | 0.6245 | 777.0 | 579.8 | |
| 0.00 | 1.47 | 0.00 | 0.91 | -20.70 | 78.46 | 27.79 | 227.02 | 0.5983 | 643.0 | 491.7 | |
| 0.00 | 0.69 | 0.00 | 0.42 | -21.99 | 75.89 | 25.22 | 222.71 | 0.5847 | 535.0 | 466.8 | |
| 0.00 | 0.43 | 0.00 | 0.25 | -25.25 | 65.78 | 15.11 | 206.05 | 0.5389 | -688.0 | -533.4 | |
| 0.00 | 0.86 | 0.00 | 0.51 | -28.70 | 58.50 | 7.83 | 192.58 | 0.5508 | -781.0 | -678.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
