SDO HMI 2014-11-07 11:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.04 | 20.47 | 0.56 | 10.87 | 5.74 | 71.40 | 20.73 | 276.77 | 0.3554 | 196.6 | -45.5 | |
|
previous
or next observation for the same group /

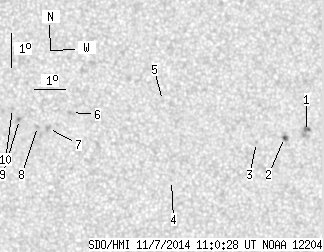

back to the solar disc SDO HMI 2014-11-07 11:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.39 | 0.00 | 3.49 | 5.59 | 75.56 | 24.88 | 275.29 | 0.4224 | -1005.0 | -831.0 | |
| 1.04 | 2.68 | 0.56 | 1.45 | 5.44 | 74.83 | 24.15 | 275.01 | 0.4107 | -930.8 | -721.6 | |
| 0.00 | 0.78 | 0.00 | 0.42 | 5.31 | 73.91 | 23.24 | 274.82 | 0.3959 | -777.0 | -638.6 | |
| 0.00 | 0.95 | 0.00 | 0.50 | 4.25 | 71.14 | 20.47 | 272.21 | 0.3505 | -56.0 | -56.7 | |
| 0.00 | 0.26 | 0.00 | 0.14 | 6.64 | 70.94 | 20.27 | 279.07 | 0.3500 | 2.0 | -1.3 | |
| 0.00 | 2.50 | 0.00 | 1.30 | 6.34 | 68.05 | 17.38 | 279.33 | 0.3022 | 591.0 | 571.2 | |
| 0.00 | 3.02 | 0.00 | 1.56 | 5.88 | 67.32 | 16.65 | 278.09 | 0.2891 | 845.0 | 659.9 | |
| 0.00 | 1.64 | 0.00 | 0.85 | 5.95 | 66.98 | 16.31 | 278.46 | 0.2836 | 870.0 | 749.0 | |
| 0.00 | 1.47 | 0.00 | 0.76 | 6.17 | 66.42 | 15.75 | 279.50 | 0.2749 | 1028.0 | 866.9 | |
| 0.00 | 0.78 | 0.00 | 0.40 | 6.50 | 66.22 | 15.55 | 280.82 | 0.2723 | 903.0 | 762.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
