SDO HMI 2014-11-07 12:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.11 | 0.00 | 5.44 | -16.73 | 58.01 | 7.89 | 199.20 | 0.3867 | 314.4 | 274.1 | |
|
previous
or next observation for the same group /

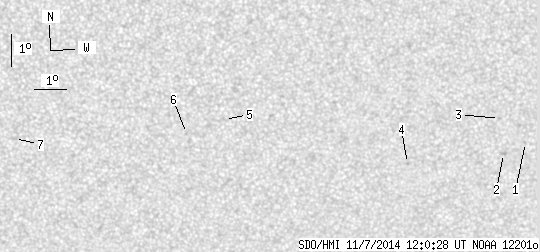

back to the solar disc SDO HMI 2014-11-07 12:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.04 | 0.00 | 0.57 | -16.89 | 64.68 | 14.55 | 214.50 | 0.4264 | 576.0 | 431.7 | |
| 0.00 | 2.24 | 0.00 | 1.23 | -17.23 | 64.00 | 13.87 | 212.78 | 0.4248 | 720.0 | 639.7 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -16.12 | 63.79 | 13.67 | 213.93 | 0.4084 | 800.0 | 594.2 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -17.50 | 60.96 | 10.83 | 206.42 | 0.4045 | 770.0 | 626.8 | |
| 0.00 | 1.47 | 0.00 | 0.78 | -16.04 | 55.16 | 5.04 | 194.03 | 0.3497 | 13.0 | -0.3 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -16.48 | 53.99 | 3.87 | 190.62 | 0.3525 | -686.0 | -510.1 | |
| 0.00 | 2.42 | 0.00 | 1.28 | -16.62 | 48.66 | -1.46 | 175.97 | 0.3499 | 8.0 | 4.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
