SDO HMI 2014-11-07 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.11 | 0.00 | 5.04 | -22.75 | 74.37 | 24.79 | 220.68 | 0.6063 | 295.5 | 241.5 | |
|
previous
or next observation for the same group /

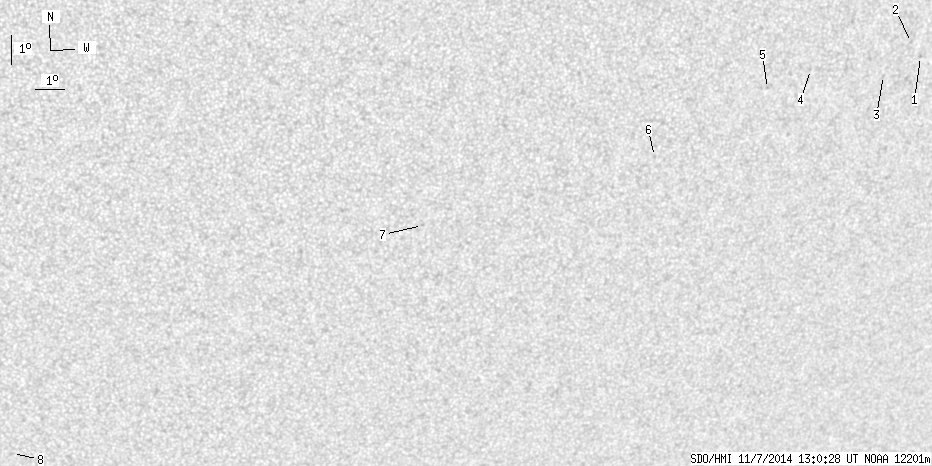

back to the solar disc SDO HMI 2014-11-07 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.56 | -20.07 | 82.49 | 32.91 | 232.37 | 0.6467 | 760.0 | 640.7 | |
| 0.00 | 1.12 | 0.00 | 0.72 | -19.60 | 82.04 | 32.46 | 232.63 | 0.6385 | 729.0 | 529.1 | |
| 0.00 | 1.12 | 0.00 | 0.72 | -20.64 | 81.23 | 31.65 | 230.61 | 0.6378 | 590.0 | 451.5 | |
| 0.00 | 0.78 | 0.00 | 0.48 | -20.34 | 78.48 | 28.90 | 228.57 | 0.6068 | 545.0 | 372.7 | |
| 0.00 | 0.78 | 0.00 | 0.48 | -20.91 | 77.05 | 27.47 | 226.43 | 0.5969 | 621.0 | 513.9 | |
| 0.00 | 1.47 | 0.00 | 0.89 | -23.04 | 73.43 | 23.86 | 219.91 | 0.5824 | 374.0 | 417.3 | |
| 0.00 | 1.12 | 0.00 | 0.66 | -25.17 | 65.73 | 16.15 | 207.65 | 0.5447 | -748.0 | -619.7 | |
| 0.00 | 0.86 | 0.00 | 0.53 | -33.07 | 52.25 | 2.67 | 183.73 | 0.6022 | -507.0 | -436.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
