SDO HMI 2014-11-07 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.46 | 0.00 | 4.54 | -16.71 | 57.16 | 7.58 | 198.52 | 0.3815 | 195.7 | 185.8 | |
|
previous
or next observation for the same group /

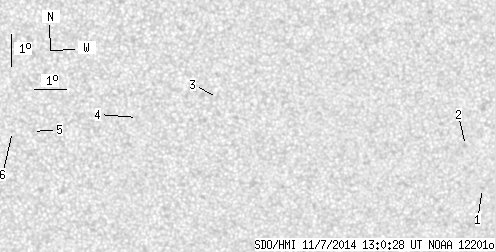

back to the solar disc SDO HMI 2014-11-07 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.67 | -18.62 | 64.83 | 15.25 | 213.41 | 0.4545 | 689.0 | 510.3 | |
| 0.00 | 1.64 | 0.00 | 0.90 | -17.24 | 64.16 | 14.58 | 214.08 | 0.4310 | 592.0 | 546.7 | |
| 0.00 | 2.76 | 0.00 | 1.46 | -15.61 | 56.25 | 6.67 | 198.71 | 0.3504 | 4.0 | 13.4 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -16.22 | 53.78 | 4.21 | 191.68 | 0.3495 | -61.0 | -63.3 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -16.65 | 50.53 | 0.96 | 182.63 | 0.3498 | -22.0 | 0.1 | |
| 0.00 | 1.73 | 0.00 | 0.91 | -16.65 | 49.91 | 0.34 | 180.93 | 0.3495 | -28.0 | -2.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
