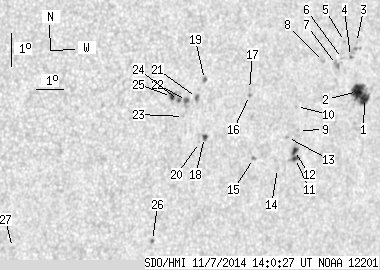

SDO HMI 2014-11-07 14:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.45 | 84.71 | 19.73 | 55.94 | -4.95 | 89.41 | 40.38 | 258.08 | 0.6613 | 172.3 | -48.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-07 14:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.73 | 26.23 | 4.64 | 18.04 | -4.88 | 92.34 | 43.31 | 259.09 | 0.6984 | 692.9 | 481.1 | |
| 11.91 | -1.00 | 8.17 | -1.00 | -4.66 | 92.04 | 43.01 | 259.33 | 0.6942 | 878.5 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.18 | -3.18 | 91.90 | 42.88 | 261.40 | 0.6894 | -238.0 | -317.3 | |
| 0.35 | 6.64 | 0.23 | 4.53 | -3.59 | 91.68 | 42.65 | 260.76 | 0.6875 | 327.0 | -176.3 | |
| 0.00 | 0.95 | 0.00 | 0.64 | -3.13 | 91.41 | 42.39 | 261.37 | 0.6832 | -526.0 | -422.8 | |
| 0.00 | 1.38 | 0.00 | 0.93 | -3.64 | 91.36 | 42.33 | 260.62 | 0.6835 | -281.0 | -210.8 | |
| 0.00 | 3.97 | 0.00 | 2.68 | -3.80 | 91.13 | 42.10 | 260.32 | 0.6809 | 412.0 | 402.2 | |
| 0.00 | 1.81 | 0.00 | 1.21 | -3.69 | 90.60 | 41.57 | 260.36 | 0.6740 | 631.0 | 543.5 | |
| 0.00 | 1.12 | 0.00 | 0.74 | -5.72 | 89.75 | 40.72 | 257.13 | 0.6682 | 651.0 | 469.4 | |
| 0.00 | 0.86 | 0.00 | 0.57 | -5.00 | 89.61 | 40.59 | 258.16 | 0.6645 | 637.0 | 525.0 | |
| 2.07 | 9.66 | 1.38 | 6.42 | -6.57 | 89.71 | 40.68 | 255.89 | 0.6701 | 674.9 | 540.5 | |
| 2.42 | -11.00 | 1.60 | -11.00 | -6.32 | 89.65 | 40.62 | 256.22 | 0.6686 | 744.8 | 999999 | |
| 0.00 | 1.47 | 0.00 | 0.97 | -5.92 | 89.33 | 40.31 | 256.71 | 0.6635 | -357.0 | -237.6 | |
| 0.00 | 1.21 | 0.00 | 0.80 | -6.84 | 89.03 | 40.00 | 255.25 | 0.6623 | 442.0 | 424.6 | |
| 0.00 | 1.55 | 0.00 | 1.01 | -6.49 | 88.06 | 39.03 | 255.42 | 0.6489 | -688.0 | -510.1 | |
| 0.00 | 1.21 | 0.00 | 0.78 | -4.59 | 87.76 | 38.73 | 258.22 | 0.6394 | 700.0 | 650.9 | |
| 0.00 | 1.12 | 0.00 | 0.72 | -4.41 | 87.75 | 38.72 | 258.49 | 0.6388 | 786.0 | 645.8 | |
| 1.47 | 3.28 | 0.93 | 2.07 | -5.78 | 86.14 | 37.11 | 255.80 | 0.6215 | -748.5 | -594.4 | |
| 0.52 | 1.98 | 0.32 | 1.24 | -4.04 | 86.03 | 37.00 | 258.53 | 0.6148 | -651.3 | -514.2 | |
| 0.00 | 0.69 | 0.00 | 0.43 | -5.93 | 85.96 | 36.93 | 255.51 | 0.6196 | -483.0 | -427.1 | |
| 0.52 | 2.85 | 0.32 | 1.78 | -4.57 | 85.76 | 36.73 | 257.60 | 0.6126 | -690.5 | -545.7 | |
| 1.04 | 4.57 | 0.64 | 2.85 | -4.64 | 85.39 | 36.36 | 257.35 | 0.6079 | -868.2 | -677.6 | |
| 0.00 | 0.86 | 0.00 | 0.54 | -5.12 | 85.31 | 36.28 | 256.55 | 0.6082 | -745.0 | -574.5 | |
| 0.69 | 3.02 | 0.43 | 1.87 | -4.63 | 85.09 | 36.06 | 257.26 | 0.6038 | -976.2 | -809.7 | |
| 1.73 | 5.35 | 1.07 | 3.31 | -4.50 | 84.83 | 35.80 | 257.38 | 0.5998 | -1005.9 | -779.3 | |
| 0.00 | 1.55 | 0.00 | 0.97 | -8.83 | 84.48 | 35.46 | 250.30 | 0.6111 | -724.0 | -570.8 | |
| 0.00 | 1.12 | 0.00 | 0.66 | -8.86 | 79.46 | 30.43 | 247.36 | 0.5444 | -792.0 | -608.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
