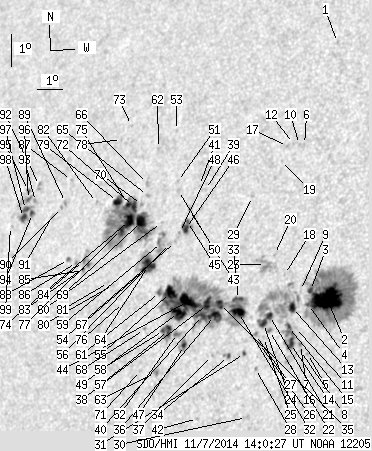

SDO HMI 2014-11-07 14:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 218.23 | 969.98 | 139.89 | 619.36 | 15.40 | 11.21 | -37.82 | 69.91 | 0.6305 | -133.6 | -27.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-07 14:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.71 | 22.92 | 14.22 | -34.81 | 57.13 | 0.6283 | -608.0 | -437.2 | |
| 44.35 | 221.47 | 26.73 | 133.35 | 15.02 | 15.68 | -33.35 | 68.76 | 0.5719 | -1140.5 | -450.7 | |
| 1.73 | -2.00 | 1.05 | -2.00 | 15.27 | 15.00 | -34.03 | 68.65 | 0.5818 | -560.1 | 999999 | |
| 1.55 | -2.00 | 0.94 | -2.00 | 14.84 | 15.00 | -34.02 | 69.35 | 0.5802 | -674.3 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.68 | 13.36 | 15.22 | -33.81 | 71.76 | 0.5722 | -748.0 | -709.3 | |
| 0.00 | 0.69 | 0.00 | 0.43 | 19.71 | 13.81 | -35.22 | 62.15 | 0.6163 | -613.0 | -561.0 | |
| 0.00 | 1.55 | 0.00 | 0.94 | 13.63 | 14.92 | -34.11 | 71.44 | 0.5772 | -814.0 | -682.4 | |
| 0.00 | 1.04 | 0.00 | 0.63 | 13.45 | 14.94 | -34.08 | 71.73 | 0.5762 | -775.0 | -634.3 | |
| 0.00 | 0.69 | 0.00 | 0.42 | 15.25 | 14.63 | -34.40 | 68.83 | 0.5867 | -481.0 | -418.6 | |
| 0.00 | 0.69 | 0.00 | 0.43 | 19.70 | 13.62 | -35.41 | 62.27 | 0.6186 | -737.0 | -621.1 | |
| 0.00 | 1.29 | 0.00 | 0.79 | 14.13 | 14.64 | -34.38 | 70.69 | 0.5825 | -690.0 | -546.2 | |
| 0.00 | 0.43 | 0.00 | 0.27 | 19.73 | 13.38 | -35.65 | 62.36 | 0.6216 | -593.0 | -503.6 | |
| 4.92 | 117.76 | 3.00 | 72.29 | 14.73 | 14.43 | -34.60 | 69.78 | 0.5875 | -739.9 | -147.7 | |
| 4.83 | -13.00 | 2.94 | -13.00 | 13.64 | 14.54 | -34.49 | 71.55 | 0.5823 | -938.4 | 999999 | |
| 1.55 | -13.00 | 0.95 | -13.00 | 14.15 | 14.38 | -34.65 | 70.76 | 0.5861 | -689.5 | 999999 | |
| 0.00 | 2.85 | 0.00 | 1.73 | 13.16 | 14.51 | -34.52 | 72.38 | 0.5812 | -732.0 | -656.6 | |
| 0.00 | 1.64 | 0.00 | 1.04 | 19.62 | 13.17 | -35.86 | 62.62 | 0.6237 | -569.0 | -442.4 | |
| 0.00 | 0.95 | 0.00 | 0.59 | 15.72 | 13.94 | -35.09 | 68.37 | 0.5975 | -437.0 | -326.8 | |
| 0.00 | 0.35 | 0.00 | 0.22 | 19.15 | 13.02 | -36.01 | 63.41 | 0.6234 | -358.0 | -411.5 | |
| 0.00 | 0.95 | 0.00 | 0.59 | 16.31 | 13.44 | -35.59 | 67.64 | 0.6062 | -438.0 | -238.5 | |
| 3.54 | -13.00 | 2.18 | -13.00 | 14.46 | 13.61 | -35.41 | 70.55 | 0.5973 | -607.9 | 999999 | |
| 0.00 | 2.24 | 0.00 | 1.38 | 14.01 | 13.69 | -35.33 | 71.26 | 0.5948 | -887.0 | -687.7 | |
| 0.00 | 15.53 | 0.00 | 9.67 | 15.99 | 13.16 | -35.87 | 68.26 | 0.6086 | 430.0 | 284.3 | |
| 3.80 | -13.00 | 2.34 | -13.00 | 14.21 | 13.43 | -35.60 | 71.03 | 0.5989 | -773.9 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.69 | 13.79 | 13.51 | -35.52 | 71.69 | 0.5966 | -647.0 | -518.5 | |
| 0.00 | 1.73 | 0.00 | 1.06 | 13.60 | 13.39 | -35.64 | 72.04 | 0.5976 | -673.0 | -576.0 | |
| 0.00 | 2.33 | 0.00 | 1.44 | 13.87 | 13.19 | -35.84 | 71.67 | 0.6010 | -720.0 | -538.4 | |
| 0.00 | 1.47 | 0.00 | 0.90 | 12.85 | 13.36 | -35.66 | 73.29 | 0.5957 | -529.0 | -429.1 | |
| 0.00 | 1.04 | 0.00 | 0.66 | 18.04 | 12.20 | -36.83 | 65.49 | 0.6287 | -393.0 | -284.3 | |
| 0.00 | 3.02 | 0.00 | 1.85 | 11.37 | 13.25 | -35.77 | 75.78 | 0.5935 | -594.0 | -504.3 | |
| 0.69 | 1.81 | 0.43 | 1.12 | 13.28 | 12.88 | -36.15 | 72.74 | 0.6035 | 631.9 | 570.2 | |
| 8.97 | 266.67 | 5.61 | 170.28 | 14.51 | 12.43 | -36.60 | 70.92 | 0.6131 | -749.5 | 147.5 | |
| 3.54 | -32.00 | 2.22 | -32.00 | 14.90 | 12.35 | -36.68 | 70.32 | 0.6153 | 904.4 | 999999 | |
| 0.95 | 3.54 | 0.59 | 2.21 | 13.17 | 12.29 | -36.74 | 73.11 | 0.6110 | 616.1 | 527.9 | |
| 5.26 | -32.00 | 3.33 | -32.00 | 14.72 | 11.65 | -37.38 | 70.85 | 0.6238 | 547.5 | 999999 | |
| 7.68 | -32.00 | 4.86 | -32.00 | 14.38 | 11.52 | -37.50 | 71.43 | 0.6244 | -757.1 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.71 | 13.18 | 11.67 | -37.35 | 73.28 | 0.6191 | 562.0 | 407.2 | |
| 6.82 | -32.00 | 4.34 | -32.00 | 14.70 | 11.19 | -37.84 | 71.04 | 0.6297 | 933.2 | 999999 | |
| 0.00 | 0.35 | 0.00 | 0.22 | 18.19 | 10.30 | -38.73 | 66.09 | 0.6525 | 814.0 | 672.8 | |
| 4.49 | -32.00 | 2.86 | -32.00 | 14.37 | 11.06 | -37.97 | 71.61 | 0.6303 | -508.5 | 999999 | |
| 0.00 | 0.52 | 0.00 | 0.34 | 18.30 | 10.03 | -39.00 | 66.03 | 0.6562 | 574.0 | 458.7 | |
| 0.00 | 1.21 | 0.00 | 0.76 | 11.27 | 11.41 | -37.62 | 76.41 | 0.6181 | -744.0 | -578.2 | |
| 0.00 | 1.90 | 0.00 | 1.24 | 17.55 | 9.82 | -39.21 | 67.21 | 0.6560 | 776.0 | 656.8 | |
| 15.62 | -32.00 | 10.04 | -32.00 | 14.76 | 10.39 | -38.64 | 71.21 | 0.6401 | 1008.0 | 999999 | |
| 1.12 | 10.96 | 0.73 | 7.16 | 17.19 | 9.83 | -39.19 | 67.75 | 0.6546 | 789.4 | 724.9 | |
| 4.31 | -45.00 | 2.82 | -45.00 | 16.97 | 9.81 | -39.22 | 68.08 | 0.6542 | 914.5 | 999999 | |
| 2.16 | 8.37 | 1.38 | 5.36 | 13.44 | 10.54 | -38.49 | 73.21 | 0.6346 | -786.2 | -613.3 | |
| 0.00 | 0.86 | 0.00 | 0.56 | 16.84 | 9.60 | -39.43 | 68.35 | 0.6564 | 630.0 | 555.7 | |
| 12.42 | -32.00 | 8.01 | -32.00 | 14.42 | 10.11 | -38.92 | 71.82 | 0.6427 | -654.4 | 999999 | |
| 0.00 | 1.81 | 0.00 | 1.20 | 18.12 | 9.23 | -39.80 | 66.62 | 0.6652 | 626.0 | 516.1 | |
| 0.00 | 0.78 | 0.00 | 0.52 | 18.39 | 9.11 | -39.92 | 66.26 | 0.6675 | 549.0 | 459.1 | |
| 0.00 | 4.66 | 0.00 | 3.00 | 13.79 | 10.20 | -38.83 | 72.77 | 0.6399 | -847.0 | -775.5 | |
| 0.00 | 0.95 | 0.00 | 0.64 | 19.95 | 8.61 | -40.42 | 64.23 | 0.6791 | 555.0 | 408.9 | |
| 0.00 | 1.29 | 0.00 | 0.85 | 16.56 | 9.51 | -39.52 | 68.80 | 0.6566 | 633.0 | 481.7 | |
| 9.92 | -32.00 | 6.45 | -32.00 | 15.01 | 9.66 | -39.36 | 71.06 | 0.6500 | 959.7 | 999999 | |
| 0.00 | 2.07 | 0.00 | 1.36 | 16.49 | 9.28 | -39.75 | 68.98 | 0.6591 | 814.0 | 672.9 | |
| 5.87 | 13.11 | 3.79 | 8.48 | 13.86 | 9.83 | -39.20 | 72.76 | 0.6448 | -712.6 | -488.1 | |
| 1.73 | -57.00 | 1.12 | -57.00 | 13.86 | 9.63 | -39.40 | 72.83 | 0.6473 | -513.8 | 999999 | |
| 0.00 | 12.68 | 0.00 | 8.37 | 16.51 | 8.95 | -40.08 | 69.07 | 0.6632 | 765.0 | 659.8 | |
| 0.00 | 0.86 | 0.00 | 0.57 | 17.12 | 8.80 | -40.23 | 68.23 | 0.6670 | 657.0 | 550.2 | |
| 1.47 | -32.00 | 0.96 | -32.00 | 14.99 | 9.23 | -39.80 | 71.23 | 0.6554 | -563.6 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.70 | 19.37 | 8.04 | -40.99 | 65.28 | 0.6836 | 528.0 | 462.2 | |
| 0.00 | 3.28 | 0.00 | 2.12 | 12.58 | 9.56 | -39.47 | 74.79 | 0.6452 | 144.0 | 79.1 | |
| 10.96 | 28.64 | 7.25 | 18.99 | 15.79 | 8.60 | -40.43 | 70.24 | 0.6654 | -666.9 | -63.0 | |
| 0.00 | 1.64 | 0.00 | 1.10 | 17.91 | 8.01 | -41.02 | 67.36 | 0.6790 | 774.0 | 635.7 | |
| 0.00 | 2.24 | 0.00 | 1.51 | 18.28 | 7.90 | -41.13 | 66.87 | 0.6815 | 657.0 | 571.8 | |
| 2.42 | -64.00 | 1.60 | -64.00 | 15.66 | 8.47 | -40.56 | 70.47 | 0.6667 | -672.2 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.45 | 13.86 | 8.87 | -40.16 | 73.04 | 0.6569 | -347.0 | -295.1 | |
| 9.23 | 152.27 | 6.20 | 103.07 | 17.11 | 7.98 | -41.05 | 68.52 | 0.6769 | 990.8 | 188.7 | |
| 0.00 | 1.38 | 0.00 | 0.93 | 17.63 | 7.84 | -41.19 | 67.82 | 0.6801 | 720.0 | 616.1 | |
| 0.00 | 1.64 | 0.00 | 1.07 | 12.62 | 8.96 | -40.07 | 74.88 | 0.6531 | -436.0 | -360.3 | |
| 4.40 | -69.00 | 2.98 | -69.00 | 17.56 | 7.52 | -41.50 | 68.03 | 0.6836 | 787.2 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.66 | 20.03 | 6.68 | -42.35 | 64.87 | 0.7014 | 522.0 | 422.2 | |
| 8.80 | -69.00 | 5.95 | -69.00 | 17.12 | 7.48 | -41.55 | 68.67 | 0.6829 | -455.2 | 999999 | |
| 2.07 | -69.00 | 1.41 | -69.00 | 17.61 | 7.30 | -41.73 | 68.03 | 0.6864 | 796.5 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.46 | 14.63 | 7.85 | -41.18 | 72.16 | 0.6715 | -265.0 | -153.9 | |
| 3.80 | -69.00 | 2.57 | -69.00 | 16.84 | 7.22 | -41.81 | 69.16 | 0.6851 | -742.4 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.78 | 19.58 | 6.40 | -42.63 | 65.59 | 0.7031 | 480.0 | 411.8 | |
| 4.75 | -69.00 | 3.25 | -69.00 | 17.68 | 6.82 | -42.21 | 68.09 | 0.6923 | 594.7 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.81 | 15.16 | 7.32 | -41.71 | 71.54 | 0.6794 | -164.0 | -252.5 | |
| 0.00 | 0.52 | 0.00 | 0.35 | 15.21 | 7.10 | -41.93 | 71.53 | 0.6822 | -382.0 | -332.8 | |
| 0.00 | 1.12 | 0.00 | 0.78 | 17.61 | 5.94 | -43.09 | 68.46 | 0.7023 | 504.0 | 476.8 | |
| 0.86 | 9.32 | 0.59 | 6.41 | 15.72 | 6.13 | -42.90 | 71.07 | 0.6951 | 638.1 | 139.1 | |
| 0.52 | -83.00 | 0.36 | -83.00 | 15.83 | 5.89 | -43.14 | 70.97 | 0.6982 | -345.5 | 999999 | |
| 0.00 | 2.16 | 0.00 | 1.48 | 15.53 | 5.97 | -43.06 | 71.38 | 0.6965 | -471.0 | -433.6 | |
| 0.00 | 1.29 | 0.00 | 0.90 | 15.76 | 5.61 | -43.42 | 71.15 | 0.7013 | -634.0 | -569.6 | |
| 0.00 | 1.29 | 0.00 | 0.92 | 18.24 | 4.66 | -44.36 | 67.99 | 0.7186 | 599.0 | 423.8 | |
| 0.69 | 1.98 | 0.48 | 1.38 | 15.84 | 5.25 | -43.78 | 71.14 | 0.7058 | -579.1 | -497.6 | |
| 0.00 | 1.73 | 0.00 | 1.22 | 17.56 | 4.62 | -44.41 | 68.93 | 0.7173 | 594.0 | 538.7 | |
| 0.00 | 1.21 | 0.00 | 0.86 | 17.40 | 4.49 | -44.54 | 69.19 | 0.7183 | 674.0 | 576.7 | |
| 0.00 | 1.81 | 0.00 | 1.29 | 17.14 | 4.18 | -44.85 | 69.63 | 0.7213 | 653.0 | 585.6 | |
| 0.00 | 3.11 | 0.00 | 2.25 | 18.02 | 3.31 | -45.71 | 68.67 | 0.7331 | 575.0 | 446.7 | |
| 0.00 | 1.81 | 0.00 | 1.31 | 17.53 | 3.30 | -45.73 | 69.33 | 0.7321 | 694.0 | 569.9 | |
| 1.90 | 24.67 | 1.37 | 17.96 | 17.16 | 3.28 | -45.75 | 69.84 | 0.7314 | 861.2 | 352.6 | |
| 0.86 | 1.98 | 0.63 | 1.45 | 17.85 | 2.88 | -46.15 | 69.02 | 0.7376 | 397.8 | 302.2 | |
| 1.55 | -94.00 | 1.13 | -94.00 | 17.58 | 2.97 | -46.06 | 69.36 | 0.7359 | 584.7 | 999999 | |
| 2.59 | -94.00 | 1.88 | -94.00 | 17.27 | 2.93 | -46.10 | 69.78 | 0.7355 | 607.0 | 999999 | |
| 3.54 | -94.00 | 2.57 | -94.00 | 17.02 | 2.92 | -46.11 | 70.11 | 0.7351 | 632.8 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.44 | 16.72 | 2.43 | -46.60 | 70.63 | 0.7399 | 398.0 | 406.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
