SDO HMI 2014-11-07 14:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.98 | 24.07 | 1.25 | 15.14 | -16.57 | 16.64 | -32.38 | 123.50 | 0.6153 | -222.4 | -282.3 | |
|
previous
or next observation for the same group /

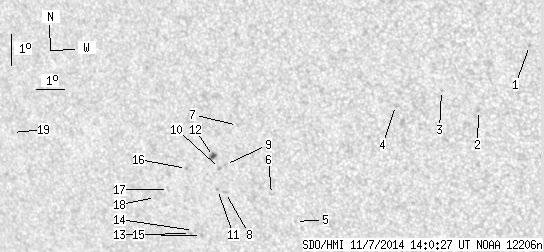

back to the solar disc SDO HMI 2014-11-07 14:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.43 | -12.39 | 27.48 | -21.55 | 127.26 | 0.4527 | 727.0 | 640.6 | |
| 0.00 | 1.12 | 0.00 | 0.64 | -14.46 | 25.58 | -23.45 | 128.52 | 0.4944 | 872.0 | 665.3 | |
| 0.00 | 0.78 | 0.00 | 0.44 | -13.87 | 24.41 | -24.62 | 126.22 | 0.5034 | 701.0 | 528.6 | |
| 0.00 | 1.29 | 0.00 | 0.75 | -14.38 | 22.78 | -26.25 | 125.37 | 0.5274 | 656.0 | 522.4 | |
| 0.00 | 0.69 | 0.00 | 0.43 | -18.17 | 18.65 | -30.37 | 127.17 | 0.6051 | 609.0 | 490.8 | |
| 0.00 | 0.95 | 0.00 | 0.59 | -17.33 | 17.94 | -31.08 | 125.40 | 0.6069 | -676.0 | -521.5 | |
| 0.00 | 0.78 | 0.00 | 0.48 | -15.19 | 17.10 | -31.93 | 121.63 | 0.6017 | 554.0 | 456.2 | |
| 0.00 | 1.98 | 0.00 | 1.26 | -17.33 | 16.25 | -32.77 | 124.05 | 0.6259 | -643.0 | -549.5 | |
| 0.00 | 1.29 | 0.00 | 0.81 | -16.44 | 16.43 | -32.60 | 122.93 | 0.6179 | -707.0 | -534.5 | |
| 0.00 | 1.55 | 0.00 | 0.98 | -16.57 | 16.18 | -32.84 | 122.93 | 0.6216 | -866.0 | -712.4 | |
| 0.00 | 0.86 | 0.00 | 0.55 | -17.24 | 15.98 | -33.05 | 123.72 | 0.6285 | -607.0 | -564.5 | |
| 1.98 | 3.71 | 1.25 | 2.34 | -16.20 | 16.03 | -32.99 | 122.29 | 0.6209 | -884.7 | -722.6 | |
| 0.00 | 1.21 | 0.00 | 0.78 | -18.75 | 15.05 | -33.98 | 125.06 | 0.6489 | -648.0 | -488.3 | |
| 0.00 | 0.69 | 0.00 | 0.45 | -18.59 | 14.78 | -34.25 | 124.67 | 0.6509 | -576.0 | -570.1 | |
| 0.00 | 1.47 | 0.00 | 0.96 | -18.70 | 14.64 | -34.39 | 124.70 | 0.6530 | -636.0 | -483.6 | |
| 0.00 | 1.29 | 0.00 | 0.83 | -16.62 | 14.95 | -34.08 | 122.09 | 0.6361 | -628.0 | -502.8 | |
| 0.00 | 1.47 | 0.00 | 0.95 | -17.31 | 14.12 | -34.91 | 122.46 | 0.6499 | -362.0 | -400.8 | |
| 0.00 | 0.78 | 0.00 | 0.51 | -17.59 | 13.56 | -35.47 | 122.45 | 0.6578 | -482.0 | -403.4 | |
| 0.00 | 1.38 | 0.00 | 0.96 | -15.75 | 8.35 | -40.68 | 116.88 | 0.7057 | -463.0 | -362.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
