SDO HMI 2014-11-07 15:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.27 | 0.00 | 6.46 | -21.46 | 77.46 | 28.98 | 226.64 | 0.6213 | 507.9 | 365.6 | |
|
previous
or next observation for the same group /

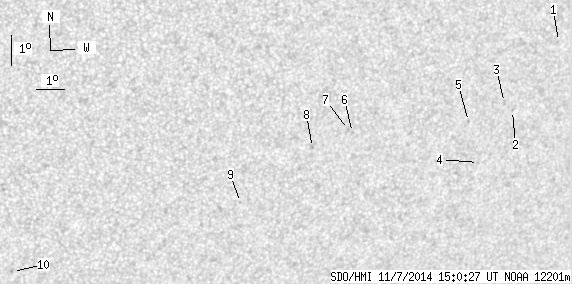

back to the solar disc SDO HMI 2014-11-07 15:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.43 | 0.00 | 0.28 | -18.15 | 84.09 | 35.62 | 236.89 | 0.6629 | 514.0 | 474.4 | |
| 0.00 | 0.43 | 0.00 | 0.28 | -20.32 | 82.85 | 34.38 | 233.17 | 0.6639 | 533.0 | 463.2 | |
| 0.00 | 1.98 | 0.00 | 1.30 | -20.05 | 82.48 | 34.00 | 233.24 | 0.6580 | 695.0 | 518.7 | |
| 0.00 | 0.86 | 0.00 | 0.57 | -21.98 | 81.98 | 33.50 | 230.39 | 0.6667 | 658.0 | 436.6 | |
| 0.00 | 1.04 | 0.00 | 0.67 | -20.62 | 81.25 | 32.77 | 231.55 | 0.6492 | 607.0 | 472.0 | |
| 0.00 | 0.78 | 0.00 | 0.48 | -20.82 | 77.00 | 28.53 | 227.58 | 0.6069 | 650.0 | 564.9 | |
| 0.00 | 1.04 | 0.00 | 0.64 | -20.72 | 76.84 | 28.36 | 227.56 | 0.6043 | 723.0 | 567.3 | |
| 0.00 | 1.21 | 0.00 | 0.74 | -21.27 | 75.65 | 27.17 | 225.68 | 0.5971 | 641.0 | 471.9 | |
| 0.00 | 0.95 | 0.00 | 0.58 | -23.01 | 73.42 | 24.95 | 221.16 | 0.5920 | 746.0 | 570.2 | |
| 0.00 | 1.55 | 0.00 | 0.92 | -25.13 | 65.82 | 17.34 | 209.37 | 0.5525 | -688.0 | -496.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
