SDO HMI 2014-11-07 15:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 215.50 | 992.31 | 137.14 | 629.23 | 15.41 | 11.19 | -37.29 | 69.68 | 0.6238 | -122.2 | -32.7 | |
|
previous
or next observation for the same group /

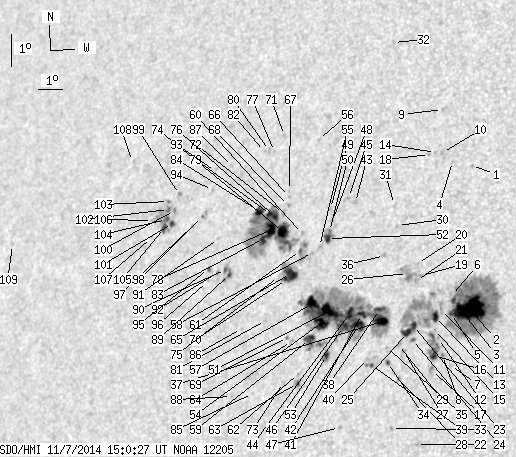

back to the solar disc SDO HMI 2014-11-07 15:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.74 | 19.39 | 14.83 | -33.65 | 61.77 | 0.5954 | -742.0 | -609.9 | |
| 44.43 | 226.88 | 26.61 | 135.75 | 15.00 | 15.68 | -32.80 | 68.52 | 0.5644 | -1150.5 | -447.5 | |
| 1.98 | -2.00 | 1.20 | -2.00 | 15.26 | 15.01 | -33.47 | 68.41 | 0.5744 | -530.2 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.64 | 19.49 | 14.08 | -34.39 | 62.04 | 0.6051 | -642.0 | -440.1 | |
| 0.26 | -2.00 | 0.16 | -2.00 | 14.86 | 15.01 | -33.47 | 69.08 | 0.5729 | -599.0 | 999999 | |
| 0.00 | 2.85 | 0.00 | 1.72 | 15.40 | 14.91 | -33.57 | 68.21 | 0.5763 | -277.0 | -265.9 | |
| 0.00 | 1.29 | 0.00 | 0.77 | 13.29 | 15.23 | -33.25 | 71.66 | 0.5643 | -827.0 | -621.1 | |
| 0.00 | 1.21 | 0.00 | 0.73 | 13.58 | 14.89 | -33.59 | 71.30 | 0.5699 | -853.0 | -755.4 | |
| 0.00 | 1.29 | 0.00 | 0.82 | 21.08 | 13.29 | -35.19 | 60.06 | 0.6228 | -607.0 | -503.1 | |
| 0.00 | 1.98 | 0.00 | 1.24 | 19.75 | 13.64 | -34.84 | 61.88 | 0.6119 | -673.0 | -573.7 | |
| 0.00 | 4.23 | 0.00 | 2.56 | 14.97 | 14.62 | -33.86 | 69.07 | 0.5785 | -662.0 | -515.8 | |
| 0.00 | 1.12 | 0.00 | 0.68 | 14.09 | 14.66 | -33.82 | 70.53 | 0.5748 | -654.0 | -540.8 | |
| 4.74 | 81.43 | 2.88 | 49.79 | 14.75 | 14.43 | -34.04 | 69.51 | 0.5801 | -751.0 | -2.1 | |
| 0.00 | 1.04 | 0.00 | 0.65 | 19.75 | 13.37 | -35.11 | 62.04 | 0.6152 | -550.0 | -468.5 | |
| 0.00 | 0.69 | 0.00 | 0.42 | 14.36 | 14.47 | -34.01 | 70.16 | 0.5783 | -495.0 | -401.0 | |
| 3.80 | 21.05 | 2.29 | 12.73 | 13.57 | 14.56 | -33.92 | 71.45 | 0.5744 | -916.8 | -694.8 | |
| 0.00 | 3.19 | 0.00 | 1.93 | 13.12 | 14.56 | -33.92 | 72.22 | 0.5729 | -587.0 | -624.4 | |
| 0.00 | 0.95 | 0.00 | 0.60 | 19.68 | 13.15 | -35.33 | 62.26 | 0.6174 | -520.0 | -467.0 | |
| 0.00 | 1.90 | 0.00 | 1.17 | 15.97 | 13.68 | -34.80 | 67.83 | 0.5947 | -406.0 | -211.4 | |
| 0.00 | 0.78 | 0.00 | 0.48 | 16.33 | 13.46 | -35.02 | 67.35 | 0.5990 | -208.0 | -163.2 | |
| 0.00 | 2.67 | 0.00 | 1.65 | 15.81 | 13.52 | -34.95 | 68.16 | 0.5961 | -503.0 | -434.1 | |
| 0.00 | 1.38 | 0.00 | 0.83 | 10.88 | 14.33 | -34.15 | 76.15 | 0.5700 | -91.0 | -108.2 | |
| 3.71 | -13.00 | 2.27 | -13.00 | 14.45 | 13.67 | -34.81 | 70.33 | 0.5893 | -670.5 | 999999 | |
| 0.69 | 2.33 | 0.42 | 1.42 | 14.03 | 13.70 | -34.77 | 71.02 | 0.5874 | -783.5 | -617.5 | |
| 5.61 | -13.00 | 3.44 | -13.00 | 14.23 | 13.48 | -35.00 | 70.76 | 0.5910 | -746.2 | 999999 | |
| 0.00 | 16.74 | 0.00 | 10.36 | 16.01 | 13.14 | -35.33 | 68.00 | 0.6018 | 472.0 | 319.3 | |
| 0.00 | 1.90 | 0.00 | 1.16 | 13.68 | 13.43 | -35.05 | 71.69 | 0.5900 | -771.0 | -612.1 | |
| 0.00 | 1.81 | 0.00 | 1.11 | 12.84 | 13.38 | -35.10 | 73.12 | 0.5881 | -629.0 | -500.3 | |
| 0.00 | 3.45 | 0.00 | 2.12 | 13.86 | 13.21 | -35.27 | 71.48 | 0.5935 | -636.0 | -505.5 | |
| 0.00 | 1.29 | 0.00 | 0.81 | 17.46 | 12.45 | -36.03 | 66.03 | 0.6164 | -498.0 | -375.5 | |
| 0.00 | 1.12 | 0.00 | 0.71 | 18.10 | 12.18 | -36.29 | 65.16 | 0.6223 | -467.0 | -340.1 | |
| 0.00 | 1.12 | 0.00 | 0.74 | 23.10 | 10.73 | -37.75 | 58.54 | 0.6625 | -447.0 | -361.7 | |
| 0.00 | 1.38 | 0.00 | 0.84 | 11.33 | 13.34 | -35.13 | 75.66 | 0.5846 | -682.0 | -568.6 | |
| 1.12 | 2.07 | 0.69 | 1.27 | 13.30 | 12.89 | -35.59 | 72.51 | 0.5960 | 678.1 | 537.5 | |
| 0.00 | 1.21 | 0.00 | 0.75 | 13.75 | 12.78 | -35.70 | 71.81 | 0.5989 | -461.0 | -245.7 | |
| 0.00 | 1.21 | 0.00 | 0.76 | 16.53 | 12.15 | -36.32 | 67.61 | 0.6164 | 756.0 | 633.2 | |
| 8.97 | 298.91 | 5.57 | 189.54 | 14.53 | 12.45 | -36.03 | 70.67 | 0.6057 | -705.3 | 108.3 | |
| 3.28 | -37.00 | 2.04 | -37.00 | 14.89 | 12.30 | -36.18 | 70.15 | 0.6088 | 866.3 | 999999 | |
| 0.69 | 3.36 | 0.43 | 2.09 | 13.19 | 12.31 | -36.17 | 72.89 | 0.6035 | 750.0 | 641.6 | |
| 0.00 | 1.38 | 0.00 | 0.86 | 13.40 | 12.12 | -36.36 | 72.62 | 0.6066 | 775.0 | 609.0 | |
| 4.31 | -37.00 | 2.71 | -37.00 | 14.71 | 11.65 | -36.83 | 70.67 | 0.6167 | 570.9 | 999999 | |
| 9.66 | -37.00 | 6.06 | -37.00 | 14.38 | 11.59 | -36.88 | 71.22 | 0.6164 | -740.6 | 999999 | |
| 0.00 | 3.11 | 0.00 | 2.00 | 18.10 | 10.65 | -37.83 | 65.84 | 0.6412 | 488.0 | 477.2 | |
| 5.87 | -37.00 | 3.70 | -37.00 | 14.73 | 11.18 | -37.30 | 70.82 | 0.6228 | 974.2 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.61 | 18.24 | 10.34 | -38.14 | 65.76 | 0.6456 | 732.0 | 663.5 | |
| 4.49 | -37.00 | 2.84 | -37.00 | 14.32 | 11.03 | -37.45 | 71.50 | 0.6236 | -530.6 | 999999 | |
| 0.00 | 1.55 | 0.00 | 0.97 | 11.29 | 11.40 | -37.08 | 76.24 | 0.6110 | -636.0 | -554.1 | |
| 0.00 | 1.04 | 0.00 | 0.67 | 17.52 | 9.88 | -38.59 | 67.03 | 0.6484 | 618.0 | 585.1 | |
| 0.00 | 1.21 | 0.00 | 0.79 | 17.88 | 9.71 | -38.77 | 66.56 | 0.6519 | 611.0 | 470.4 | |
| 0.26 | 10.52 | 0.17 | 6.82 | 17.18 | 9.85 | -38.63 | 67.55 | 0.6477 | 848.7 | 746.9 | |
| 13.63 | -37.00 | 8.70 | -37.00 | 14.76 | 10.36 | -38.12 | 71.05 | 0.6335 | 1030.3 | 999999 | |
| 4.14 | -50.00 | 2.68 | -50.00 | 16.96 | 9.82 | -38.66 | 67.88 | 0.6473 | 935.5 | 999999 | |
| 2.59 | 7.07 | 1.64 | 4.49 | 13.43 | 10.54 | -37.94 | 73.06 | 0.6274 | -835.3 | -619.9 | |
| 11.56 | -37.00 | 7.39 | -37.00 | 14.41 | 10.15 | -38.33 | 71.65 | 0.6351 | -699.4 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.39 | 16.71 | 9.56 | -38.91 | 68.36 | 0.6496 | 732.0 | 637.4 | |
| 0.00 | 1.04 | 0.00 | 0.69 | 19.97 | 8.63 | -39.84 | 63.96 | 0.6725 | 615.0 | 491.4 | |
| 10.27 | -37.00 | 6.62 | -37.00 | 14.97 | 9.68 | -38.80 | 70.94 | 0.6427 | 956.4 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.67 | 16.51 | 9.33 | -39.15 | 68.73 | 0.6518 | 773.0 | 630.1 | |
| 6.81 | -37.00 | 4.37 | -37.00 | 13.88 | 9.79 | -38.69 | 72.58 | 0.6384 | -705.0 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.85 | 17.08 | 8.79 | -39.69 | 68.10 | 0.6603 | 709.0 | 531.3 | |
| 0.86 | 13.97 | 0.57 | 9.15 | 16.56 | 8.84 | -39.64 | 68.84 | 0.6580 | 853.4 | 649.3 | |
| 0.00 | 0.86 | 0.00 | 0.55 | 12.85 | 9.55 | -38.93 | 74.24 | 0.6388 | -421.0 | -318.7 | |
| 1.04 | 2.50 | 0.66 | 1.61 | 12.55 | 9.57 | -38.91 | 74.71 | 0.6379 | 459.6 | 204.5 | |
| 0.00 | 1.81 | 0.00 | 1.17 | 13.80 | 9.09 | -39.38 | 72.91 | 0.6470 | -482.0 | -373.9 | |
| 11.21 | 24.84 | 7.36 | 16.33 | 15.84 | 8.61 | -39.87 | 69.98 | 0.6587 | -634.2 | -96.6 | |
| 0.00 | 0.95 | 0.00 | 0.63 | 18.18 | 7.96 | -40.52 | 66.79 | 0.6739 | 665.0 | 539.9 | |
| 0.00 | 0.69 | 0.00 | 0.46 | 18.37 | 7.91 | -40.57 | 66.55 | 0.6752 | 587.0 | 548.8 | |
| 0.00 | 1.29 | 0.00 | 0.86 | 17.91 | 8.00 | -40.48 | 67.17 | 0.6726 | 751.0 | 657.0 | |
| 0.00 | 1.29 | 0.00 | 0.84 | 13.91 | 8.91 | -39.57 | 72.79 | 0.6496 | -375.0 | -314.5 | |
| 2.33 | -65.00 | 1.53 | -65.00 | 15.66 | 8.49 | -39.99 | 70.30 | 0.6596 | -702.5 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.76 | 20.04 | 7.19 | -41.28 | 64.45 | 0.6894 | 595.0 | 456.8 | |
| 0.00 | 2.93 | 0.00 | 1.96 | 17.65 | 7.86 | -40.62 | 67.59 | 0.6734 | 671.0 | 581.8 | |
| 0.00 | 1.73 | 0.00 | 1.12 | 12.55 | 9.01 | -39.46 | 74.83 | 0.6451 | -567.0 | -388.5 | |
| 10.52 | 145.10 | 7.00 | 97.42 | 17.11 | 7.97 | -40.51 | 68.34 | 0.6704 | 1016.4 | 162.9 | |
| 0.00 | 0.60 | 0.00 | 0.40 | 15.73 | 8.15 | -40.33 | 70.29 | 0.6641 | -170.0 | -154.3 | |
| 3.88 | -74.00 | 2.60 | -74.00 | 17.55 | 7.52 | -40.96 | 67.86 | 0.6771 | 894.9 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.47 | 19.53 | 6.93 | -41.54 | 65.26 | 0.6906 | 344.0 | 388.8 | |
| 8.45 | -74.00 | 5.67 | -74.00 | 17.15 | 7.50 | -40.98 | 68.44 | 0.6761 | -413.9 | 999999 | |
| 2.85 | -74.00 | 1.92 | -74.00 | 17.60 | 7.34 | -41.14 | 67.84 | 0.6795 | 846.0 | 999999 | |
| 0.00 | 2.24 | 0.00 | 1.54 | 19.56 | 6.71 | -41.76 | 65.31 | 0.6931 | 678.0 | 543.6 | |
| 0.00 | 1.21 | 0.00 | 0.80 | 14.39 | 7.93 | -40.55 | 72.35 | 0.6632 | 726.0 | 596.0 | |
| 0.00 | 1.04 | 0.00 | 0.71 | 19.52 | 6.51 | -41.96 | 65.44 | 0.6953 | 558.0 | 477.3 | |
| 4.14 | -74.00 | 2.78 | -74.00 | 16.86 | 7.25 | -41.23 | 68.94 | 0.6783 | -754.5 | 999999 | |
| 4.49 | -74.00 | 3.04 | -74.00 | 17.68 | 6.86 | -41.62 | 67.90 | 0.6854 | 668.6 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.17 | 12.18 | 7.85 | -40.63 | 75.68 | 0.6593 | -547.0 | -479.7 | |
| 0.00 | 0.78 | 0.00 | 0.52 | 14.11 | 7.01 | -41.47 | 73.01 | 0.6739 | 648.0 | 522.3 | |
| 0.00 | 1.21 | 0.00 | 0.84 | 19.00 | 5.31 | -43.17 | 66.57 | 0.7074 | 497.0 | 446.4 | |
| 0.00 | 0.78 | 0.00 | 0.52 | 12.05 | 7.02 | -41.45 | 76.04 | 0.6695 | -575.0 | -500.2 | |
| 1.55 | 9.40 | 1.06 | 6.42 | 15.71 | 6.13 | -42.35 | 70.92 | 0.6885 | 609.9 | -55.3 | |
| 1.04 | -89.00 | 0.71 | -89.00 | 15.86 | 5.92 | -42.55 | 70.77 | 0.6913 | -310.6 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.66 | 16.78 | 5.38 | -43.10 | 69.62 | 0.7002 | 512.0 | 466.9 | |
| 0.00 | 1.64 | 0.00 | 1.13 | 15.75 | 5.61 | -42.86 | 71.01 | 0.6947 | -742.0 | -615.9 | |
| 0.00 | 1.90 | 0.00 | 1.34 | 18.82 | 4.63 | -43.85 | 67.04 | 0.7145 | 165.0 | 245.9 | |
| 0.00 | 1.21 | 0.00 | 0.85 | 18.26 | 4.68 | -43.80 | 67.79 | 0.7123 | 560.0 | 376.1 | |
| 0.69 | 1.81 | 0.48 | 1.25 | 15.86 | 5.21 | -43.27 | 70.97 | 0.6998 | -538.2 | -491.4 | |
| 0.00 | 0.69 | 0.00 | 0.48 | 15.46 | 5.27 | -43.21 | 71.51 | 0.6982 | -464.0 | -376.5 | |
| 0.43 | 3.19 | 0.30 | 2.24 | 17.42 | 4.50 | -43.98 | 68.99 | 0.7120 | 569.0 | 530.6 | |
| 0.00 | 1.47 | 0.00 | 1.04 | 17.10 | 4.16 | -44.31 | 69.53 | 0.7150 | 730.0 | 626.9 | |
| 0.00 | 1.90 | 0.00 | 1.36 | 18.05 | 3.29 | -45.18 | 68.49 | 0.7273 | 595.0 | 502.7 | |
| 0.00 | 1.90 | 0.00 | 1.36 | 17.55 | 3.23 | -45.25 | 69.17 | 0.7267 | 751.0 | 644.1 | |
| 2.07 | 26.22 | 1.48 | 18.92 | 17.15 | 3.27 | -45.21 | 69.70 | 0.7254 | 869.0 | 244.4 | |
| 1.12 | -101.00 | 0.81 | -101.00 | 17.57 | 2.96 | -45.52 | 69.22 | 0.7299 | 645.4 | 999999 | |
| 0.35 | 1.38 | 0.25 | 1.00 | 17.82 | 2.88 | -45.60 | 68.92 | 0.7313 | 545.5 | 408.8 | |
| 2.42 | -101.00 | 1.74 | -101.00 | 17.26 | 2.97 | -45.51 | 69.63 | 0.7290 | 647.8 | 999999 | |
| 3.19 | -101.00 | 2.30 | -101.00 | 17.02 | 2.96 | -45.52 | 69.97 | 0.7286 | 620.1 | 999999 | |
| 0.00 | 1.38 | 0.00 | 1.01 | 17.21 | 2.36 | -46.12 | 69.87 | 0.7357 | -188.0 | -150.0 | |
| 0.00 | 0.86 | 0.00 | 0.63 | 16.69 | 2.48 | -46.00 | 70.53 | 0.7332 | 493.0 | 408.1 | |
| 0.00 | 0.43 | 0.00 | 0.33 | 18.96 | 0.83 | -47.65 | 67.95 | 0.7564 | -421.0 | -426.4 | |
| 0.00 | 1.21 | 0.00 | 0.99 | 16.17 | 356.03 | -52.45 | 72.50 | 0.8007 | 457.0 | 380.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
