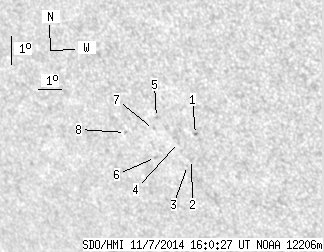

SDO HMI 2014-11-07 16:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.08 | 0.00 | 5.10 | -23.62 | 9.08 | -38.84 | 127.82 | 0.7297 | 227.1 | 161.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-07 16:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.85 | -23.32 | 10.22 | -37.70 | 128.20 | 0.7171 | -699.0 | -564.7 | |
| 0.00 | 1.64 | 0.00 | 1.18 | -24.17 | 9.76 | -38.17 | 128.91 | 0.7268 | 428.0 | 368.0 | |
| 0.00 | 0.26 | 0.00 | 0.19 | -24.38 | 9.52 | -38.41 | 128.99 | 0.7304 | 455.0 | 534.3 | |
| 0.00 | 0.95 | 0.00 | 0.68 | -23.62 | 9.42 | -38.51 | 128.03 | 0.7266 | 516.0 | 428.8 | |
| 0.00 | 0.95 | 0.00 | 0.68 | -22.82 | 8.78 | -39.14 | 126.67 | 0.7278 | 609.0 | 560.6 | |
| 0.00 | 0.69 | 0.00 | 0.51 | -24.17 | 8.25 | -39.68 | 127.93 | 0.7408 | 580.0 | 462.9 | |
| 0.00 | 0.43 | 0.00 | 0.31 | -23.23 | 8.51 | -39.41 | 126.98 | 0.7328 | 518.0 | 513.6 | |
| 0.00 | 0.95 | 0.00 | 0.70 | -23.38 | 7.27 | -40.66 | 126.41 | 0.7454 | -590.0 | -425.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
