SDO HMI 2014-11-07 17:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.16 | 0.00 | 4.54 | -24.71 | 71.33 | 23.95 | 218.11 | 0.6232 | 151.0 | 74.2 | |
|
previous
or next observation for the same group /

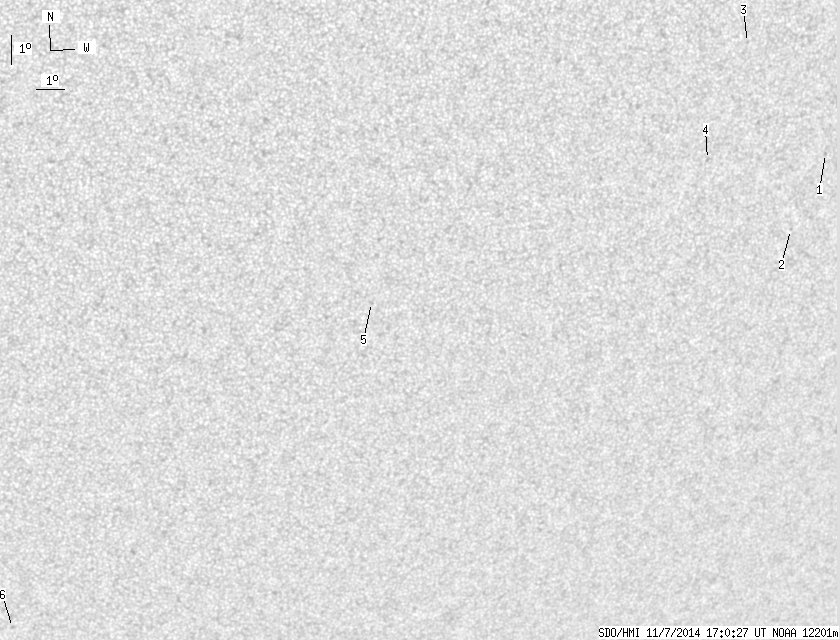

back to the solar disc SDO HMI 2014-11-07 17:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.63 | -20.66 | 81.30 | 33.92 | 232.39 | 0.6615 | 584.0 | 501.3 | |
| 0.00 | 1.04 | 0.00 | 0.69 | -23.13 | 80.61 | 33.23 | 228.77 | 0.6725 | 397.0 | 326.9 | |
| 0.00 | 0.78 | 0.00 | 0.48 | -16.96 | 77.61 | 30.24 | 234.42 | 0.5944 | 586.0 | 448.7 | |
| 0.00 | 1.29 | 0.00 | 0.81 | -20.69 | 76.89 | 29.52 | 228.68 | 0.6160 | 647.0 | 581.4 | |
| 0.00 | 1.81 | 0.00 | 1.08 | -25.12 | 65.82 | 18.44 | 210.88 | 0.5604 | -733.0 | -516.4 | |
| 0.00 | 1.29 | 0.00 | 0.85 | -36.69 | 54.55 | 7.17 | 188.79 | 0.6576 | -575.0 | -389.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
