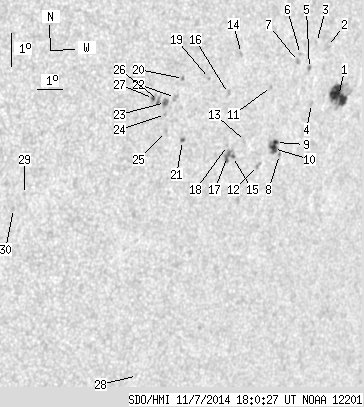

SDO HMI 2014-11-07 18:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.95 | 100.99 | 21.67 | 69.26 | -5.06 | 89.61 | 42.79 | 258.61 | 0.6918 | 230.8 | 34.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-07 18:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.06 | 35.71 | 13.67 | 25.63 | -4.74 | 92.42 | 45.60 | 259.84 | 0.7257 | 794.6 | 283.1 | |
| 0.00 | 3.45 | 0.00 | 2.44 | -3.25 | 91.85 | 45.03 | 261.77 | 0.7160 | -52.0 | -127.0 | |
| 0.00 | 0.69 | 0.00 | 0.48 | -3.11 | 91.38 | 44.56 | 261.87 | 0.7100 | -550.0 | -519.4 | |
| 0.00 | 2.07 | 0.00 | 1.46 | -4.93 | 91.29 | 44.47 | 259.31 | 0.7126 | 381.0 | 359.1 | |
| 0.00 | 2.07 | 0.00 | 1.45 | -3.87 | 91.13 | 44.31 | 260.75 | 0.7085 | 705.0 | 532.8 | |
| 0.00 | 1.03 | 0.00 | 0.72 | -3.44 | 90.73 | 43.91 | 261.27 | 0.7027 | 662.0 | 542.4 | |
| 0.00 | 2.16 | 0.00 | 1.49 | -3.64 | 90.66 | 43.84 | 260.97 | 0.7022 | 722.0 | 666.8 | |
| 0.00 | 1.55 | 0.00 | 1.08 | -6.41 | 90.10 | 43.28 | 256.93 | 0.7018 | 497.0 | 443.8 | |
| 1.64 | 9.92 | 1.13 | 6.84 | -6.04 | 89.90 | 43.08 | 257.39 | 0.6983 | 834.9 | 687.0 | |
| 4.05 | -9.00 | 2.80 | -9.00 | -6.22 | 89.84 | 43.01 | 257.12 | 0.6980 | 885.2 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.71 | -4.34 | 89.60 | 42.77 | 259.72 | 0.6905 | 605.0 | 538.2 | |
| 0.00 | 2.76 | 0.00 | 1.89 | -6.70 | 89.27 | 42.45 | 256.27 | 0.6924 | 752.0 | 553.1 | |
| 0.00 | 0.69 | 0.00 | 0.47 | -5.95 | 88.67 | 41.85 | 257.15 | 0.6830 | -387.0 | -370.5 | |
| 0.00 | 1.55 | 0.00 | 1.04 | -3.30 | 88.32 | 41.50 | 260.92 | 0.6723 | 727.0 | 569.7 | |
| 0.69 | 8.54 | 0.46 | 5.73 | -6.38 | 88.19 | 41.37 | 256.38 | 0.6782 | -508.8 | -522.2 | |
| 0.00 | 2.33 | 0.00 | 1.55 | -4.48 | 87.88 | 41.05 | 259.07 | 0.6692 | 677.0 | 620.0 | |
| 2.41 | -15.00 | 1.62 | -15.00 | -6.38 | 87.99 | 41.17 | 256.33 | 0.6756 | -745.5 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.58 | -6.04 | 87.96 | 41.14 | 256.80 | 0.6743 | -563.0 | -468.0 | |
| 0.00 | 0.95 | 0.00 | 0.62 | -3.99 | 87.10 | 40.28 | 259.58 | 0.6581 | 665.0 | 602.1 | |
| 0.00 | 1.47 | 0.00 | 0.95 | -3.95 | 86.09 | 39.26 | 259.36 | 0.6447 | -666.0 | -520.3 | |
| 0.60 | 1.72 | 0.39 | 1.12 | -5.81 | 86.18 | 39.35 | 256.56 | 0.6509 | -688.6 | -607.7 | |
| 0.00 | 3.45 | 0.00 | 2.22 | -4.51 | 85.81 | 38.99 | 258.42 | 0.6425 | -610.0 | -485.3 | |
| 1.55 | 4.66 | 1.00 | 2.99 | -4.64 | 85.44 | 38.61 | 258.10 | 0.6380 | -850.4 | -654.2 | |
| 0.00 | 0.86 | 0.00 | 0.55 | -5.00 | 85.46 | 38.64 | 257.55 | 0.6393 | -685.0 | -509.2 | |
| 0.00 | 2.07 | 0.00 | 1.33 | -5.52 | 85.50 | 38.67 | 256.78 | 0.6412 | -430.0 | -437.9 | |
| 0.00 | 2.85 | 0.00 | 1.82 | -4.57 | 85.16 | 38.34 | 258.13 | 0.6342 | -961.0 | -745.9 | |
| 0.95 | 3.28 | 0.60 | 2.09 | -4.50 | 84.97 | 38.15 | 258.17 | 0.6314 | -932.5 | -714.3 | |
| 0.00 | 0.43 | 0.00 | 0.29 | -12.94 | 85.37 | 38.55 | 245.82 | 0.6681 | 526.0 | 515.4 | |
| 0.00 | 1.29 | 0.00 | 0.78 | -7.21 | 80.40 | 33.58 | 251.97 | 0.5793 | -712.0 | -502.9 | |
| 0.00 | 1.55 | 0.00 | 0.94 | -7.62 | 80.04 | 33.22 | 251.10 | 0.5761 | -729.0 | -532.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
