groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

12205 256.82 960.77 159.69 595.70 15.35 11.29 -35.53 69.09 0.6010 -108.9 -58.1


previous   or   next   observation for the same group / back to the solar disc

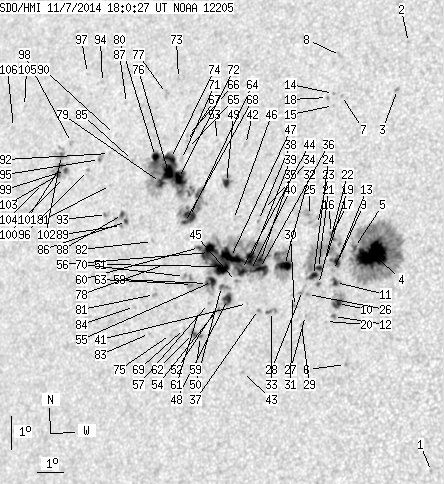

SDO HMI 2014-11-07 18:00:27 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0.00 1.29 0.00 0.73 8.56 18.53 -28.29 78.87 0.4797 -763.0 -618.9
2 0.00 1.21 0.00 0.73 21.53 15.72 -31.10 56.78 0.5766 -477.0 -328.4
3 0.00 1.90 0.00 1.14 20.06 15.65 -31.17 59.16 0.5685 -921.0 -746.4
4 45.97 234.77 27.04 138.00 14.99 15.70 -31.12 67.70 0.5418 -1255.5 -455.4
5 1.90 -4.00 1.12 -4.00 15.19 15.02 -31.80 67.72 0.5518 -553.9 999999
6 0.00 1.47 0.00 0.86 11.66 15.21 -31.61 73.94 0.5363 -775.0 -653.9
7 0.00 1.03 0.00 0.63 19.81 13.61 -33.21 60.86 0.5922 -804.0 -583.8
8 0.00 3.02 0.00 1.87 21.04 13.27 -33.55 59.15 0.6031 -384.0 -350.9
9 4.31 69.26 2.57 41.52 14.74 14.48 -32.35 68.75 0.5573 -853.8 -75.7
10 5.43 16.21 3.22 9.60 13.48 14.68 -32.15 70.88 0.5498 -950.0 -666.5
11 2.67 6.81 1.59 4.05 14.11 14.51 -32.32 69.85 0.5545 -628.1 -504.6
12 0.60 2.33 0.36 1.38 13.08 14.59 -32.23 71.62 0.5496 -758.1 -580.2
13 0.00 1.55 0.00 0.92 14.47 14.38 -32.45 69.28 0.5576 -502.0 -328.3
14 0.00 0.86 0.00 0.53 19.86 13.30 -33.52 60.97 0.5964 -605.0 -524.6
15 0.00 0.95 0.00 0.58 19.49 13.38 -33.44 61.49 0.5934 -626.0 -500.6
16 0.60 8.19 0.36 4.90 15.58 14.11 -32.71 67.49 0.5657 -560.6 -412.3
17 0.00 1.12 0.00 0.67 15.40 14.03 -32.79 67.84 0.5659 85.0 65.9
18 0.00 1.38 0.00 0.85 19.73 13.10 -33.72 61.29 0.5981 -632.0 -549.5
19 0.00 0.78 0.00 0.46 14.76 14.04 -32.79 68.93 0.5634 -237.0 -175.2
20 0.00 0.69 0.00 0.41 12.92 14.32 -32.50 72.01 0.5528 -564.0 -409.8
21 2.50 -9.00 1.50 -9.00 14.51 13.82 -33.00 69.46 0.5653 -654.7 999999
22 0.69 1.90 0.41 1.13 14.03 13.90 -32.92 70.25 0.5624 -823.0 -699.2
23 0.00 3.54 0.00 2.14 15.84 13.55 -33.27 67.34 0.5742 -644.0 -410.2
24 3.97 -9.00 2.38 -9.00 14.29 13.67 -33.15 69.90 0.5665 -841.7 999999
25 0.00 9.06 0.00 5.50 16.10 13.20 -33.62 67.07 0.5798 379.0 339.2
26 0.00 1.55 0.00 0.93 13.71 13.55 -33.27 70.95 0.5661 -841.0 -719.3
27 0.00 1.03 0.00 0.62 13.08 13.57 -33.25 72.03 0.5636 -681.0 -459.8
28 0.00 3.62 0.00 2.18 13.83 13.35 -33.48 70.83 0.5692 -663.0 -550.7
29 0.00 1.81 0.00 1.08 12.80 13.47 -33.35 72.55 0.5642 -641.0 -444.9
30 0.00 1.90 0.00 1.14 13.34 13.13 -33.69 71.76 0.5705 783.0 554.0
31 0.00 1.12 0.00 0.68 13.66 13.00 -33.82 71.25 0.5733 -175.0 -172.1
32 8.88 42.78 5.40 26.04 14.56 12.56 -34.27 69.92 0.5824 -735.4 92.8
33 0.00 4.66 0.00 2.83 13.16 12.31 -34.51 72.37 0.5811 490.0 583.1
34 0.00 0.69 0.00 0.43 16.22 11.45 -35.37 67.68 0.6031 -504.0 -428.4
35 5.00 229.07 3.08 142.63 14.68 11.64 -35.19 70.10 0.5951 762.9 119.2
36 11.90 -35.00 7.31 -35.00 14.43 11.64 -35.18 70.50 0.5942 -425.2 999999
37 0.00 1.21 0.00 0.74 13.20 11.82 -35.00 72.47 0.5879 746.0 656.7
38 0.00 1.21 0.00 0.75 15.88 11.33 -35.49 68.27 0.6034 -629.0 -401.9
39 11.13 -35.00 6.87 -35.00 14.69 11.26 -35.57 70.22 0.6001 948.0 999999
40 1.38 -35.00 0.85 -35.00 14.36 11.32 -35.50 70.74 0.5982 -380.4 999999
41 0.00 0.43 0.00 0.27 13.37 11.38 -35.44 72.35 0.5943 448.0 323.4
42 0.00 1.64 0.00 1.04 18.18 10.32 -36.50 65.13 0.6252 762.0 637.8
43 0.00 0.95 0.00 0.58 11.29 11.51 -35.31 75.77 0.5870 -711.0 -643.8
44 9.66 -35.00 5.98 -35.00 14.38 10.97 -35.85 70.84 0.6028 -141.6 999999
45 0.00 1.47 0.00 0.91 14.01 10.85 -35.97 71.48 0.6033 -864.0 -736.0
46 0.00 0.52 0.00 0.32 15.88 10.37 -36.45 68.68 0.6157 619.0 571.0
47 23.80 -35.00 14.85 -35.00 14.73 10.49 -36.33 70.46 0.6103 1117.9 999999
48 6.21 9.06 3.85 5.62 13.46 10.61 -36.21 72.46 0.6049 -922.1 -583.4
49 3.97 9.49 2.51 6.02 16.99 9.86 -36.96 67.15 0.6263 967.3 687.1
50 1.03 6.38 0.65 3.97 13.84 10.31 -36.51 71.94 0.6099 -876.0 -806.0
51 19.49 -35.00 12.20 -35.00 14.44 10.16 -36.66 71.03 0.6137 -366.6 999999
52 0.00 0.34 0.00 0.21 13.23 10.27 -36.56 72.94 0.6087 -419.0 -438.5
53 0.00 0.86 0.00 0.55 18.26 9.20 -37.62 65.51 0.6394 570.0 501.1
54 0.00 1.90 0.00 1.18 13.11 10.25 -36.57 73.14 0.6086 -629.0 -520.4
55 4.14 -35.00 2.60 -35.00 13.98 9.94 -36.88 71.85 0.6151 -829.3 999999
56 20.70 -35.00 13.05 -35.00 14.85 9.66 -37.16 70.57 0.6215 803.9 999999
57 0.00 0.60 0.00 0.38 13.31 9.91 -36.91 72.92 0.6137 -708.0 -545.4
58 1.55 -35.00 0.98 -35.00 13.91 9.76 -37.06 72.01 0.6173 -605.9 999999
59 0.43 1.29 0.27 0.81 12.31 9.78 -37.05 74.57 0.6129 722.0 624.4
60 1.72 -35.00 1.09 -35.00 14.98 9.24 -37.58 70.50 0.6272 -427.4 999999
61 0.00 1.47 0.00 0.92 13.03 9.58 -37.25 73.48 0.6173 -571.0 -334.5
62 1.47 3.19 0.92 2.00 12.39 9.49 -37.33 74.52 0.6168 671.6 467.1
63 0.00 10.95 0.00 6.93 13.86 9.19 -37.63 72.28 0.6246 -522.0 -198.9
64 9.83 171.46 6.31 111.73 15.91 8.65 -38.17 69.29 0.6377 -751.3 233.2
65 0.00 1.38 0.00 0.90 17.97 8.08 -38.75 66.41 0.6519 457.0 475.5
66 0.00 1.03 0.00 0.68 18.37 7.97 -38.85 65.87 0.6547 581.0 536.2
67 0.00 1.12 0.00 0.73 18.18 7.98 -38.84 66.14 0.6539 637.0 502.7
68 1.47 -64.00 0.94 -64.00 15.72 8.50 -38.32 69.64 0.6390 -792.9 999999
69 0.00 0.95 0.00 0.60 12.53 9.13 -37.70 74.41 0.6220 -532.0 -438.9
70 0.00 2.85 0.00 1.81 14.09 8.84 -37.98 72.03 0.6298 139.0 69.3
71 0.00 2.50 0.00 1.63 17.63 7.92 -38.90 66.98 0.6526 605.0 549.3
72 8.80 -64.00 5.72 -64.00 17.04 7.95 -38.87 67.84 0.6502 1065.5 999999
73 0.00 1.47 0.00 0.98 20.10 7.11 -39.71 63.72 0.6715 515.0 430.3
74 6.30 -64.00 4.13 -64.00 17.64 7.48 -39.34 67.13 0.6580 981.8 999999
75 0.00 0.52 0.00 0.33 12.33 8.62 -38.20 74.86 0.6282 -581.0 -544.0
76 9.66 -64.00 6.32 -64.00 17.21 7.51 -39.31 67.76 0.6562 -571.1 999999
77 0.00 3.54 0.00 2.36 19.62 6.76 -40.06 64.55 0.6737 606.0 566.0
78 0.00 1.03 0.00 0.67 14.42 7.99 -38.83 71.79 0.6416 679.0 553.1
79 4.31 -64.00 2.83 -64.00 16.89 7.26 -39.56 68.31 0.6581 -902.2 999999
80 4.74 -64.00 3.14 -64.00 17.68 6.86 -39.96 67.31 0.6656 812.2 999999
81 0.00 1.98 0.00 1.28 13.50 7.78 -39.04 73.26 0.6419 777.0 641.3
82 0.00 1.03 0.00 0.67 15.10 7.37 -39.45 70.96 0.6514 -556.0 -415.3
83 0.00 0.86 0.00 0.55 12.33 7.80 -39.02 75.07 0.6389 -638.0 -560.0
84 0.00 1.21 0.00 0.79 13.11 7.06 -39.76 74.05 0.6502 513.0 419.4
85 0.00 1.12 0.00 0.75 17.52 5.96 -40.86 67.86 0.6759 590.0 487.6
86 1.47 9.92 0.97 6.60 15.66 6.19 -40.63 70.49 0.6676 705.9 24.3
87 0.00 0.78 0.00 0.53 19.25 5.20 -41.62 65.68 0.6905 370.0 334.6
88 1.64 -86.00 1.09 -86.00 15.86 5.98 -40.85 70.26 0.6708 -127.9 999999
89 0.00 1.64 0.00 1.09 15.53 6.02 -40.81 70.73 0.6694 -352.0 -400.1
90 0.00 0.34 0.00 0.24 18.28 4.99 -41.83 67.12 0.6897 496.0 540.0
91 0.00 0.95 0.00 0.64 16.72 5.26 -41.56 69.24 0.6818 599.0 425.8
92 0.00 0.86 0.00 0.59 17.69 4.95 -41.87 67.96 0.6884 640.0 490.9
93 0.00 2.67 0.00 1.80 15.84 5.32 -41.50 70.49 0.6786 -826.0 -574.0
94 0.00 1.55 0.00 1.08 19.85 3.98 -42.84 65.29 0.7064 572.0 412.3
95 0.52 3.54 0.35 2.42 17.49 4.59 -42.24 68.36 0.6921 656.2 543.0
96 0.00 1.29 0.00 0.89 17.14 4.22 -42.60 68.97 0.6953 802.0 666.8
97 0.00 0.86 0.00 0.61 20.10 3.25 -43.58 65.21 0.7154 513.0 385.7
98 0.00 2.59 0.00 1.81 17.96 3.25 -43.57 68.13 0.7089 659.0 487.6
99 1.64 12.59 1.14 8.81 17.10 3.25 -43.57 69.32 0.7065 941.2 612.1
100 0.00 1.03 0.00 0.72 16.88 3.27 -43.55 69.61 0.7057 293.0 344.3
101 1.03 -99.00 0.72 -99.00 17.24 3.04 -43.79 69.18 0.7094 732.9 999999
102 1.55 11.90 1.09 8.37 17.55 2.95 -43.88 68.79 0.7112 661.4 303.8
103 2.76 -99.00 1.93 -99.00 16.97 2.99 -43.83 69.58 0.7092 741.2 999999
104 0.00 1.29 0.00 0.91 16.66 2.43 -44.40 70.15 0.7149 228.0 277.9
105 0.00 1.03 0.00 0.76 18.97 0.84 -45.99 67.48 0.7386 -482.0 -367.1
106 0.00 1.38 0.00 1.01 18.31 0.57 -46.25 68.43 0.7398 -48.0 -121.2


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
