SDO HMI 2014-11-07 21:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.84 | 25.96 | 1.59 | 14.49 | 5.44 | 72.56 | 27.40 | 274.83 | 0.4611 | -382.4 | -404.0 | |
|
previous
or next observation for the same group /

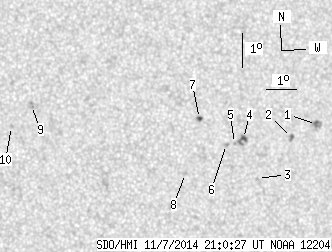

back to the solar disc SDO HMI 2014-11-07 21:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.87 | 0.00 | 3.37 | 5.61 | 75.72 | 30.55 | 274.78 | 0.5097 | -971.0 | -737.7 | |
| 0.00 | 2.67 | 0.00 | 1.52 | 5.25 | 74.83 | 29.67 | 274.13 | 0.4962 | -946.0 | -798.2 | |
| 0.00 | 1.38 | 0.00 | 0.78 | 4.07 | 73.62 | 28.45 | 271.73 | 0.4774 | -696.0 | -548.1 | |
| 1.55 | 5.69 | 0.87 | 3.19 | 5.27 | 73.20 | 28.03 | 274.29 | 0.4712 | -917.4 | -783.7 | |
| 0.00 | 0.69 | 0.00 | 0.39 | 5.13 | 72.88 | 27.72 | 274.01 | 0.4664 | -562.0 | -363.0 | |
| 0.00 | 1.64 | 0.00 | 0.91 | 5.11 | 72.61 | 27.45 | 273.98 | 0.4622 | -784.0 | -699.3 | |
| 1.29 | 2.33 | 0.72 | 1.29 | 5.91 | 71.75 | 26.59 | 275.83 | 0.4494 | 885.4 | 758.1 | |
| 0.00 | 1.29 | 0.00 | 0.71 | 4.29 | 71.21 | 26.05 | 272.22 | 0.4400 | -823.0 | -551.3 | |
| 0.00 | 3.11 | 0.00 | 1.65 | 6.45 | 66.28 | 21.12 | 278.31 | 0.3634 | 570.0 | 643.9 | |
| 0.00 | 1.29 | 0.00 | 0.68 | 5.84 | 65.62 | 20.45 | 276.80 | 0.3516 | 705.0 | 593.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
