SDO HMI 2014-11-07 21:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.95 | 11.82 | 0.57 | 7.16 | -16.22 | 16.11 | -29.05 | 125.79 | 0.5751 | -531.9 | -548.7 | |
|
previous
or next observation for the same group /

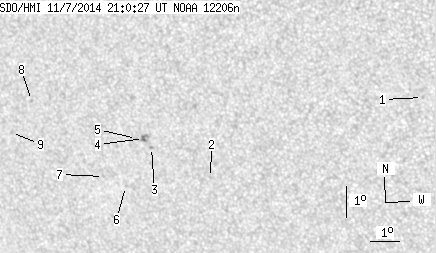

back to the solar disc SDO HMI 2014-11-07 21:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.67 | -14.63 | 25.60 | -19.56 | 133.80 | 0.4508 | 754.0 | 609.8 | |
| 0.00 | 0.78 | 0.00 | 0.46 | -17.34 | 18.11 | -27.05 | 129.05 | 0.5612 | -716.0 | -570.2 | |
| 0.00 | 1.04 | 0.00 | 0.63 | -16.45 | 16.18 | -28.98 | 125.92 | 0.5760 | -787.0 | -697.7 | |
| 0.95 | 4.74 | 0.57 | 2.87 | -16.17 | 15.94 | -29.22 | 125.30 | 0.5767 | -1035.5 | -862.7 | |
| 0.00 | 0.69 | 0.00 | 0.42 | -16.18 | 15.69 | -29.47 | 125.09 | 0.5796 | -622.0 | -553.1 | |
| 0.00 | 0.43 | 0.00 | 0.27 | -17.72 | 15.03 | -30.14 | 126.73 | 0.5989 | -711.0 | -595.0 | |
| 0.00 | 1.12 | 0.00 | 0.70 | -17.43 | 14.29 | -30.88 | 125.69 | 0.6051 | -609.0 | -482.4 | |
| 0.00 | 0.95 | 0.00 | 0.59 | -15.11 | 12.08 | -33.08 | 120.65 | 0.6148 | -671.0 | -537.7 | |
| 0.00 | 0.86 | 0.00 | 0.55 | -16.15 | 11.15 | -34.02 | 121.46 | 0.6323 | -606.0 | -530.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
