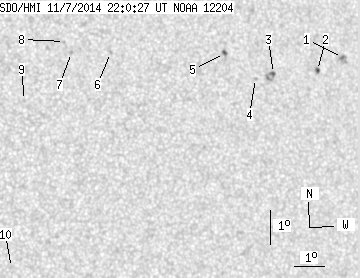

SDO HMI 2014-11-07 22:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.62 | 23.38 | 2.06 | 13.11 | 5.47 | 72.45 | 27.84 | 274.76 | 0.4679 | -58.1 | -290.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-07 22:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.60 | 5.35 | 0.35 | 3.09 | 5.65 | 75.72 | 31.11 | 274.82 | 0.5181 | -868.1 | -702.7 | |
| 1.21 | 2.59 | 0.69 | 1.48 | 5.29 | 74.83 | 30.22 | 274.18 | 0.5046 | -802.2 | -657.0 | |
| 0.86 | 6.30 | 0.49 | 3.55 | 5.25 | 73.32 | 28.71 | 274.20 | 0.4816 | -927.1 | -800.1 | |
| 0.00 | 1.21 | 0.00 | 0.68 | 5.12 | 72.70 | 28.09 | 273.97 | 0.4721 | -801.0 | -617.2 | |
| 0.95 | 3.02 | 0.53 | 1.68 | 5.90 | 71.70 | 27.09 | 275.74 | 0.4571 | 885.0 | 651.5 | |
| 0.00 | 1.29 | 0.00 | 0.70 | 6.03 | 67.94 | 23.33 | 276.68 | 0.3982 | 648.0 | 572.7 | |
| 0.00 | 1.55 | 0.00 | 0.83 | 6.06 | 66.68 | 22.07 | 277.04 | 0.3781 | 791.0 | 537.8 | |
| 0.00 | 0.69 | 0.00 | 0.37 | 6.40 | 66.47 | 21.86 | 277.98 | 0.3752 | 685.0 | 579.1 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 4.68 | 65.12 | 20.51 | 273.49 | 0.3514 | 728.0 | 507.5 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -0.28 | 64.63 | 20.02 | 259.21 | 0.3500 | 2.0 | 5.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
