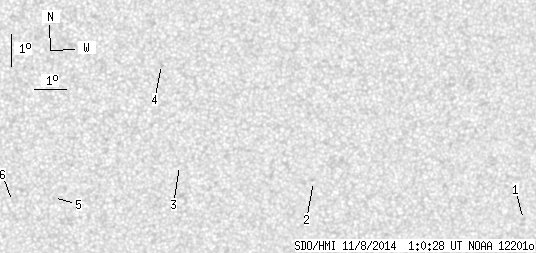

SDO HMI 2014-11-08 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.38 | 0.00 | 3.40 | -15.38 | 51.33 | 8.37 | 201.78 | 0.3644 | -223.3 | -179.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-08 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.38 | 0.00 | 0.77 | -17.41 | 61.13 | 18.17 | 219.83 | 0.4664 | 550.0 | 393.1 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -16.08 | 54.28 | 11.32 | 209.26 | 0.3877 | -532.0 | -623.3 | |
| 0.00 | 0.43 | 0.00 | 0.23 | -15.53 | 50.06 | 7.11 | 199.95 | 0.3509 | 6.0 | 0.0 | |
| 0.00 | 1.98 | 0.00 | 1.03 | -12.38 | 49.42 | 6.46 | 201.71 | 0.2984 | -739.0 | -482.7 | |
| 0.00 | 0.78 | 0.00 | 0.41 | -16.51 | 46.18 | 3.22 | 188.88 | 0.3506 | -627.0 | -527.9 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -16.63 | 44.91 | 1.95 | 185.37 | 0.3500 | 2.0 | 0.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
