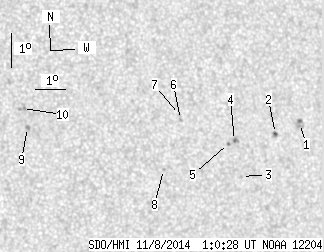

SDO HMI 2014-11-08 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.21 | 20.20 | 0.70 | 11.51 | 5.49 | 72.36 | 29.40 | 274.79 | 0.4916 | -142.0 | -211.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-08 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.78 | 0.00 | 3.40 | 5.57 | 75.73 | 32.77 | 274.59 | 0.5426 | -813.0 | -640.6 | |
| 0.86 | 1.90 | 0.50 | 1.11 | 5.30 | 74.86 | 31.90 | 274.14 | 0.5297 | -814.6 | -722.3 | |
| 0.00 | 1.12 | 0.00 | 0.65 | 4.07 | 73.61 | 30.65 | 271.78 | 0.5109 | -720.0 | -538.2 | |
| 0.35 | 2.59 | 0.20 | 1.49 | 5.14 | 73.42 | 30.46 | 273.91 | 0.5082 | -931.8 | -790.8 | |
| 0.00 | 1.21 | 0.00 | 0.69 | 5.06 | 73.21 | 30.25 | 273.76 | 0.5050 | -773.0 | -730.1 | |
| 0.00 | 1.21 | 0.00 | 0.68 | 5.83 | 71.60 | 28.65 | 275.44 | 0.4811 | 786.0 | 604.4 | |
| 0.00 | 0.78 | 0.00 | 0.44 | 5.98 | 71.58 | 28.62 | 275.76 | 0.4808 | 746.0 | 665.0 | |
| 0.00 | 0.69 | 0.00 | 0.39 | 4.36 | 70.95 | 28.00 | 272.39 | 0.4704 | -568.0 | -554.1 | |
| 0.00 | 1.81 | 0.00 | 0.98 | 5.74 | 66.50 | 23.55 | 275.94 | 0.4014 | 859.0 | 713.7 | |
| 0.00 | 3.11 | 0.00 | 1.68 | 6.31 | 66.37 | 23.41 | 277.39 | 0.4000 | 631.0 | 605.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
