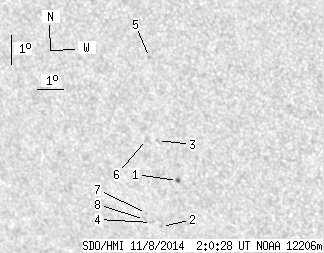

SDO HMI 2014-11-08 02:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.86 | 13.10 | 0.57 | 8.71 | -23.09 | 9.68 | -32.73 | 131.51 | 0.6668 | 518.2 | 385.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-08 02:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.86 | 1.98 | 0.57 | 1.31 | -23.37 | 10.49 | -31.91 | 132.57 | 0.6612 | -768.8 | -635.9 | |
| 0.00 | 1.12 | 0.00 | 0.76 | -24.95 | 9.42 | -32.99 | 133.57 | 0.6837 | 636.0 | 583.5 | |
| 0.00 | 1.90 | 0.00 | 1.24 | -22.07 | 10.08 | -32.33 | 130.61 | 0.6552 | 733.0 | 557.3 | |
| 0.00 | 1.81 | 0.00 | 1.23 | -24.83 | 9.06 | -33.34 | 133.14 | 0.6860 | 478.0 | 408.7 | |
| 0.00 | 1.38 | 0.00 | 0.88 | -19.35 | 10.43 | -31.98 | 127.39 | 0.6311 | 621.0 | 462.9 | |
| 0.00 | 2.67 | 0.00 | 1.76 | -22.05 | 9.66 | -32.74 | 130.25 | 0.6592 | 688.0 | 508.4 | |
| 0.00 | 0.69 | 0.00 | 0.47 | -24.53 | 8.96 | -33.45 | 132.71 | 0.6847 | 695.0 | 601.0 | |
| 0.00 | 1.55 | 0.00 | 1.06 | -24.74 | 8.82 | -33.59 | 132.84 | 0.6876 | 510.0 | 361.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
