SDO HMI 2014-11-08 03:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.39 | 0.00 | 3.44 | 13.62 | 62.73 | 20.87 | 297.69 | 0.3920 | -88.6 | 70.8 | |
|
previous
or next observation for the same group /

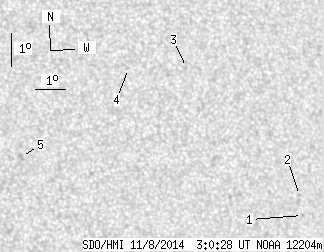

back to the solar disc SDO HMI 2014-11-08 03:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.53 | 11.27 | 67.69 | 25.83 | 288.00 | 0.4512 | -705.0 | -543.6 | |
| 0.00 | 0.78 | 0.00 | 0.43 | 11.88 | 67.65 | 25.79 | 289.31 | 0.4530 | -563.0 | -482.4 | |
| 0.00 | 1.12 | 0.00 | 0.61 | 15.84 | 64.30 | 22.44 | 300.42 | 0.4277 | -588.0 | -325.5 | |
| 0.00 | 0.95 | 0.00 | 0.51 | 15.85 | 62.37 | 20.52 | 302.54 | 0.4017 | 660.0 | 440.0 | |
| 0.00 | 2.59 | 0.00 | 1.36 | 13.26 | 58.67 | 16.81 | 301.06 | 0.3301 | 753.0 | 524.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
