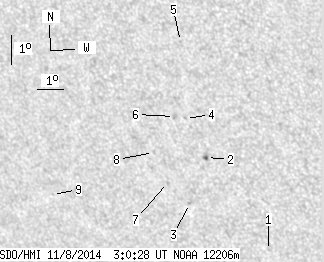

SDO HMI 2014-11-08 03:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.95 | 9.76 | 0.62 | 6.45 | -23.06 | 9.56 | -32.30 | 131.85 | 0.6625 | 363.7 | 369.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-08 03:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.43 | 0.00 | 0.29 | -26.45 | 12.03 | -29.83 | 137.96 | 0.6675 | 142.0 | 139.8 | |
| 0.95 | 1.73 | 0.62 | 1.13 | -23.36 | 10.52 | -31.34 | 133.03 | 0.6555 | -791.1 | -636.9 | |
| 0.00 | 0.95 | 0.00 | 0.64 | -24.94 | 9.42 | -32.44 | 134.00 | 0.6784 | 698.0 | 641.1 | |
| 0.00 | 0.69 | 0.00 | 0.45 | -22.09 | 10.05 | -31.80 | 131.06 | 0.6500 | 718.0 | 525.5 | |
| 0.00 | 0.78 | 0.00 | 0.49 | -19.57 | 10.46 | -31.39 | 128.14 | 0.6264 | 600.0 | 524.6 | |
| 0.00 | 2.59 | 0.00 | 1.69 | -22.04 | 9.65 | -32.21 | 130.67 | 0.6536 | 660.0 | 499.6 | |
| 0.00 | 1.04 | 0.00 | 0.70 | -24.26 | 8.77 | -33.09 | 132.66 | 0.6792 | 660.0 | 584.8 | |
| 0.00 | 1.29 | 0.00 | 0.87 | -23.27 | 8.51 | -33.35 | 131.27 | 0.6742 | 581.0 | 392.7 | |
| 0.00 | 0.26 | 0.00 | 0.19 | -24.85 | 3.95 | -37.91 | 129.83 | 0.7284 | -433.0 | -332.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
