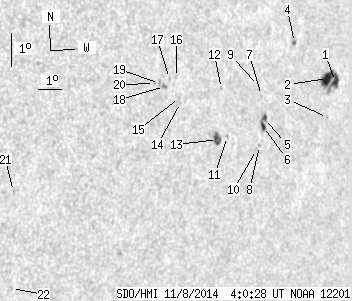

SDO HMI 2014-11-08 04:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.09 | 59.99 | 21.36 | 46.13 | -5.23 | 90.41 | 49.10 | 259.95 | 0.7658 | 168.1 | 47.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-08 04:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.87 | 26.67 | 4.78 | 21.61 | -4.83 | 93.27 | 51.96 | 261.09 | 0.7966 | 519.5 | 414.6 | |
| 11.39 | -1.00 | 9.20 | -1.00 | -4.72 | 92.87 | 51.56 | 261.15 | 0.7923 | 795.3 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.70 | -5.90 | 93.00 | 51.69 | 259.71 | 0.7956 | -211.0 | -154.3 | |
| 0.69 | 2.16 | 0.54 | 1.68 | -3.56 | 91.20 | 49.89 | 262.33 | 0.7726 | 654.1 | 454.3 | |
| 1.81 | 7.34 | 1.38 | 5.60 | -5.78 | 90.03 | 48.72 | 259.23 | 0.7634 | 721.0 | 602.9 | |
| 2.50 | -5.00 | 1.91 | -5.00 | -6.02 | 90.02 | 48.71 | 258.92 | 0.7637 | 727.4 | 999999 | |
| 0.00 | 0.52 | 0.00 | 0.39 | -5.08 | 89.82 | 48.51 | 260.10 | 0.7598 | 521.0 | 503.0 | |
| 0.00 | 1.12 | 0.00 | 0.86 | -6.59 | 89.90 | 48.59 | 258.16 | 0.7636 | 567.0 | 483.1 | |
| 0.00 | 1.12 | 0.00 | 0.85 | -4.77 | 89.66 | 48.35 | 260.46 | 0.7574 | 648.0 | 578.9 | |
| 0.00 | 0.86 | 0.00 | 0.66 | -6.70 | 89.78 | 48.47 | 257.98 | 0.7625 | 477.0 | 416.9 | |
| 0.00 | 0.95 | 0.00 | 0.70 | -6.24 | 88.43 | 47.12 | 258.25 | 0.7464 | -481.0 | -414.3 | |
| 0.00 | 0.95 | 0.00 | 0.69 | -4.78 | 88.02 | 46.71 | 260.10 | 0.7386 | -381.0 | -261.5 | |
| 4.83 | 7.59 | 3.55 | 5.58 | -6.31 | 88.00 | 46.69 | 258.05 | 0.7416 | -701.8 | -472.8 | |
| 0.00 | 0.69 | 0.00 | 0.49 | -5.12 | 86.28 | 44.97 | 259.23 | 0.7189 | -477.0 | -441.6 | |
| 0.00 | 1.12 | 0.00 | 0.80 | -4.97 | 86.23 | 44.92 | 259.43 | 0.7179 | -570.0 | -477.6 | |
| 0.00 | 0.26 | 0.00 | 0.18 | -4.36 | 86.05 | 44.74 | 260.23 | 0.7146 | -426.0 | -370.3 | |
| 0.00 | 1.04 | 0.00 | 0.73 | -4.37 | 85.76 | 44.45 | 260.14 | 0.7111 | -446.0 | -476.2 | |
| 0.00 | 2.50 | 0.00 | 1.75 | -4.60 | 85.57 | 44.26 | 259.77 | 0.7092 | -774.0 | -662.7 | |
| 0.00 | 1.73 | 0.00 | 1.20 | -4.50 | 85.35 | 44.04 | 259.86 | 0.7064 | -704.0 | -611.3 | |
| 0.00 | 0.78 | 0.00 | 0.54 | -4.50 | 85.14 | 43.83 | 259.82 | 0.7038 | -609.0 | -644.2 | |
| 0.00 | 0.95 | 0.00 | 0.61 | -7.51 | 79.80 | 38.49 | 253.75 | 0.6450 | -342.0 | -401.0 | |
| 0.00 | 0.78 | 0.00 | 0.51 | -10.48 | 80.10 | 38.79 | 249.51 | 0.6599 | -557.0 | -465.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
