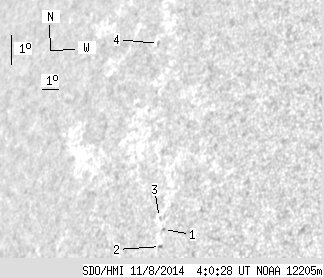

SDO HMI 2014-11-08 04:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.63 | 0.00 | 3.48 | 17.66 | 342.83 | -58.48 | 71.59 | 0.8580 | -241.5 | -171.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-08 04:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.80 | 15.78 | 344.09 | -57.22 | 73.59 | 0.8455 | -583.0 | -546.7 | |
| 0.00 | 1.21 | 0.00 | 1.11 | 15.26 | 344.15 | -57.16 | 74.20 | 0.8446 | -499.0 | -418.8 | |
| 0.00 | 0.35 | 0.00 | 0.32 | 16.13 | 343.71 | -57.60 | 73.23 | 0.8493 | -205.0 | -195.2 | |
| 0.00 | 1.21 | 0.00 | 1.25 | 21.39 | 340.64 | -60.67 | 67.58 | 0.8801 | 321.0 | 292.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
