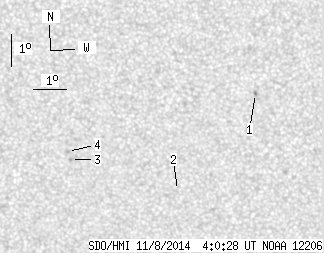

SDO HMI 2014-11-08 04:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.44 | 0.00 | 2.86 | -14.43 | 34.45 | -6.86 | 160.02 | 0.3341 | -110.5 | -59.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-08 04:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.64 | 0.00 | 0.85 | -12.83 | 37.84 | -3.47 | 168.23 | 0.2910 | 1140.0 | 902.4 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -15.88 | 35.37 | -5.94 | 163.39 | 0.3499 | -6.0 | 2.2 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -14.93 | 32.08 | -9.23 | 153.99 | 0.3551 | -824.0 | -711.8 | |
| 0.00 | 1.47 | 0.00 | 0.78 | -14.68 | 32.00 | -9.31 | 153.47 | 0.3520 | -752.0 | -619.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
