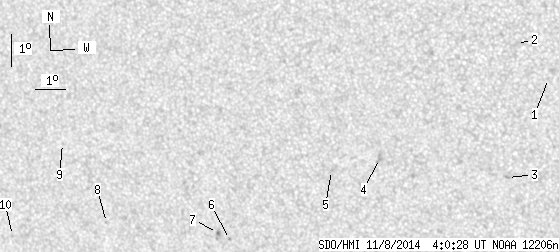

SDO HMI 2014-11-08 04:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.35 | 16.75 | 0.20 | 9.46 | -14.17 | 19.18 | -22.13 | 130.28 | 0.4747 | -287.0 | -105.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-08 04:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.26 | 0.00 | 0.14 | -11.08 | 27.16 | -14.15 | 136.43 | 0.3497 | -7.0 | 0.0 | |
| 0.00 | 2.50 | 0.00 | 1.32 | -10.02 | 26.21 | -15.10 | 132.39 | 0.3488 | 8.0 | -2.4 | |
| 0.00 | 1.47 | 0.00 | 0.79 | -14.16 | 25.68 | -15.63 | 139.28 | 0.4023 | 768.0 | 647.2 | |
| 0.00 | 4.40 | 0.00 | 2.43 | -13.65 | 21.60 | -19.71 | 131.87 | 0.4419 | 878.0 | 625.5 | |
| 0.00 | 1.21 | 0.00 | 0.67 | -14.06 | 20.00 | -21.31 | 130.38 | 0.4648 | -733.0 | -650.0 | |
| 0.00 | 1.04 | 0.00 | 0.60 | -16.32 | 16.31 | -25.00 | 129.61 | 0.5286 | -794.0 | -623.5 | |
| 0.35 | 3.37 | 0.20 | 1.97 | -16.10 | 15.93 | -25.38 | 128.88 | 0.5311 | -918.8 | -765.3 | |
| 0.00 | 0.78 | 0.00 | 0.47 | -15.90 | 12.09 | -29.22 | 124.85 | 0.5742 | -653.0 | -567.4 | |
| 0.00 | 0.60 | 0.00 | 0.36 | -13.47 | 10.90 | -30.41 | 120.14 | 0.5714 | -589.0 | -467.7 | |
| 0.00 | 1.12 | 0.00 | 0.71 | -16.43 | 8.60 | -32.71 | 122.77 | 0.6186 | -703.0 | -577.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
