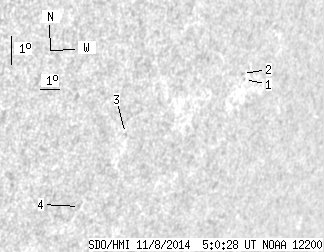

SDO HMI 2014-11-08 05:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.45 | 0.00 | 3.05 | -19.22 | 92.48 | 51.72 | 243.64 | 0.8288 | -502.5 | -417.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-08 05:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.60 | 0.00 | 0.57 | -17.77 | 95.71 | 54.95 | 246.48 | 0.8523 | -610.0 | -503.9 | |
| 0.00 | 1.04 | 0.00 | 0.97 | -17.57 | 95.51 | 54.75 | 246.65 | 0.8501 | -512.0 | -484.7 | |
| 0.00 | 0.52 | 0.00 | 0.43 | -19.19 | 90.21 | 49.44 | 242.91 | 0.8082 | -429.0 | -389.2 | |
| 0.00 | 1.29 | 0.00 | 1.08 | -21.49 | 88.96 | 48.19 | 239.72 | 0.8054 | -459.0 | -323.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
