SDO HMI 2014-11-08 05:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.84 | 58.86 | 17.60 | 45.99 | -5.20 | 90.61 | 49.85 | 260.17 | 0.7739 | 163.9 | 52.9 | |
|
previous
or next observation for the same group /

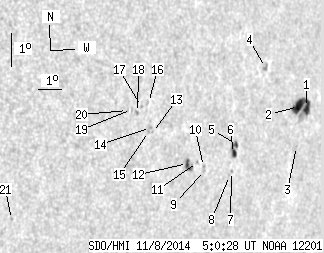

back to the solar disc SDO HMI 2014-11-08 05:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.56 | 26.49 | 5.42 | 21.78 | -4.81 | 93.31 | 52.54 | 261.23 | 0.8026 | 488.4 | 389.2 | |
| 9.67 | -1.00 | 7.91 | -1.00 | -4.76 | 92.91 | 52.15 | 261.22 | 0.7984 | 800.3 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.57 | -5.96 | 92.95 | 52.19 | 259.73 | 0.8008 | -174.0 | -181.0 | |
| 0.00 | 2.93 | 0.00 | 2.31 | -3.50 | 91.21 | 50.45 | 262.50 | 0.7786 | 665.0 | 507.9 | |
| 1.21 | 8.54 | 0.93 | 6.59 | -5.75 | 90.08 | 49.32 | 259.40 | 0.7699 | 620.3 | 581.9 | |
| 2.50 | -5.00 | 1.93 | -5.00 | -6.02 | 89.97 | 49.21 | 259.03 | 0.7693 | 691.2 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.73 | -6.56 | 89.95 | 49.19 | 258.33 | 0.7701 | 584.0 | 491.9 | |
| 0.00 | 0.78 | 0.00 | 0.60 | -6.68 | 89.87 | 49.11 | 258.17 | 0.7695 | 486.0 | 353.9 | |
| 0.00 | 0.86 | 0.00 | 0.65 | -6.47 | 88.71 | 47.95 | 258.16 | 0.7562 | -452.0 | -314.2 | |
| 0.00 | 1.04 | 0.00 | 0.78 | -6.35 | 88.65 | 47.89 | 258.31 | 0.7553 | -307.0 | -264.7 | |
| 0.00 | 0.95 | 0.00 | 0.71 | -6.21 | 88.37 | 47.60 | 258.41 | 0.7518 | -436.0 | -379.6 | |
| 1.90 | 6.47 | 1.41 | 4.81 | -6.22 | 87.93 | 47.16 | 258.29 | 0.7468 | -742.5 | -505.8 | |
| 0.00 | 0.60 | 0.00 | 0.43 | -5.21 | 86.30 | 45.54 | 259.25 | 0.7258 | -432.0 | -394.7 | |
| 0.00 | 0.95 | 0.00 | 0.68 | -5.06 | 86.20 | 45.44 | 259.44 | 0.7243 | -681.0 | -552.4 | |
| 0.00 | 1.47 | 0.00 | 1.05 | -5.17 | 86.12 | 45.36 | 259.26 | 0.7236 | -620.0 | -453.2 | |
| 0.00 | 0.95 | 0.00 | 0.68 | -4.30 | 86.05 | 45.29 | 260.44 | 0.7210 | -332.0 | -308.6 | |
| 0.00 | 0.95 | 0.00 | 0.67 | -4.41 | 85.76 | 45.00 | 260.23 | 0.7177 | -574.0 | -489.2 | |
| 0.00 | 1.73 | 0.00 | 1.22 | -4.58 | 85.61 | 44.84 | 259.95 | 0.7162 | -707.0 | -643.0 | |
| 0.00 | 0.78 | 0.00 | 0.55 | -4.48 | 85.35 | 44.58 | 260.03 | 0.7129 | -449.0 | -498.9 | |
| 0.00 | 0.78 | 0.00 | 0.55 | -4.50 | 85.18 | 44.42 | 259.96 | 0.7109 | -629.0 | -684.8 | |
| 0.00 | 0.95 | 0.00 | 0.63 | -7.59 | 80.78 | 40.01 | 254.23 | 0.6646 | -276.0 | -326.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
