SDO HMI 2014-11-08 05:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.60 | 0.00 | 8.18 | -14.79 | 19.99 | -20.77 | 132.93 | 0.4652 | -26.6 | -73.7 | |
|
previous
or next observation for the same group /

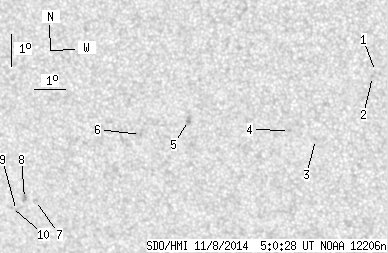

back to the solar disc SDO HMI 2014-11-08 05:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.41 | -12.03 | 27.69 | -13.08 | 140.49 | 0.3494 | 657.0 | 581.1 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -12.18 | 27.58 | -13.18 | 140.57 | 0.3524 | 785.0 | 634.5 | |
| 0.00 | 0.52 | 0.00 | 0.28 | -14.17 | 25.67 | -15.09 | 140.26 | 0.3966 | 729.0 | 516.3 | |
| 0.00 | 1.21 | 0.00 | 0.65 | -13.90 | 24.86 | -15.90 | 138.34 | 0.4019 | 681.0 | 560.4 | |
| 0.00 | 3.45 | 0.00 | 1.90 | -13.65 | 21.64 | -19.12 | 132.70 | 0.4350 | 793.0 | 647.8 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -14.12 | 20.03 | -20.73 | 131.25 | 0.4584 | -766.0 | -644.4 | |
| 0.00 | 2.16 | 0.00 | 1.25 | -16.28 | 16.28 | -24.48 | 130.12 | 0.5223 | -869.0 | -607.5 | |
| 0.00 | 2.59 | 0.00 | 1.51 | -16.23 | 15.91 | -24.85 | 129.63 | 0.5260 | -891.0 | -832.8 | |
| 0.00 | 1.04 | 0.00 | 0.61 | -16.61 | 15.58 | -25.18 | 129.86 | 0.5332 | -694.0 | -600.2 | |
| 0.00 | 0.78 | 0.00 | 0.45 | -16.52 | 15.43 | -25.34 | 129.55 | 0.5342 | -691.0 | -524.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
