SDO HMI 2014-11-08 06:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 228.76 | 1012.12 | 132.05 | 583.59 | 15.21 | 11.45 | -28.77 | 65.73 | 0.5105 | -267.3 | -69.3 | |
|
previous
or next observation for the same group /

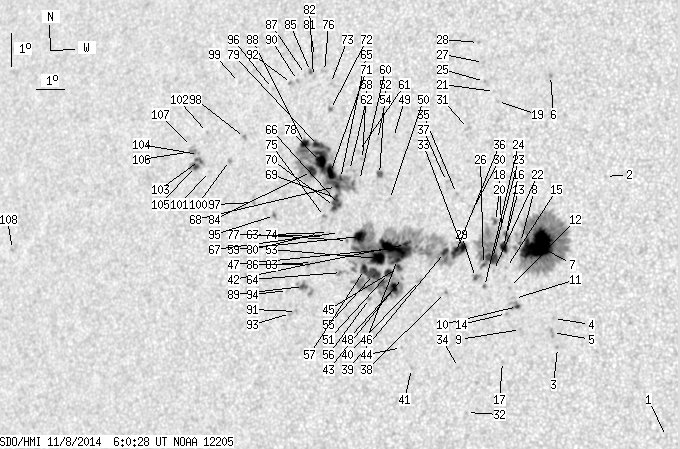

back to the solar disc SDO HMI 2014-11-08 06:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.59 | 9.27 | 20.45 | -19.77 | 73.03 | 0.3506 | -13.0 | -3.2 | |
| 0.00 | 1.21 | 0.00 | 0.66 | 17.05 | 17.75 | -22.47 | 57.06 | 0.4372 | -631.0 | -358.4 | |
| 0.00 | 1.21 | 0.00 | 0.66 | 11.85 | 16.71 | -23.51 | 69.22 | 0.4193 | -712.0 | -572.6 | |
| 0.00 | 1.47 | 0.00 | 0.80 | 12.72 | 16.50 | -23.72 | 67.42 | 0.4268 | -735.0 | -563.2 | |
| 0.00 | 3.45 | 0.00 | 1.89 | 12.30 | 16.50 | -23.71 | 68.36 | 0.4245 | -981.0 | -822.7 | |
| 0.00 | 1.29 | 0.00 | 0.73 | 20.11 | 15.42 | -24.80 | 53.71 | 0.4906 | -974.0 | -725.7 | |
| 52.38 | 320.43 | 29.03 | 178.05 | 14.91 | 15.72 | -24.50 | 63.36 | 0.4502 | -1297.8 | -410.4 | |
| 0.43 | -7.00 | 0.24 | -7.00 | 14.98 | 15.13 | -25.08 | 63.68 | 0.4588 | -699.4 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.48 | 12.36 | 15.43 | -24.79 | 68.97 | 0.4406 | -769.0 | -675.5 | |
| 1.12 | 5.95 | 0.62 | 3.30 | 13.05 | 15.26 | -24.96 | 67.60 | 0.4465 | -1062.8 | -840.7 | |
| 0.00 | 2.42 | 0.00 | 1.34 | 13.29 | 15.13 | -25.09 | 67.19 | 0.4495 | -710.0 | -603.9 | |
| 0.00 | 1.04 | 0.00 | 0.58 | 13.61 | 14.92 | -25.29 | 66.65 | 0.4542 | -920.0 | -728.8 | |
| 1.90 | -7.00 | 1.06 | -7.00 | 15.18 | 14.63 | -25.58 | 63.67 | 0.4669 | -675.2 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.67 | 12.83 | 14.91 | -25.31 | 68.31 | 0.4504 | -799.0 | -654.1 | |
| 0.00 | 1.04 | 0.00 | 0.58 | 14.21 | 14.75 | -25.46 | 65.53 | 0.4598 | -611.0 | -497.4 | |
| 5.35 | -7.00 | 2.99 | -7.00 | 14.82 | 14.58 | -25.64 | 64.45 | 0.4656 | -907.5 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.62 | 11.39 | 14.92 | -25.30 | 71.41 | 0.4438 | -880.0 | -677.3 | |
| 0.00 | 1.64 | 0.00 | 0.92 | 15.42 | 14.43 | -25.79 | 63.36 | 0.4711 | -575.0 | -309.9 | |
| 0.00 | 1.12 | 0.00 | 0.64 | 19.26 | 13.70 | -26.51 | 56.80 | 0.5056 | -823.0 | -653.8 | |
| 0.95 | 2.68 | 0.53 | 1.50 | 15.60 | 14.20 | -26.02 | 63.19 | 0.4753 | -788.7 | -624.5 | |
| 0.00 | 0.26 | 0.00 | 0.15 | 19.57 | 13.55 | -26.67 | 56.41 | 0.5098 | -673.0 | -663.0 | |
| 0.00 | 0.95 | 0.00 | 0.53 | 14.11 | 14.32 | -25.89 | 66.05 | 0.4653 | -842.0 | -678.2 | |
| 9.06 | -7.00 | 5.08 | -7.00 | 14.47 | 14.24 | -25.97 | 65.38 | 0.4684 | -945.3 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.77 | 13.62 | 14.07 | -26.14 | 67.22 | 0.4664 | -852.0 | -726.7 | |
| 0.00 | 0.69 | 0.00 | 0.40 | 19.87 | 13.14 | -27.08 | 56.24 | 0.5170 | -782.0 | -667.2 | |
| 0.86 | -7.00 | 0.48 | -7.00 | 14.29 | 13.96 | -26.26 | 65.96 | 0.4714 | -868.3 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.75 | 20.45 | 12.99 | -27.23 | 55.37 | 0.5230 | -688.0 | -520.0 | |
| 0.00 | 1.04 | 0.00 | 0.60 | 21.07 | 12.69 | -27.52 | 54.61 | 0.5311 | -522.0 | -362.3 | |
| 1.12 | 5.61 | 0.63 | 3.15 | 13.89 | 13.74 | -26.48 | 66.92 | 0.4725 | -859.8 | -622.8 | |
| 0.00 | 2.24 | 0.00 | 1.27 | 15.94 | 13.36 | -26.86 | 63.17 | 0.4888 | -562.0 | -335.0 | |
| 0.00 | 2.50 | 0.00 | 1.44 | 18.41 | 12.83 | -27.39 | 59.05 | 0.5110 | -642.0 | -461.7 | |
| 0.00 | 1.29 | 0.00 | 0.72 | 9.83 | 13.85 | -26.37 | 75.34 | 0.4542 | -699.0 | -510.6 | |
| 6.39 | 365.40 | 3.61 | 210.95 | 14.78 | 13.17 | -27.04 | 65.53 | 0.4850 | -987.9 | 32.8 | |
| 0.00 | 1.21 | 0.00 | 0.68 | 11.17 | 13.46 | -26.76 | 72.67 | 0.4647 | -668.0 | -508.8 | |
| 0.00 | 1.04 | 0.00 | 0.59 | 16.41 | 12.73 | -27.48 | 62.74 | 0.5000 | 766.0 | 646.9 | |
| 5.78 | -33.00 | 3.28 | -33.00 | 14.62 | 12.95 | -27.26 | 65.99 | 0.4872 | -936.8 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.45 | 16.77 | 12.33 | -27.89 | 62.39 | 0.5075 | 773.0 | 690.0 | |
| 0.00 | 1.04 | 0.00 | 0.59 | 13.41 | 12.76 | -27.45 | 68.49 | 0.4840 | 875.0 | 663.2 | |
| 3.54 | -33.00 | 2.01 | -33.00 | 14.61 | 12.57 | -27.64 | 66.26 | 0.4925 | -746.8 | 999999 | |
| 0.00 | 2.76 | 0.00 | 1.58 | 13.74 | 11.82 | -28.40 | 68.39 | 0.4989 | -384.0 | -224.9 | |
| 0.00 | 0.86 | 0.00 | 0.49 | 11.09 | 11.86 | -28.36 | 73.58 | 0.4879 | -706.0 | -630.0 | |
| 1.73 | -33.00 | 0.99 | -33.00 | 14.82 | 11.18 | -29.03 | 66.74 | 0.5128 | 1020.5 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.94 | 13.82 | 11.22 | -29.00 | 68.60 | 0.5077 | -684.0 | -607.2 | |
| 0.00 | 0.86 | 0.00 | 0.49 | 11.71 | 11.44 | -28.77 | 72.54 | 0.4961 | -697.0 | -572.0 | |
| 2.50 | -33.00 | 1.44 | -33.00 | 14.11 | 11.04 | -29.18 | 68.14 | 0.5116 | -964.2 | 999999 | |
| 1.90 | -33.00 | 1.09 | -33.00 | 14.35 | 10.97 | -29.25 | 67.73 | 0.5136 | -688.0 | 999999 | |
| 24.25 | -33.00 | 14.01 | -33.00 | 14.68 | 10.85 | -29.37 | 67.18 | 0.5167 | 1163.4 | 999999 | |
| 6.04 | -33.00 | 3.47 | -33.00 | 13.48 | 10.95 | -29.27 | 69.39 | 0.5100 | -1164.7 | 999999 | |
| 0.00 | 0.52 | 0.00 | 0.30 | 18.06 | 10.22 | -30.00 | 61.59 | 0.5426 | 680.0 | 637.8 | |
| 0.00 | 0.78 | 0.00 | 0.45 | 16.16 | 10.41 | -29.81 | 64.77 | 0.5300 | 760.0 | 596.8 | |
| 4.23 | -33.00 | 2.44 | -33.00 | 13.92 | 10.71 | -29.51 | 68.67 | 0.5153 | -1053.7 | 999999 | |
| 2.24 | 3.80 | 1.32 | 2.23 | 16.91 | 9.92 | -30.30 | 63.75 | 0.5403 | 967.1 | 764.4 | |
| 12.86 | -33.00 | 7.46 | -33.00 | 14.36 | 10.29 | -29.92 | 68.08 | 0.5230 | -820.5 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.82 | 17.98 | 9.65 | -30.57 | 62.10 | 0.5495 | 834.0 | 612.4 | |
| 10.36 | -33.00 | 6.01 | -33.00 | 13.88 | 10.19 | -30.03 | 69.04 | 0.5224 | -914.4 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.95 | 13.15 | 10.15 | -30.07 | 70.41 | 0.5200 | -627.0 | -477.1 | |
| 5.61 | -33.00 | 3.27 | -33.00 | 14.02 | 9.85 | -30.37 | 68.96 | 0.5277 | -725.0 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.13 | 17.35 | 9.22 | -30.99 | 63.43 | 0.5517 | 914.0 | 719.5 | |
| 9.58 | -33.00 | 5.61 | -33.00 | 15.01 | 9.56 | -30.66 | 67.32 | 0.5360 | 1109.0 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.66 | 16.71 | 9.23 | -30.98 | 64.53 | 0.5483 | 806.0 | 669.1 | |
| 0.00 | 1.81 | 0.00 | 1.08 | 17.59 | 9.03 | -31.18 | 63.14 | 0.5554 | 595.0 | 483.3 | |
| 0.00 | 3.11 | 0.00 | 1.85 | 17.00 | 8.82 | -31.40 | 64.27 | 0.5553 | 647.0 | 638.3 | |
| 0.00 | 1.38 | 0.00 | 0.81 | 14.87 | 9.11 | -31.11 | 67.80 | 0.5414 | -306.0 | -371.6 | |
| 0.00 | 5.78 | 0.00 | 3.39 | 13.90 | 9.04 | -31.17 | 69.57 | 0.5383 | -661.0 | -317.6 | |
| 1.55 | 172.43 | 0.93 | 103.60 | 16.75 | 8.53 | -31.68 | 64.87 | 0.5577 | 1085.8 | 212.0 | |
| 1.64 | -65.00 | 0.97 | -65.00 | 15.96 | 8.64 | -31.58 | 66.16 | 0.5526 | -1003.9 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.41 | 15.11 | 8.78 | -31.43 | 67.56 | 0.5469 | -628.0 | -417.9 | |
| 2.07 | -65.00 | 1.23 | -65.00 | 16.50 | 8.43 | -31.78 | 65.34 | 0.5578 | 15.1 | 999999 | |
| 3.28 | -65.00 | 1.95 | -65.00 | 16.13 | 8.50 | -31.72 | 65.93 | 0.5553 | -683.6 | 999999 | |
| 3.62 | -65.00 | 2.15 | -65.00 | 15.89 | 8.47 | -31.75 | 66.37 | 0.5546 | -843.2 | 999999 | |
| 8.80 | -65.00 | 5.27 | -65.00 | 16.92 | 8.14 | -32.08 | 64.80 | 0.5637 | 1071.1 | 999999 | |
| 0.60 | 2.59 | 0.37 | 1.57 | 18.84 | 7.74 | -32.47 | 61.86 | 0.5784 | 890.0 | 701.5 | |
| 0.00 | 0.86 | 0.00 | 0.53 | 19.64 | 7.57 | -32.65 | 60.69 | 0.5849 | 779.0 | 627.6 | |
| 0.00 | 1.38 | 0.00 | 0.82 | 15.10 | 8.39 | -31.83 | 67.79 | 0.5522 | -772.0 | -528.8 | |
| 0.00 | 1.98 | 0.00 | 1.18 | 15.58 | 8.16 | -32.06 | 67.07 | 0.5573 | -788.0 | -554.0 | |
| 0.00 | 2.85 | 0.00 | 1.75 | 20.01 | 7.26 | -32.96 | 60.31 | 0.5907 | 721.0 | 567.8 | |
| 0.00 | 0.95 | 0.00 | 0.56 | 14.97 | 8.26 | -31.95 | 68.07 | 0.5533 | -690.0 | -518.2 | |
| 10.96 | -65.00 | 6.60 | -65.00 | 17.24 | 7.71 | -32.51 | 64.50 | 0.5709 | -862.5 | 999999 | |
| 5.52 | -65.00 | 3.34 | -65.00 | 17.73 | 7.53 | -32.68 | 63.80 | 0.5755 | 840.2 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.51 | 15.05 | 8.03 | -32.19 | 68.04 | 0.5568 | -500.0 | -396.1 | |
| 0.00 | 1.98 | 0.00 | 1.23 | 20.46 | 6.77 | -33.45 | 59.91 | 0.5991 | 701.0 | 578.5 | |
| 0.00 | 2.33 | 0.00 | 1.43 | 19.84 | 6.88 | -33.34 | 60.80 | 0.5944 | 648.0 | 465.7 | |
| 0.00 | 0.78 | 0.00 | 0.46 | 14.17 | 7.96 | -32.26 | 69.61 | 0.5543 | 777.0 | 679.8 | |
| 6.65 | -65.00 | 4.01 | -65.00 | 16.93 | 7.43 | -32.78 | 65.18 | 0.5729 | -935.7 | 999999 | |
| 0.69 | 1.73 | 0.43 | 1.06 | 19.99 | 6.73 | -33.49 | 60.65 | 0.5971 | 830.8 | 735.8 | |
| 0.00 | 1.98 | 0.00 | 1.18 | 14.11 | 7.79 | -32.43 | 69.80 | 0.5564 | 838.0 | 676.2 | |
| 0.00 | 1.64 | 0.00 | 1.01 | 19.89 | 6.56 | -33.65 | 60.91 | 0.5986 | 552.0 | 497.2 | |
| 5.26 | -65.00 | 3.20 | -65.00 | 17.77 | 7.00 | -33.21 | 64.02 | 0.5825 | 841.8 | 999999 | |
| 2.24 | 11.82 | 1.33 | 7.02 | 13.44 | 7.74 | -32.47 | 70.98 | 0.5545 | 925.7 | 743.5 | |
| 0.00 | 1.81 | 0.00 | 1.12 | 19.70 | 6.31 | -33.91 | 61.36 | 0.6007 | 681.0 | 614.5 | |
| 0.00 | 1.38 | 0.00 | 0.82 | 12.68 | 7.60 | -32.61 | 72.38 | 0.5539 | -657.0 | -501.7 | |
| 0.00 | 2.42 | 0.00 | 1.50 | 19.60 | 6.10 | -34.11 | 61.63 | 0.6027 | 633.0 | 602.8 | |
| 0.00 | 2.07 | 0.00 | 1.23 | 12.61 | 7.39 | -32.82 | 72.58 | 0.5565 | -543.0 | -532.2 | |
| 0.00 | 1.21 | 0.00 | 0.72 | 13.30 | 7.18 | -33.03 | 71.46 | 0.5617 | 735.0 | 531.1 | |
| 0.52 | 2.76 | 0.31 | 1.68 | 15.55 | 6.32 | -33.89 | 68.02 | 0.5816 | 750.2 | 577.1 | |
| 0.00 | 1.21 | 0.00 | 0.75 | 19.42 | 5.42 | -34.80 | 62.29 | 0.6103 | 650.0 | 456.7 | |
| 0.00 | 1.29 | 0.00 | 0.80 | 15.91 | 5.47 | -34.75 | 67.81 | 0.5942 | -862.0 | -685.5 | |
| 0.00 | 2.16 | 0.00 | 1.35 | 17.88 | 4.71 | -35.51 | 65.04 | 0.6120 | 929.0 | 635.1 | |
| 0.00 | 0.78 | 0.00 | 0.49 | 19.56 | 4.10 | -36.11 | 62.76 | 0.6269 | 578.0 | 423.8 | |
| 0.00 | 2.24 | 0.00 | 1.40 | 17.16 | 4.29 | -35.92 | 66.36 | 0.6142 | 939.0 | 705.6 | |
| 0.00 | 0.95 | 0.00 | 0.60 | 16.80 | 3.60 | -36.62 | 67.23 | 0.6216 | 620.0 | 521.9 | |
| 0.00 | 1.29 | 0.00 | 0.82 | 17.98 | 3.25 | -36.97 | 65.56 | 0.6306 | 503.0 | 430.3 | |
| 2.16 | 11.91 | 1.37 | 7.57 | 17.12 | 3.14 | -37.08 | 66.93 | 0.6286 | 895.0 | 626.8 | |
| 0.00 | 1.38 | 0.00 | 0.88 | 17.30 | 3.06 | -37.16 | 66.68 | 0.6303 | 602.0 | 591.5 | |
| 3.02 | -103.00 | 1.92 | -103.00 | 16.93 | 3.03 | -37.19 | 67.26 | 0.6293 | 799.9 | 999999 | |
| 0.00 | 3.02 | 0.00 | 1.93 | 17.38 | 2.80 | -37.41 | 66.67 | 0.6338 | 626.0 | 575.3 | |
| 0.00 | 0.95 | 0.00 | 0.61 | 17.53 | 2.73 | -37.49 | 66.47 | 0.6353 | 421.0 | 392.6 | |
| 0.00 | 1.12 | 0.00 | 0.78 | 14.13 | 356.23 | -43.99 | 73.50 | 0.7047 | 670.0 | 602.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
