Sunspot Group 12205

group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

12205	226.28	1063.52	129.81	610.85	15.21	11.29	-28.38	65.46	0.5053	-207.3	-68.8

previous or next observation for the same group / back to the solar disc

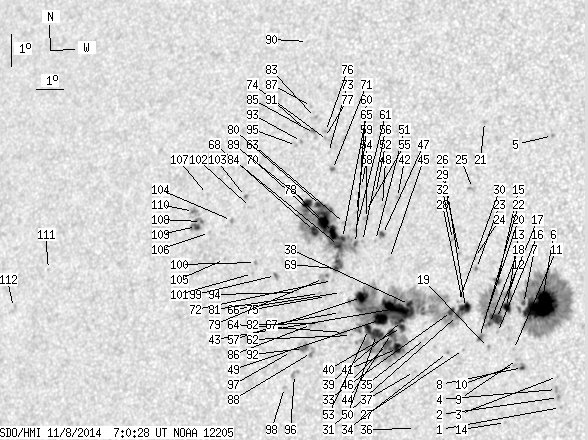

SDO HMI 2014-11-08 07:00:28 UT
No observation available

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

1	0.00	1.04	0.00	0.56	11.86	16.69	-22.98	68.81	0.4115	-820.0	-611.2
2	0.00	1.73	0.00	0.94	12.16	16.60	-23.07	68.19	0.4144	-940.0	-788.0
3	0.00	0.60	0.00	0.33	12.79	16.51	-23.16	66.83	0.4190	-749.0	-535.3
4	0.00	1.98	0.00	1.08	12.39	16.51	-23.16	67.71	0.4169	-1018.0	-847.7
5	0.00	1.04	0.00	0.59	20.12	15.39	-24.28	53.17	0.4844	-936.0	-833.6
6	52.12	239.82	28.76	132.23	14.91	15.75	-23.92	62.84	0.4423	-1306.5	-467.9
7	0.95	-6.00	0.53	-6.00	14.96	15.13	-24.54	63.27	0.4511	-658.5	999999
8	1.04	3.02	0.57	1.66	13.03	15.32	-24.35	67.20	0.4376	-1061.8	-925.5
9	0.00	1.47	0.00	0.81	13.26	15.13	-24.55	66.83	0.4417	-821.0	-690.9
10	0.00	1.38	0.00	0.76	13.08	15.04	-24.63	67.28	0.4419	-843.0	-737.9
11	0.00	1.04	0.00	0.57	13.56	14.96	-24.71	66.32	0.4456	-820.0	-659.7
12	1.90	84.66	1.06	47.29	15.25	14.59	-25.08	63.13	0.4604	-726.6	-167.8
13	5.44	-12.00	3.03	-12.00	14.82	14.58	-25.10	64.00	0.4581	-867.4	999999
14	0.00	0.78	0.00	0.43	11.36	14.91	-24.76	71.13	0.4358	-788.0	-699.1
15	1.81	3.28	1.01	1.84	15.60	14.17	-25.50	62.76	0.4683	-752.1	-554.7
16	0.00	0.95	0.00	0.53	14.06	14.36	-25.31	65.72	0.4568	-783.0	-663.5
17	10.01	-12.00	5.58	-12.00	14.48	14.28	-25.39	64.92	0.4603	-948.7	999999
18	1.55	-12.00	0.87	-12.00	14.33	14.06	-25.61	65.41	0.4626	-900.3	999999
19	0.00	1.38	0.00	0.77	13.60	14.11	-25.56	66.85	0.4580	-940.0	-771.7
20	0.52	-12.00	0.29	-12.00	14.53	13.90	-25.77	65.10	0.4660	-636.3	999999
21	0.00	1.38	0.00	0.80	20.49	12.94	-26.73	54.87	0.5173	-636.0	-558.9
22	1.12	3.37	0.63	1.88	13.90	13.77	-25.90	66.49	0.4644	-868.1	-753.3
23	0.00	1.55	0.00	0.88	15.98	13.40	-26.27	62.64	0.4812	-553.0	-454.2
24	0.00	1.73	0.00	0.98	16.31	13.28	-26.39	62.09	0.4847	460.0	329.2
25	0.00	3.19	0.00	1.83	18.42	12.88	-26.79	58.53	0.5034	-742.0	-533.4
26	7.59	409.57	4.28	235.20	14.79	13.18	-26.49	65.12	0.4774	-970.6	2.3
27	0.00	0.95	0.00	0.53	13.52	13.27	-26.40	67.59	0.4696	-588.0	-441.7
28	0.00	1.55	0.00	0.88	14.97	13.05	-26.62	64.86	0.4801	-278.0	-226.2
29	0.00	1.29	0.00	0.74	16.42	12.74	-26.93	62.30	0.4926	821.0	570.9
30	0.00	1.21	0.00	0.68	14.96	12.91	-26.76	64.96	0.4820	-293.0	-274.5
31	1.38	-26.00	0.78	-26.00	14.54	12.94	-26.73	65.78	0.4795	-937.7	999999
32	0.00	1.29	0.00	0.74	16.84	12.44	-27.23	61.75	0.4993	902.0	756.3
33	3.37	-26.00	1.90	-26.00	14.65	12.71	-26.96	65.71	0.4832	-758.2	999999
34	0.00	1.04	0.00	0.58	13.41	12.73	-26.94	68.15	0.4767	874.0	663.7
35	0.00	0.95	0.00	0.54	13.82	11.93	-27.75	67.85	0.4901	-721.0	-479.8
36	0.00	0.78	0.00	0.44	11.10	11.89	-27.78	73.29	0.4795	-804.0	-638.6
37	0.00	0.86	0.00	0.49	12.81	11.67	-28.00	69.97	0.4893	787.0	594.1
38	2.59	-26.00	1.48	-26.00	14.83	11.23	-28.44	66.35	0.5046	1018.9	999999
39	2.07	-26.00	1.19	-26.00	14.34	11.06	-28.61	67.38	0.5047	-544.3	999999
40	3.11	-26.00	1.78	-26.00	14.12	11.05	-28.62	67.78	0.5038	-961.4	999999
41	6.39	-26.00	3.65	-26.00	13.49	11.00	-28.68	69.03	0.5017	-1179.4	999999
42	0.00	1.38	0.00	0.81	18.07	10.28	-29.39	61.14	0.5349	797.0	565.1
43	21.57	-26.00	12.41	-26.00	14.69	10.80	-28.88	66.87	0.5100	1199.5	999999
44	4.23	-26.00	2.43	-26.00	13.93	10.73	-28.94	68.33	0.5075	-1069.1	999999
45	0.00	0.95	0.00	0.55	16.20	10.32	-29.35	64.40	0.5241	781.0	682.4
46	4.49	-26.00	2.58	-26.00	13.60	10.60	-29.07	69.04	0.5078	-941.9	999999
47	1.55	3.19	0.91	1.87	16.92	9.95	-29.72	63.36	0.5328	975.1	822.1
48	0.00	1.12	0.00	0.66	17.81	9.79	-29.88	61.92	0.5397	700.0	609.0
49	12.00	-26.00	6.92	-26.00	14.34	10.28	-29.39	67.81	0.5155	-899.4	999999
50	9.49	-26.00	5.47	-26.00	13.89	10.21	-29.46	68.71	0.5146	-941.0	999999
51	0.00	0.95	0.00	0.56	16.73	9.73	-29.94	63.83	0.5347	803.0	631.3
52	0.00	1.21	0.00	0.71	18.17	9.47	-30.20	61.52	0.5459	624.0	530.9
53	5.61	-26.00	3.25	-26.00	14.03	9.90	-29.77	68.61	0.5194	-738.5	999999
54	0.00	2.50	0.00	1.48	17.39	9.29	-30.38	62.97	0.5440	928.0	804.4
55	0.00	0.95	0.00	0.56	17.61	9.21	-30.46	62.65	0.5461	679.0	549.5
56	0.00	0.95	0.00	0.56	16.69	9.27	-30.40	64.20	0.5406	885.0	669.5
57	10.10	-26.00	5.88	-26.00	14.99	9.51	-30.16	67.07	0.5290	1064.7	999999
58	0.00	1.04	0.00	0.61	18.37	8.92	-30.75	61.55	0.5541	654.0	500.2
59	0.00	1.55	0.00	0.92	17.60	8.89	-30.78	62.87	0.5503	673.0	567.6
60	1.04	176.05	0.61	105.17	16.62	9.03	-30.64	64.46	0.5434	984.4	120.4
61	0.00	2.07	0.00	1.22	17.02	8.96	-30.71	63.82	0.5463	842.0	766.5
62	0.00	0.95	0.00	0.55	13.83	9.33	-30.34	69.27	0.5265	-432.0	-336.2
63	0.00	2.07	0.00	1.23	17.22	8.52	-31.15	63.74	0.5531	635.0	532.3
64	0.00	4.83	0.00	2.82	13.91	9.03	-30.64	69.27	0.5310	-604.0	-245.9
65	2.68	-60.00	1.59	-60.00	16.76	8.53	-31.14	64.52	0.5506	1106.0	999999
66	0.00	0.69	0.00	0.41	15.12	8.78	-30.89	67.24	0.5396	-649.0	-448.0
67	0.00	1.29	0.00	0.76	14.51	8.84	-30.83	68.29	0.5362	-511.0	-413.7
68	3.02	-60.00	1.79	-60.00	16.54	8.43	-31.24	64.96	0.5510	65.3	999999
69	1.81	-60.00	1.07	-60.00	15.84	8.44	-31.23	66.16	0.5474	-880.1	999999
70	8.20	-60.00	4.88	-60.00	16.93	8.17	-31.50	64.44	0.5562	1095.7	999999
71	0.60	2.07	0.36	1.25	18.86	7.75	-31.92	61.49	0.5716	889.7	703.2
72	0.00	1.04	0.00	0.61	15.47	8.40	-31.28	66.83	0.5464	-804.0	-553.2
73	0.00	0.95	0.00	0.57	19.37	7.49	-32.18	60.82	0.5776	732.0	558.3
74	0.00	1.04	0.00	0.63	19.74	7.37	-32.30	60.30	0.5812	638.0	561.9
75	0.00	2.24	0.00	1.32	14.98	8.26	-31.41	67.76	0.5461	-587.0	-587.2
76	0.00	0.86	0.00	0.53	20.02	7.24	-32.43	59.95	0.5844	771.0	699.1
77	0.00	0.86	0.00	0.53	19.83	7.24	-32.43	60.25	0.5833	755.0	601.8
78	13.64	-60.00	8.16	-60.00	17.25	7.75	-31.92	64.14	0.5634	-670.2	999999
79	0.00	6.73	0.00	3.99	15.52	8.06	-31.61	66.92	0.5511	-471.0	-367.0
80	4.31	-60.00	2.59	-60.00	17.74	7.54	-32.13	63.45	0.5685	831.6	999999
81	0.00	1.29	0.00	0.77	15.06	7.99	-31.68	67.75	0.5500	-662.0	-519.4
82	0.00	0.95	0.00	0.56	14.16	8.14	-31.53	69.28	0.5443	794.0	704.2
83	0.00	1.29	0.00	0.79	20.44	6.76	-32.91	59.60	0.5926	726.0	590.1
84	5.52	-60.00	3.31	-60.00	16.94	7.48	-32.19	64.82	0.5654	-956.2	999999
85	0.00	4.23	0.00	2.59	19.94	6.84	-32.83	60.32	0.5888	852.0	685.1
86	0.00	3.19	0.00	1.89	14.12	7.86	-31.82	69.48	0.5481	793.0	711.0
87	0.00	1.12	0.00	0.69	20.77	6.53	-33.14	59.22	0.5973	543.0	388.1
88	0.00	4.83	0.00	2.85	13.28	7.98	-31.69	70.92	0.5431	884.0	730.6
89	5.61	-60.00	3.39	-60.00	17.79	7.05	-32.62	63.66	0.5750	820.2	999999
90	0.00	0.60	0.00	0.38	22.79	5.84	-33.83	56.62	0.6170	553.0	415.0
91	0.00	1.21	0.00	0.74	20.05	6.47	-33.20	60.37	0.5939	496.0	418.0
92	2.93	6.39	1.73	3.78	13.39	7.68	-31.99	70.86	0.5477	894.2	674.4
93	0.00	1.38	0.00	0.85	19.68	6.41	-33.26	60.99	0.5927	737.0	620.6
94	0.00	1.21	0.00	0.72	15.07	7.19	-32.48	68.15	0.5609	-294.0	-350.4
95	0.00	1.29	0.00	0.80	19.55	6.25	-33.42	61.29	0.5940	689.0	588.7
96	0.00	4.40	0.00	2.60	12.60	7.47	-32.20	72.36	0.5479	-531.0	-575.5
97	0.00	1.73	0.00	1.02	13.28	7.26	-32.41	71.22	0.5532	330.0	346.7
98	0.00	1.47	0.00	0.87	12.19	7.16	-32.51	73.19	0.5509	-669.0	-554.1
99	0.52	2.93	0.31	1.77	15.56	6.30	-33.37	67.75	0.5748	822.8	569.7
100	0.00	1.47	0.00	0.90	15.93	5.48	-34.19	67.52	0.5870	-841.0	-686.6
101	0.00	1.04	0.00	0.63	15.59	5.44	-34.24	68.10	0.5863	-577.0	-429.2
102	0.00	1.55	0.00	0.96	17.59	4.95	-34.72	65.09	0.6009	685.0	506.1
103	0.00	1.81	0.00	1.13	17.92	4.69	-34.98	64.70	0.6056	836.0	654.8
104	0.00	1.81	0.00	1.13	17.17	4.32	-35.35	66.06	0.6071	854.0	724.3
105	0.00	0.60	0.00	0.37	15.98	4.30	-35.37	67.97	0.6025	-479.0	-418.9
106	0.00	1.04	0.00	0.65	16.78	3.56	-36.11	67.03	0.6151	666.0	594.1
107	0.00	0.86	0.00	0.55	17.93	3.22	-36.45	65.39	0.6240	591.0	452.9
108	0.52	10.96	0.33	6.92	17.10	3.18	-36.49	66.69	0.6212	995.2	672.4
109	2.93	-108.00	1.85	-108.00	16.94	3.02	-36.65	67.00	0.6226	826.2	999999
110	0.95	6.21	0.60	3.94	17.40	2.80	-36.87	66.40	0.6271	609.5	555.9
111	0.00	0.78	0.00	0.53	15.42	357.44	-42.23	71.23	0.6867	474.0	419.3
112	0.00	1.47	0.00	1.01	14.21	356.26	-43.41	73.25	0.6980	427.0	550.4

	Proj. U	- Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	- Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	- Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	- Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	- Heliographic latitude B; positive: North, negative: South
	L	- Heliographic longitude L
	LCM	- Longitudinal distance from the Sun's central meridian
	Pos. angle	- Position angle
	r	- Distance from the centre of Sun's disc in terms of Sun's radius
	MU	- Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	- Mean magnetic field within the penumbra contour averaged the pixel values with sign.
