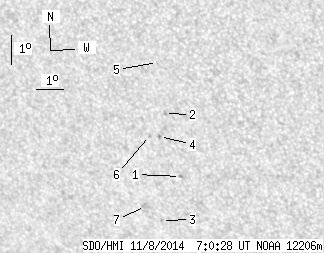

SDO HMI 2014-11-08 07:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.15 | 0.00 | 5.89 | -23.21 | 9.51 | -30.17 | 133.82 | 0.6426 | 445.1 | 442.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-08 07:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.83 | -23.39 | 10.39 | -29.28 | 134.86 | 0.6357 | -836.0 | -652.5 | |
| 0.00 | 0.78 | 0.00 | 0.49 | -21.31 | 10.28 | -29.39 | 132.17 | 0.6191 | 735.0 | 613.1 | |
| 0.00 | 0.69 | 0.00 | 0.45 | -24.90 | 9.28 | -30.39 | 135.67 | 0.6589 | 609.0 | 518.6 | |
| 0.00 | 1.12 | 0.00 | 0.71 | -22.08 | 9.93 | -29.75 | 132.82 | 0.6291 | 783.0 | 710.1 | |
| 0.00 | 0.52 | 0.00 | 0.32 | -19.65 | 10.38 | -29.29 | 130.07 | 0.6043 | 411.0 | 426.5 | |
| 0.00 | 1.21 | 0.00 | 0.77 | -22.06 | 9.56 | -30.11 | 132.46 | 0.6326 | 668.0 | 538.3 | |
| 0.00 | 3.54 | 0.00 | 2.32 | -24.44 | 8.80 | -30.87 | 134.71 | 0.6596 | 746.0 | 671.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
