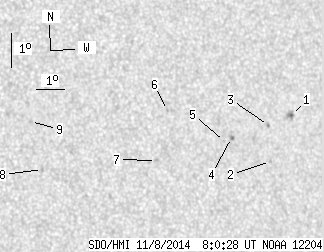

SDO HMI 2014-11-08 08:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.69 | 14.93 | 0.43 | 8.89 | 5.07 | 72.90 | 33.78 | 273.70 | 0.5562 | -279.4 | -322.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-08 08:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.69 | 5.09 | 0.43 | 3.14 | 5.50 | 75.90 | 36.78 | 274.35 | 0.5999 | -797.8 | -618.8 | |
| 0.00 | 0.78 | 0.00 | 0.47 | 4.16 | 75.04 | 35.91 | 272.10 | 0.5876 | -537.0 | -480.0 | |
| 0.00 | 1.21 | 0.00 | 0.74 | 5.23 | 75.03 | 35.90 | 273.93 | 0.5876 | -715.0 | -595.3 | |
| 0.00 | 1.90 | 0.00 | 1.14 | 4.93 | 73.66 | 34.53 | 273.44 | 0.5680 | -880.0 | -814.1 | |
| 0.00 | 0.43 | 0.00 | 0.26 | 4.82 | 73.40 | 34.27 | 273.25 | 0.5642 | -761.0 | -655.8 | |
| 0.00 | 0.78 | 0.00 | 0.45 | 5.81 | 71.42 | 32.29 | 275.16 | 0.5358 | 488.0 | 427.9 | |
| 0.00 | 1.64 | 0.00 | 0.96 | 4.34 | 70.95 | 31.82 | 272.40 | 0.5283 | -673.0 | -509.5 | |
| 0.00 | 1.81 | 0.00 | 1.01 | 4.20 | 67.02 | 27.89 | 272.14 | 0.4688 | 752.0 | 536.0 | |
| 0.00 | 1.29 | 0.00 | 0.72 | 5.64 | 66.68 | 27.56 | 275.25 | 0.4642 | 832.0 | 641.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
