SDO HMI 2014-11-08 08:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 220.99 | 1107.65 | 126.39 | 632.67 | 15.21 | 11.36 | -27.77 | 65.03 | 0.4968 | -209.2 | -92.4 | |
|
previous
or next observation for the same group /

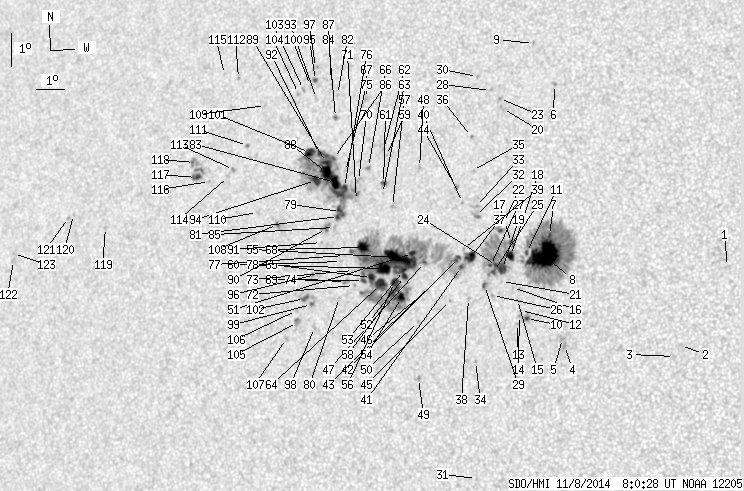

back to the solar disc SDO HMI 2014-11-08 08:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.68 | 0.00 | 1.41 | 14.68 | 21.77 | -17.36 | 56.01 | 0.3496 | 5.0 | 0.9 | |
| 0.00 | 1.81 | 0.00 | 0.96 | 12.27 | 20.44 | -18.68 | 63.85 | 0.3503 | -15.0 | 4.5 | |
| 0.00 | 1.98 | 0.00 | 1.05 | 11.94 | 20.27 | -18.85 | 64.92 | 0.3506 | -7.0 | -4.7 | |
| 0.00 | 2.93 | 0.00 | 1.59 | 12.19 | 16.68 | -22.45 | 67.61 | 0.4054 | -898.0 | -789.2 | |
| 0.00 | 2.68 | 0.00 | 1.45 | 12.40 | 16.59 | -22.53 | 67.19 | 0.4077 | -992.0 | -846.9 | |
| 0.00 | 1.21 | 0.00 | 0.68 | 20.12 | 15.37 | -23.76 | 52.61 | 0.4781 | -899.0 | -761.2 | |
| 1.38 | 243.95 | 0.76 | 133.94 | 15.50 | 15.84 | -23.28 | 61.04 | 0.4372 | -766.0 | -486.4 | |
| 47.12 | -7.00 | 25.89 | -7.00 | 14.89 | 15.71 | -23.42 | 62.44 | 0.4351 | -1295.5 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.79 | 21.38 | 14.42 | -24.70 | 51.42 | 0.4998 | -680.0 | -495.0 | |
| 1.04 | 3.45 | 0.57 | 1.89 | 12.98 | 15.35 | -23.78 | 66.87 | 0.4291 | -1076.7 | -906.5 | |
| 1.04 | -7.00 | 0.57 | -7.00 | 14.97 | 15.13 | -24.00 | 62.79 | 0.4436 | -682.7 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.43 | 13.21 | 15.12 | -24.00 | 66.53 | 0.4336 | -857.0 | -691.4 | |
| 0.00 | 1.29 | 0.00 | 0.71 | 13.06 | 15.10 | -24.02 | 66.87 | 0.4330 | -889.0 | -748.7 | |
| 0.00 | 1.21 | 0.00 | 0.66 | 12.82 | 15.06 | -24.06 | 67.43 | 0.4324 | -805.0 | -535.7 | |
| 0.00 | 1.21 | 0.00 | 0.66 | 13.54 | 14.99 | -24.14 | 65.92 | 0.4373 | -738.0 | -649.4 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 13.90 | 14.78 | -24.34 | 65.32 | 0.4422 | -867.0 | -688.9 | |
| 1.98 | 102.60 | 1.10 | 57.05 | 15.26 | 14.59 | -24.54 | 62.65 | 0.4530 | -727.2 | -226.6 | |
| 5.09 | -17.00 | 2.82 | -17.00 | 14.86 | 14.60 | -24.52 | 63.45 | 0.4504 | -869.1 | 999999 | |
| 6.56 | -17.00 | 3.64 | -17.00 | 14.46 | 14.38 | -24.75 | 64.45 | 0.4512 | -1027.5 | 999999 | |
| 0.00 | 2.50 | 0.00 | 1.42 | 19.34 | 13.69 | -25.44 | 55.67 | 0.4928 | -731.0 | -641.3 | |
| 0.00 | 0.43 | 0.00 | 0.24 | 14.07 | 14.39 | -24.73 | 65.26 | 0.4488 | -824.0 | -668.0 | |
| 1.12 | -17.00 | 0.63 | -17.00 | 15.61 | 14.17 | -24.96 | 62.29 | 0.4609 | -790.5 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.69 | 19.65 | 13.53 | -25.59 | 55.28 | 0.4970 | -805.0 | -563.4 | |
| 2.68 | -17.00 | 1.49 | -17.00 | 14.55 | 14.17 | -24.96 | 64.44 | 0.4546 | -847.2 | 999999 | |
| 1.64 | -17.00 | 0.91 | -17.00 | 14.36 | 14.09 | -25.04 | 64.88 | 0.4547 | -900.1 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.62 | 13.64 | 14.14 | -24.99 | 66.35 | 0.4501 | -925.0 | -770.1 | |
| 0.95 | -17.00 | 0.53 | -17.00 | 14.54 | 13.96 | -25.16 | 64.61 | 0.4575 | -597.5 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.59 | 19.89 | 13.18 | -25.95 | 55.19 | 0.5032 | -769.0 | -674.8 | |
| 0.86 | 3.19 | 0.48 | 1.77 | 13.93 | 13.83 | -25.29 | 65.96 | 0.4560 | -891.7 | -757.0 | |
| 0.00 | 1.12 | 0.00 | 0.65 | 20.31 | 12.64 | -26.48 | 54.95 | 0.5129 | -603.0 | -458.6 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 8.15 | 14.09 | -25.04 | 78.55 | 0.4293 | -642.0 | -424.8 | |
| 0.00 | 3.80 | 0.00 | 2.14 | 16.05 | 13.26 | -25.87 | 62.18 | 0.4761 | -27.0 | -127.0 | |
| 0.00 | 3.54 | 0.00 | 1.99 | 16.32 | 13.22 | -25.91 | 61.68 | 0.4783 | 814.0 | 429.8 | |
| 0.00 | 0.86 | 0.00 | 0.48 | 11.64 | 13.77 | -25.35 | 70.86 | 0.4458 | -836.0 | -720.5 | |
| 0.00 | 0.95 | 0.00 | 0.54 | 17.41 | 12.95 | -26.17 | 59.83 | 0.4888 | -575.0 | -518.7 | |
| 0.00 | 1.21 | 0.00 | 0.69 | 18.45 | 12.75 | -26.37 | 58.10 | 0.4983 | -696.0 | -620.6 | |
| 7.25 | 49.70 | 4.06 | 27.92 | 14.77 | 13.25 | -25.87 | 64.70 | 0.4687 | -985.6 | -337.9 | |
| 0.00 | 1.29 | 0.00 | 0.72 | 13.53 | 13.34 | -25.79 | 67.15 | 0.4609 | -592.0 | -390.1 | |
| 0.00 | 1.29 | 0.00 | 0.73 | 15.03 | 12.98 | -26.15 | 64.37 | 0.4740 | -406.0 | -279.2 | |
| 0.00 | 1.12 | 0.00 | 0.63 | 16.43 | 12.75 | -26.37 | 61.85 | 0.4852 | 869.0 | 681.5 | |
| 1.47 | -37.00 | 0.82 | -37.00 | 14.49 | 12.98 | -26.14 | 65.45 | 0.4709 | -897.0 | 999999 | |
| 1.12 | -37.00 | 0.63 | -37.00 | 14.76 | 12.84 | -26.28 | 65.02 | 0.4743 | -811.8 | 999999 | |
| 1.12 | -37.00 | 0.63 | -37.00 | 14.67 | 12.79 | -26.34 | 65.24 | 0.4746 | -851.8 | 999999 | |
| 0.00 | 1.98 | 0.00 | 1.13 | 16.88 | 12.48 | -26.65 | 61.21 | 0.4917 | 952.0 | 777.4 | |
| 0.00 | 0.95 | 0.00 | 0.53 | 13.45 | 12.73 | -26.39 | 67.71 | 0.4692 | 650.0 | 523.9 | |
| 0.00 | 1.64 | 0.00 | 0.93 | 13.70 | 11.84 | -27.28 | 67.78 | 0.4830 | -832.0 | -696.9 | |
| 1.04 | 362.26 | 0.59 | 207.47 | 14.58 | 11.70 | -27.43 | 66.17 | 0.4894 | 984.3 | 19.0 | |
| 0.00 | 1.21 | 0.00 | 0.70 | 17.45 | 11.09 | -28.04 | 61.23 | 0.5136 | 867.0 | 663.1 | |
| 0.00 | 2.16 | 0.00 | 1.21 | 11.08 | 11.90 | -27.23 | 73.06 | 0.4713 | -792.0 | -640.8 | |
| 0.00 | 1.04 | 0.00 | 0.58 | 12.79 | 11.71 | -27.41 | 69.67 | 0.4808 | 614.0 | 498.2 | |
| 2.76 | -47.00 | 1.57 | -47.00 | 14.84 | 11.24 | -27.88 | 65.96 | 0.4970 | 1013.8 | 999999 | |
| 2.33 | -47.00 | 1.33 | -47.00 | 14.13 | 11.06 | -28.06 | 67.42 | 0.4961 | -913.9 | 999999 | |
| 2.07 | -47.00 | 1.18 | -47.00 | 14.31 | 11.00 | -28.12 | 67.11 | 0.4978 | -693.2 | 999999 | |
| 4.66 | -47.00 | 2.65 | -47.00 | 13.50 | 11.04 | -28.08 | 68.66 | 0.4935 | -1203.9 | 999999 | |
| 20.37 | -47.00 | 11.66 | -47.00 | 14.70 | 10.74 | -28.38 | 66.54 | 0.5033 | 1214.1 | 999999 | |
| 4.75 | -47.00 | 2.71 | -47.00 | 13.94 | 10.74 | -28.39 | 67.98 | 0.4997 | -1072.6 | 999999 | |
| 0.00 | 2.07 | 0.00 | 1.20 | 16.24 | 10.33 | -28.79 | 63.95 | 0.5168 | 889.0 | 658.0 | |
| 0.78 | -47.00 | 0.44 | -47.00 | 13.36 | 10.57 | -28.55 | 69.19 | 0.4995 | -596.2 | 999999 | |
| 0.00 | 0.52 | 0.00 | 0.30 | 17.79 | 9.86 | -29.27 | 61.53 | 0.5317 | 711.0 | 654.8 | |
| 11.99 | -47.00 | 6.89 | -47.00 | 14.35 | 10.30 | -28.83 | 67.46 | 0.5078 | -883.8 | 999999 | |
| 1.55 | 3.45 | 0.90 | 2.01 | 16.93 | 9.90 | -29.22 | 63.00 | 0.5263 | 929.8 | 786.7 | |
| 0.00 | 1.12 | 0.00 | 0.66 | 17.97 | 9.72 | -29.41 | 61.31 | 0.5345 | 629.0 | 594.3 | |
| 0.00 | 0.43 | 0.00 | 0.25 | 16.63 | 9.92 | -29.21 | 63.54 | 0.5244 | 676.0 | 605.6 | |
| 9.41 | -47.00 | 5.39 | -47.00 | 13.87 | 10.26 | -28.86 | 68.40 | 0.5061 | -927.1 | 999999 | |
| 4.14 | -47.00 | 2.38 | -47.00 | 14.07 | 9.92 | -29.21 | 68.21 | 0.5118 | -772.6 | 999999 | |
| 0.00 | 2.33 | 0.00 | 1.37 | 17.40 | 9.28 | -29.84 | 62.59 | 0.5370 | 954.0 | 769.5 | |
| 0.00 | 3.37 | 0.00 | 2.00 | 19.52 | 8.80 | -30.32 | 59.34 | 0.5554 | 278.0 | 254.4 | |
| 8.97 | -47.00 | 5.20 | -47.00 | 14.97 | 9.51 | -29.62 | 66.79 | 0.5216 | 1103.4 | 999999 | |
| 1.55 | -47.00 | 0.90 | -47.00 | 13.97 | 9.65 | -29.48 | 68.54 | 0.5151 | -531.9 | 999999 | |
| 0.00 | 2.07 | 0.00 | 1.22 | 17.00 | 8.99 | -30.13 | 63.48 | 0.5386 | 790.0 | 747.3 | |
| 0.00 | 0.95 | 0.00 | 0.56 | 16.39 | 9.03 | -30.10 | 64.53 | 0.5350 | 709.0 | 553.1 | |
| 0.00 | 1.29 | 0.00 | 0.75 | 13.81 | 9.36 | -29.77 | 69.00 | 0.5185 | -538.0 | -377.2 | |
| 0.00 | 0.95 | 0.00 | 0.55 | 14.26 | 9.26 | -29.87 | 68.22 | 0.5219 | -361.0 | -181.7 | |
| 0.00 | 3.19 | 0.00 | 1.85 | 13.92 | 9.02 | -30.10 | 68.97 | 0.5237 | -566.0 | -462.1 | |
| 0.00 | 1.47 | 0.00 | 0.87 | 17.26 | 8.48 | -30.65 | 63.36 | 0.5468 | 628.0 | 541.2 | |
| 3.37 | 175.95 | 1.98 | 104.54 | 16.77 | 8.53 | -30.59 | 64.17 | 0.5436 | 1101.1 | 133.3 | |
| 0.00 | 1.12 | 0.00 | 0.65 | 14.71 | 8.87 | -30.26 | 67.62 | 0.5291 | -560.0 | -455.8 | |
| 0.00 | 1.12 | 0.00 | 0.65 | 14.52 | 8.79 | -30.33 | 68.00 | 0.5294 | -455.0 | -393.1 | |
| 4.66 | -76.00 | 2.74 | -76.00 | 16.03 | 8.51 | -30.61 | 65.46 | 0.5401 | -794.8 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.70 | 13.44 | 8.88 | -30.25 | 69.95 | 0.5237 | 515.0 | 371.2 | |
| 1.98 | -76.00 | 1.17 | -76.00 | 15.88 | 8.47 | -30.66 | 65.76 | 0.5400 | -855.4 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.52 | 19.61 | 7.72 | -31.41 | 59.94 | 0.5694 | 747.0 | 597.6 | |
| 10.10 | -76.00 | 5.97 | -76.00 | 16.91 | 8.18 | -30.95 | 64.14 | 0.5489 | 990.2 | 999999 | |
| 0.69 | 1.90 | 0.41 | 1.14 | 18.90 | 7.79 | -31.33 | 61.04 | 0.5645 | 909.2 | 746.9 | |
| 0.00 | 1.64 | 0.00 | 0.96 | 15.54 | 8.38 | -30.75 | 66.40 | 0.5396 | -643.0 | -547.8 | |
| 1.12 | -76.00 | 0.67 | -76.00 | 17.64 | 7.97 | -31.15 | 63.02 | 0.5554 | 816.9 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.52 | 19.91 | 7.43 | -31.70 | 59.64 | 0.5748 | 680.0 | 564.2 | |
| 11.99 | -76.00 | 7.13 | -76.00 | 17.21 | 7.80 | -31.33 | 63.86 | 0.5554 | -748.4 | 999999 | |
| 3.97 | -76.00 | 2.36 | -76.00 | 17.51 | 7.74 | -31.39 | 63.38 | 0.5577 | 178.6 | 999999 | |
| 0.95 | 6.39 | 0.56 | 3.76 | 15.50 | 8.10 | -31.03 | 66.63 | 0.5432 | -686.2 | -395.7 | |
| 0.00 | 0.78 | 0.00 | 0.46 | 15.07 | 7.99 | -31.14 | 67.44 | 0.5428 | -646.0 | -559.3 | |
| 2.33 | -76.00 | 1.39 | -76.00 | 17.78 | 7.43 | -31.69 | 63.12 | 0.5631 | 831.0 | 999999 | |
| 0.00 | 2.76 | 0.00 | 1.67 | 19.46 | 6.97 | -32.16 | 60.66 | 0.5779 | 583.0 | 515.2 | |
| 6.90 | -76.00 | 4.12 | -76.00 | 16.95 | 7.44 | -31.68 | 64.50 | 0.5588 | -872.0 | 999999 | |
| 0.95 | 2.50 | 0.58 | 1.52 | 20.01 | 6.81 | -32.32 | 59.88 | 0.5830 | 804.7 | 659.0 | |
| 0.00 | 3.80 | 0.00 | 2.23 | 14.10 | 7.93 | -31.20 | 69.20 | 0.5396 | 598.0 | 705.8 | |
| 0.00 | 2.24 | 0.00 | 1.37 | 20.42 | 6.71 | -32.41 | 59.31 | 0.5864 | 656.0 | 587.8 | |
| 0.00 | 1.47 | 0.00 | 0.86 | 12.51 | 8.12 | -31.01 | 72.01 | 0.5309 | -591.0 | -433.2 | |
| 0.60 | 10.27 | 0.35 | 6.03 | 13.19 | 7.91 | -31.21 | 70.84 | 0.5362 | 899.0 | 735.4 | |
| 0.00 | 2.16 | 0.00 | 1.31 | 19.85 | 6.65 | -32.47 | 60.23 | 0.5840 | 299.0 | 289.5 | |
| 6.21 | -76.00 | 3.73 | -76.00 | 17.80 | 7.06 | -32.07 | 63.31 | 0.5680 | 812.1 | 999999 | |
| 1.98 | -99.00 | 1.17 | -99.00 | 13.37 | 7.64 | -31.49 | 70.66 | 0.5407 | 866.7 | 999999 | |
| 0.00 | 2.24 | 0.00 | 1.37 | 19.72 | 6.42 | -32.70 | 60.58 | 0.5861 | 722.0 | 503.1 | |
| 0.00 | 1.98 | 0.00 | 1.21 | 19.59 | 6.26 | -32.86 | 60.88 | 0.5874 | 749.0 | 586.7 | |
| 0.00 | 4.75 | 0.00 | 2.79 | 12.64 | 7.49 | -31.63 | 72.04 | 0.5401 | -689.0 | -566.8 | |
| 0.00 | 1.21 | 0.00 | 0.71 | 13.00 | 7.41 | -31.72 | 71.43 | 0.5426 | 736.0 | 535.6 | |
| 0.00 | 2.16 | 0.00 | 1.27 | 12.15 | 7.16 | -31.96 | 73.06 | 0.5431 | -733.0 | -587.8 | |
| 0.78 | 4.23 | 0.47 | 2.54 | 15.57 | 6.30 | -32.82 | 67.45 | 0.5675 | 700.0 | 355.2 | |
| 0.00 | 1.38 | 0.00 | 0.85 | 19.18 | 5.11 | -34.01 | 62.20 | 0.5995 | 436.0 | 317.0 | |
| 0.00 | 1.47 | 0.00 | 0.89 | 15.91 | 5.50 | -33.62 | 67.28 | 0.5796 | -842.0 | -665.2 | |
| 0.00 | 1.64 | 0.00 | 1.01 | 17.94 | 4.71 | -34.41 | 64.38 | 0.5986 | 825.0 | 678.9 | |
| 0.00 | 1.12 | 0.00 | 0.71 | 19.98 | 3.88 | -35.25 | 61.65 | 0.6185 | 553.0 | 453.1 | |
| 0.00 | 1.98 | 0.00 | 1.23 | 17.19 | 4.34 | -34.78 | 65.76 | 0.5999 | 853.0 | 734.9 | |
| 0.00 | 1.90 | 0.00 | 1.17 | 16.97 | 4.20 | -34.92 | 66.18 | 0.6008 | 237.0 | 351.5 | |
| 0.00 | 0.86 | 0.00 | 0.55 | 20.09 | 3.31 | -35.82 | 61.80 | 0.6259 | 279.0 | 278.2 | |
| 0.00 | 0.69 | 0.00 | 0.43 | 16.79 | 3.51 | -35.61 | 66.78 | 0.6089 | 737.0 | 697.8 | |
| 3.62 | 10.36 | 2.27 | 6.50 | 16.89 | 2.99 | -36.13 | 66.85 | 0.6159 | 812.2 | 742.5 | |
| 0.00 | 6.56 | 0.00 | 4.13 | 17.35 | 2.81 | -36.31 | 66.22 | 0.6200 | 563.0 | 557.8 | |
| 0.00 | 1.21 | 0.00 | 0.79 | 15.25 | 359.79 | -39.33 | 70.60 | 0.6507 | 656.0 | 505.5 | |
| 0.00 | 1.38 | 0.00 | 0.92 | 15.59 | 358.42 | -40.71 | 70.52 | 0.6686 | 563.0 | 386.6 | |
| 0.00 | 1.29 | 0.00 | 0.86 | 15.49 | 358.24 | -40.89 | 70.72 | 0.6706 | 611.0 | 463.5 | |
| 0.00 | 1.55 | 0.00 | 1.06 | 14.11 | 356.29 | -42.84 | 73.26 | 0.6909 | 698.0 | 568.9 | |
| 0.00 | 0.69 | 0.00 | 0.47 | 14.32 | 356.24 | -42.88 | 72.97 | 0.6920 | 605.0 | 530.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
