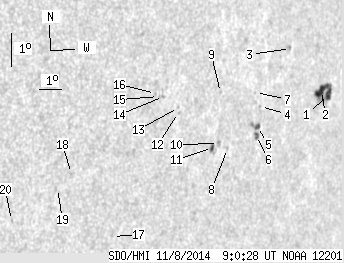

SDO HMI 2014-11-08 09:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.01 | 49.98 | 17.06 | 41.12 | -5.21 | 90.81 | 52.23 | 260.62 | 0.7990 | 162.7 | 122.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-08 09:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.35 | 25.02 | 4.68 | 21.76 | -4.89 | 93.51 | 54.93 | 261.55 | 0.8266 | 464.2 | 418.8 | |
| 9.66 | -1.00 | 8.38 | -1.00 | -4.75 | 93.13 | 54.55 | 261.66 | 0.8227 | 730.9 | 999999 | |
| 0.00 | 1.21 | 0.00 | 1.00 | -3.40 | 91.43 | 52.85 | 263.04 | 0.8038 | 595.0 | 442.1 | |
| 0.00 | 0.78 | 0.00 | 0.63 | -5.07 | 90.12 | 51.54 | 260.73 | 0.7926 | 525.0 | 408.1 | |
| 1.81 | 8.20 | 1.47 | 6.62 | -5.67 | 90.05 | 51.47 | 259.97 | 0.7928 | 683.4 | 596.8 | |
| 1.55 | -5.00 | 1.26 | -5.00 | -5.94 | 90.03 | 51.45 | 259.63 | 0.7931 | 665.3 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.48 | -4.64 | 89.84 | 51.26 | 261.23 | 0.7889 | 615.0 | 542.0 | |
| 0.00 | 1.04 | 0.00 | 0.82 | -6.26 | 88.70 | 50.12 | 258.95 | 0.7795 | -446.0 | -297.5 | |
| 0.00 | 0.78 | 0.00 | 0.60 | -4.55 | 88.18 | 49.60 | 261.02 | 0.7709 | -323.0 | -245.1 | |
| 0.00 | 2.59 | 0.00 | 2.02 | -6.09 | 88.25 | 49.68 | 259.07 | 0.7744 | -526.0 | -354.1 | |
| 1.64 | 2.76 | 1.27 | 2.14 | -6.20 | 87.99 | 49.41 | 258.87 | 0.7717 | -698.4 | -513.2 | |
| 0.00 | 0.69 | 0.00 | 0.52 | -5.06 | 86.32 | 47.74 | 259.98 | 0.7510 | -488.0 | -517.5 | |
| 0.00 | 0.95 | 0.00 | 0.71 | -4.91 | 86.31 | 47.73 | 260.17 | 0.7506 | -547.0 | -394.4 | |
| 0.00 | 1.21 | 0.00 | 0.89 | -4.55 | 85.61 | 47.03 | 260.51 | 0.7419 | -687.0 | -629.0 | |
| 0.00 | 0.52 | 0.00 | 0.38 | -4.54 | 85.39 | 46.81 | 260.48 | 0.7393 | -374.0 | -477.3 | |
| 0.00 | 0.95 | 0.00 | 0.69 | -4.44 | 85.25 | 46.67 | 260.57 | 0.7375 | -499.0 | -520.9 | |
| 0.00 | 0.60 | 0.00 | 0.44 | -8.69 | 83.90 | 45.32 | 254.53 | 0.7316 | -528.0 | -358.7 | |
| 0.00 | 0.69 | 0.00 | 0.48 | -6.69 | 81.91 | 43.33 | 256.64 | 0.7028 | -593.0 | -501.4 | |
| 0.00 | 0.35 | 0.00 | 0.24 | -7.12 | 81.38 | 42.80 | 255.88 | 0.6976 | -261.0 | -275.0 | |
| 0.00 | 1.04 | 0.00 | 0.70 | -8.01 | 79.63 | 41.05 | 254.02 | 0.6787 | -499.0 | -479.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
