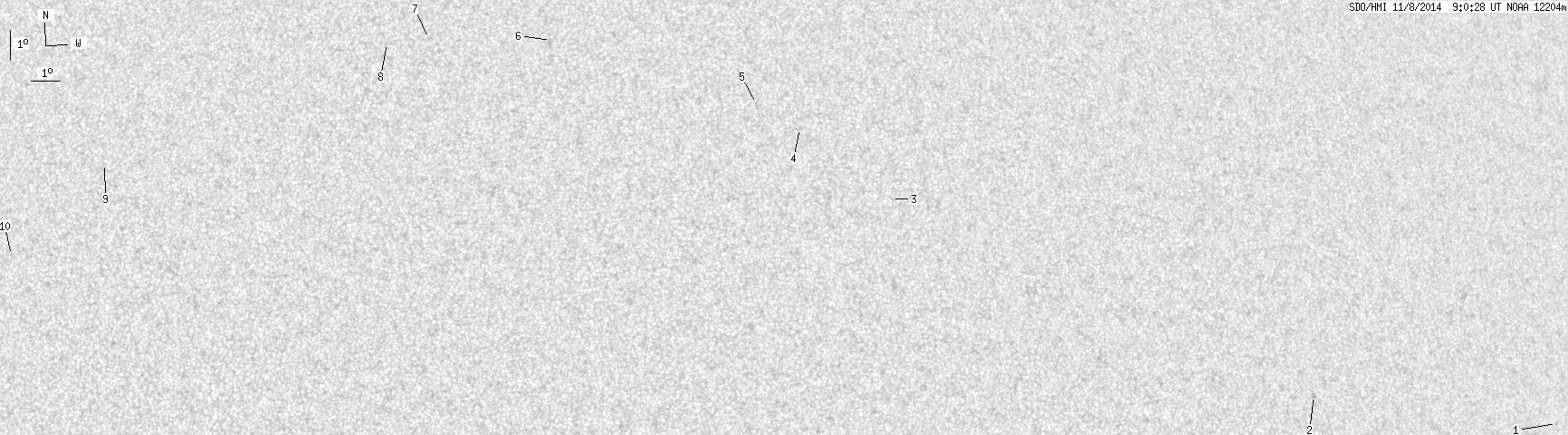

SDO HMI 2014-11-08 09:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.90 | 14.42 | 1.00 | 7.84 | 18.30 | 49.20 | 10.62 | 223.84 | 0.4028 | -127.6 | -177.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-08 09:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.77 | 10.10 | 77.45 | 38.87 | 281.59 | 0.6330 | -678.0 | -545.6 | |
| 0.00 | 2.24 | 0.00 | 1.28 | 11.37 | 67.80 | 29.22 | 286.62 | 0.5016 | -635.0 | -617.8 | |
| 0.00 | 0.69 | 0.00 | 0.36 | 18.31 | 53.01 | 14.43 | 317.22 | 0.3498 | -17.0 | -8.1 | |
| 0.00 | 3.37 | 0.00 | 1.78 | 20.77 | 49.94 | 11.36 | 328.11 | 0.3503 | -3.0 | -1.4 | |
| 1.90 | 2.07 | 1.00 | 1.09 | 21.63 | 48.45 | 9.87 | 332.80 | 0.3503 | -8.1 | -8.5 | |
| 0.00 | 0.26 | 0.00 | 0.14 | 23.89 | 41.20 | 2.62 | 353.13 | 0.3506 | 23.0 | 14.3 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 23.96 | 36.81 | -1.77 | 4.64 | 0.3504 | 29.0 | 5.4 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 23.80 | 35.32 | -3.26 | 8.58 | 0.3506 | 16.0 | 1.8 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 19.57 | 25.46 | -13.12 | 37.73 | 0.3510 | -8.0 | -7.3 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 16.42 | 22.40 | -16.18 | 50.02 | 0.3504 | 5.0 | -1.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
