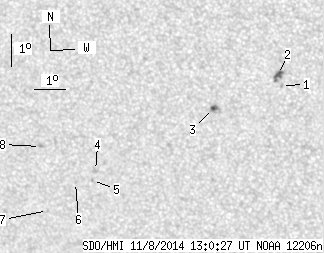

SDO HMI 2014-11-08 13:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.48 | 20.37 | 2.41 | 11.15 | -14.57 | 19.00 | -17.39 | 137.25 | 0.4249 | -306.3 | -200.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-08 13:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.65 | -13.44 | 22.11 | -14.29 | 140.50 | 0.3789 | 773.0 | 646.2 | |
| 2.67 | 6.99 | 1.43 | 3.73 | -13.10 | 22.03 | -14.36 | 139.76 | 0.3755 | 1014.5 | 731.8 | |
| 1.81 | 4.83 | 0.98 | 2.62 | -14.19 | 19.90 | -16.49 | 137.75 | 0.4111 | -961.0 | -699.3 | |
| 0.00 | 2.85 | 0.00 | 1.60 | -16.21 | 15.88 | -20.52 | 134.88 | 0.4769 | -886.0 | -711.4 | |
| 0.00 | 1.21 | 0.00 | 0.68 | -16.53 | 15.74 | -20.65 | 135.19 | 0.4817 | -786.0 | -657.4 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -16.61 | 15.17 | -21.22 | 134.54 | 0.4887 | -688.0 | -503.6 | |
| 0.00 | 0.78 | 0.00 | 0.45 | -17.52 | 14.12 | -22.27 | 134.55 | 0.5093 | -683.0 | -497.7 | |
| 0.00 | 1.47 | 0.00 | 0.83 | -15.50 | 14.13 | -22.26 | 131.48 | 0.4892 | -815.0 | -721.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
