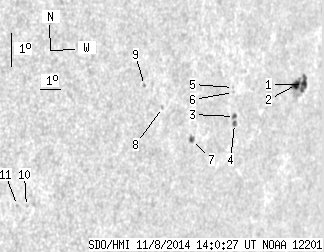

SDO HMI 2014-11-08 14:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.05 | 35.60 | 12.92 | 31.93 | -5.18 | 91.66 | 55.82 | 261.30 | 0.8345 | 263.0 | 229.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-08 14:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.38 | 22.16 | 6.04 | 20.85 | -4.87 | 93.73 | 57.89 | 262.04 | 0.8543 | 424.8 | 439.9 | |
| 4.40 | -1.00 | 4.11 | -1.00 | -4.85 | 93.33 | 57.49 | 262.00 | 0.8506 | 759.1 | 999999 | |
| 1.03 | 2.33 | 0.89 | 2.01 | -5.64 | 90.12 | 54.28 | 260.54 | 0.8212 | 622.5 | 514.1 | |
| 1.03 | 2.41 | 0.89 | 2.09 | -5.85 | 90.15 | 54.31 | 260.29 | 0.8218 | 636.7 | 455.4 | |
| 0.00 | 0.86 | 0.00 | 0.74 | -4.76 | 89.96 | 54.11 | 261.58 | 0.8184 | 617.0 | 562.7 | |
| 0.00 | 0.86 | 0.00 | 0.74 | -4.91 | 89.97 | 54.13 | 261.40 | 0.8188 | 538.0 | 484.6 | |
| 1.21 | 3.28 | 0.99 | 2.70 | -6.22 | 88.04 | 52.20 | 259.44 | 0.8013 | -632.6 | -461.0 | |
| 0.00 | 1.03 | 0.00 | 0.82 | -5.19 | 86.51 | 50.67 | 260.43 | 0.7835 | -593.0 | -503.8 | |
| 0.00 | 1.29 | 0.00 | 1.00 | -4.48 | 85.60 | 49.76 | 261.16 | 0.7724 | -655.0 | -555.1 | |
| 0.00 | 0.52 | 0.00 | 0.37 | -7.89 | 80.77 | 44.92 | 255.49 | 0.7249 | -481.0 | -458.2 | |
| 0.00 | 0.86 | 0.00 | 0.61 | -7.84 | 80.38 | 44.54 | 255.44 | 0.7202 | -629.0 | -499.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
