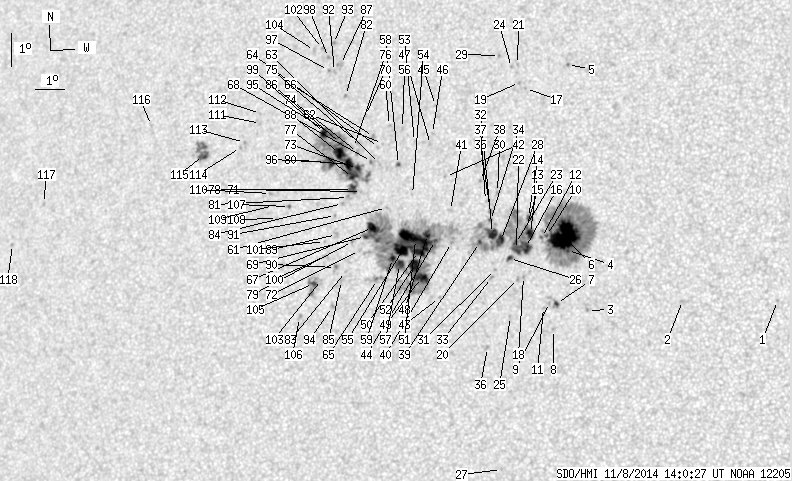

SDO HMI 2014-11-08 14:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 247.46 | 1037.51 | 137.16 | 575.72 | 15.12 | 11.59 | -24.25 | 62.46 | 0.4481 | -248.8 | -112.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-08 14:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.49 | 13.03 | 22.72 | -13.12 | 53.21 | 0.2774 | -843.0 | -615.7 | |
| 0.00 | 1.21 | 0.00 | 0.63 | 12.98 | 19.73 | -16.11 | 58.54 | 0.3185 | -816.0 | -457.2 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 12.63 | 16.72 | -19.12 | 63.36 | 0.3592 | -1057.0 | -886.2 | |
| 0.95 | 246.63 | 0.51 | 132.43 | 14.42 | 15.92 | -19.92 | 59.88 | 0.3832 | -1231.7 | -463.6 | |
| 0.00 | 1.21 | 0.00 | 0.67 | 20.11 | 15.27 | -20.57 | 48.90 | 0.4397 | -989.0 | -841.3 | |
| 48.98 | -4.00 | 26.31 | -4.00 | 14.85 | 15.78 | -20.06 | 59.07 | 0.3882 | -1309.8 | 999999 | |
| 1.29 | 5.95 | 0.69 | 3.18 | 12.82 | 15.70 | -20.14 | 63.97 | 0.3753 | -1022.1 | -747.2 | |
| 0.00 | 1.38 | 0.00 | 0.74 | 12.04 | 15.67 | -20.18 | 65.95 | 0.3710 | -813.0 | -677.9 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 12.85 | 15.47 | -20.37 | 64.14 | 0.3788 | -785.0 | -671.8 | |
| 0.60 | -4.00 | 0.33 | -4.00 | 14.86 | 15.19 | -20.65 | 59.70 | 0.3966 | -786.6 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.32 | 12.69 | 15.29 | -20.55 | 64.70 | 0.3805 | -732.0 | -543.0 | |
| 0.43 | -4.00 | 0.23 | -4.00 | 14.80 | 15.03 | -20.81 | 60.01 | 0.3983 | -787.0 | 999999 | |
| 5.09 | 133.23 | 2.75 | 72.49 | 14.91 | 14.66 | -21.19 | 60.16 | 0.4043 | -944.8 | -260.8 | |
| 1.29 | 3.36 | 0.70 | 1.82 | 15.40 | 14.54 | -21.30 | 59.22 | 0.4094 | -757.3 | -632.5 | |
| 1.12 | -13.00 | 0.61 | -13.00 | 15.09 | 14.51 | -21.34 | 59.93 | 0.4077 | -680.4 | 999999 | |
| 9.14 | -13.00 | 4.94 | -13.00 | 14.49 | 14.54 | -21.31 | 61.25 | 0.4030 | -1054.4 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.43 | 19.34 | 13.96 | -21.89 | 51.93 | 0.4487 | -808.0 | -677.7 | |
| 0.00 | 1.21 | 0.00 | 0.65 | 13.61 | 14.55 | -21.29 | 63.23 | 0.3969 | -882.0 | -673.0 | |
| 0.00 | 1.21 | 0.00 | 0.67 | 19.52 | 13.73 | -22.12 | 51.86 | 0.4530 | -886.0 | -730.6 | |
| 0.00 | 1.72 | 0.00 | 0.93 | 13.55 | 14.36 | -21.48 | 63.56 | 0.3993 | -972.0 | -778.9 | |
| 0.00 | 1.29 | 0.00 | 0.72 | 20.07 | 13.58 | -22.27 | 51.03 | 0.4597 | -849.0 | -686.0 | |
| 4.40 | -13.00 | 2.38 | -13.00 | 14.42 | 14.25 | -21.60 | 61.69 | 0.4066 | -906.0 | 999999 | |
| 2.24 | -13.00 | 1.22 | -13.00 | 14.60 | 14.19 | -21.65 | 61.34 | 0.4086 | -817.3 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.48 | 19.97 | 13.39 | -22.46 | 51.42 | 0.4612 | -727.0 | -665.5 | |
| 0.00 | 1.12 | 0.00 | 0.60 | 12.40 | 14.24 | -21.61 | 66.38 | 0.3942 | -674.0 | -586.8 | |
| 1.72 | 3.28 | 0.93 | 1.78 | 14.14 | 14.04 | -21.80 | 62.51 | 0.4077 | -831.1 | -686.7 | |
| 0.00 | 0.86 | 0.00 | 0.46 | 7.82 | 14.26 | -21.58 | 77.92 | 0.3743 | -829.0 | -632.2 | |
| 6.12 | -13.00 | 3.33 | -13.00 | 14.68 | 13.69 | -22.15 | 61.66 | 0.4162 | -972.9 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.72 | 20.33 | 12.92 | -22.92 | 51.30 | 0.4699 | -799.0 | -625.4 | |
| 0.00 | 2.24 | 0.00 | 1.23 | 16.13 | 13.43 | -22.42 | 58.83 | 0.4299 | -636.0 | -415.8 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 13.80 | 13.61 | -22.23 | 63.69 | 0.4116 | -719.0 | -575.0 | |
| 7.93 | -13.00 | 4.33 | -13.00 | 14.89 | 13.40 | -22.44 | 61.50 | 0.4216 | -861.6 | 999999 | |
| 0.00 | 1.55 | 0.00 | 0.84 | 13.56 | 13.51 | -22.34 | 64.34 | 0.4117 | -699.0 | -504.6 | |
| 0.00 | 1.47 | 0.00 | 0.80 | 15.28 | 13.29 | -22.55 | 60.76 | 0.4258 | -743.0 | -634.9 | |
| 0.00 | 2.59 | 0.00 | 1.42 | 15.55 | 13.26 | -22.58 | 60.22 | 0.4281 | -761.0 | -650.3 | |
| 0.00 | 1.72 | 0.00 | 0.93 | 11.45 | 13.56 | -22.28 | 69.19 | 0.3992 | -854.0 | -664.3 | |
| 0.00 | 0.52 | 0.00 | 0.28 | 15.88 | 13.06 | -22.79 | 59.73 | 0.4332 | -386.0 | -447.2 | |
| 0.00 | 1.03 | 0.00 | 0.57 | 16.49 | 12.81 | -23.03 | 58.73 | 0.4407 | 826.0 | 696.7 | |
| 1.29 | -13.00 | 0.71 | -13.00 | 14.60 | 13.00 | -22.84 | 62.49 | 0.4254 | -718.4 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.90 | 14.58 | 12.07 | -23.78 | 63.36 | 0.4384 | 884.0 | 541.4 | |
| 0.00 | 2.67 | 0.00 | 1.48 | 15.55 | 11.92 | -23.92 | 61.48 | 0.4465 | 341.0 | 305.4 | |
| 0.00 | 1.29 | 0.00 | 0.72 | 16.58 | 11.62 | -24.23 | 59.69 | 0.4575 | -493.0 | -345.9 | |
| 0.00 | 0.86 | 0.00 | 0.47 | 12.92 | 11.84 | -24.00 | 67.13 | 0.4321 | 642.0 | 509.2 | |
| 1.47 | 342.43 | 0.81 | 190.63 | 14.63 | 11.52 | -24.32 | 63.72 | 0.4463 | 1084.9 | -8.4 | |
| 0.00 | 1.38 | 0.00 | 0.78 | 18.74 | 10.96 | -24.88 | 56.20 | 0.4815 | 713.0 | 551.3 | |
| 0.00 | 1.03 | 0.00 | 0.58 | 17.88 | 10.99 | -24.85 | 57.77 | 0.4748 | 824.0 | 620.5 | |
| 0.00 | 1.29 | 0.00 | 0.73 | 17.54 | 10.97 | -24.87 | 58.42 | 0.4727 | 844.0 | 672.7 | |
| 4.48 | -44.00 | 2.49 | -44.00 | 14.81 | 11.23 | -24.61 | 63.60 | 0.4514 | 1051.1 | 999999 | |
| 9.57 | -44.00 | 5.29 | -44.00 | 13.50 | 11.18 | -24.66 | 66.36 | 0.4448 | -1179.1 | 999999 | |
| 8.02 | -44.00 | 4.45 | -44.00 | 14.29 | 10.99 | -24.85 | 64.87 | 0.4518 | -784.2 | 999999 | |
| 33.46 | -44.00 | 18.60 | -44.00 | 14.64 | 10.84 | -25.00 | 64.24 | 0.4559 | 911.3 | 999999 | |
| 10.18 | -44.00 | 5.64 | -44.00 | 13.86 | 10.90 | -24.94 | 65.82 | 0.4507 | -1153.1 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.49 | 17.62 | 10.41 | -25.44 | 58.78 | 0.4806 | 650.0 | 504.2 | |
| 0.00 | 0.95 | 0.00 | 0.53 | 16.01 | 10.57 | -25.27 | 61.74 | 0.4679 | -477.0 | -397.8 | |
| 19.66 | -44.00 | 10.95 | -44.00 | 14.36 | 10.47 | -25.37 | 65.11 | 0.4595 | -636.6 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.73 | 18.01 | 9.93 | -25.91 | 58.48 | 0.4895 | 894.0 | 732.6 | |
| 6.12 | -44.00 | 3.41 | -44.00 | 13.88 | 10.39 | -25.45 | 66.16 | 0.4580 | -930.8 | 999999 | |
| 0.78 | 1.90 | 0.44 | 1.07 | 16.91 | 9.96 | -25.88 | 60.51 | 0.4818 | 823.8 | 648.7 | |
| 2.59 | -44.00 | 1.44 | -44.00 | 14.05 | 10.14 | -25.71 | 65.99 | 0.4626 | -890.0 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.59 | 18.09 | 9.47 | -26.38 | 58.73 | 0.4961 | 726.0 | 648.5 | |
| 0.00 | 1.03 | 0.00 | 0.58 | 15.59 | 9.73 | -26.11 | 63.22 | 0.4768 | 752.0 | 580.6 | |
| 0.00 | 0.86 | 0.00 | 0.49 | 17.53 | 9.31 | -26.53 | 59.88 | 0.4944 | 791.0 | 625.3 | |
| 0.00 | 1.55 | 0.00 | 0.88 | 16.92 | 9.30 | -26.54 | 61.03 | 0.4907 | 789.0 | 627.1 | |
| 0.00 | 1.55 | 0.00 | 0.88 | 17.41 | 9.19 | -26.65 | 60.21 | 0.4952 | 765.0 | 570.8 | |
| 0.00 | 10.69 | 0.00 | 5.98 | 13.41 | 9.70 | -26.14 | 67.61 | 0.4655 | -80.0 | -278.0 | |
| 0.00 | 2.33 | 0.00 | 1.33 | 17.74 | 8.96 | -26.88 | 59.79 | 0.5003 | 765.0 | 594.6 | |
| 7.76 | -44.00 | 4.37 | -44.00 | 14.97 | 9.34 | -26.51 | 64.73 | 0.4788 | 1010.3 | 999999 | |
| 0.00 | 1.81 | 0.00 | 1.03 | 16.97 | 9.01 | -26.83 | 61.15 | 0.4948 | 910.0 | 776.2 | |
| 1.55 | -44.00 | 0.88 | -44.00 | 14.69 | 9.13 | -26.71 | 65.42 | 0.4801 | -157.1 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.79 | 18.37 | 8.58 | -27.27 | 58.96 | 0.5095 | 679.0 | 540.8 | |
| 0.00 | 0.86 | 0.00 | 0.49 | 16.05 | 8.80 | -27.04 | 63.04 | 0.4921 | 708.0 | 523.1 | |
| 0.00 | 1.47 | 0.00 | 0.83 | 14.26 | 8.98 | -26.86 | 66.37 | 0.4800 | -189.0 | -248.9 | |
| 2.67 | 150.22 | 1.53 | 86.41 | 16.75 | 8.56 | -27.28 | 61.92 | 0.4995 | 1122.5 | 134.3 | |
| 0.00 | 2.16 | 0.00 | 1.23 | 17.23 | 8.48 | -27.36 | 61.08 | 0.5035 | 829.0 | 734.0 | |
| 0.00 | 1.03 | 0.00 | 0.59 | 17.54 | 8.44 | -27.41 | 60.57 | 0.5060 | 639.0 | 564.8 | |
| 0.00 | 1.12 | 0.00 | 0.64 | 17.38 | 8.32 | -27.52 | 60.94 | 0.5066 | 356.0 | 272.8 | |
| 2.33 | -73.00 | 1.33 | -73.00 | 16.47 | 8.43 | -27.41 | 62.54 | 0.4996 | -537.3 | 999999 | |
| 5.09 | -73.00 | 2.90 | -73.00 | 16.10 | 8.48 | -27.36 | 63.18 | 0.4968 | -828.1 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.93 | 14.53 | 8.70 | -27.14 | 66.03 | 0.4852 | -613.0 | -531.4 | |
| 7.59 | -73.00 | 4.35 | -73.00 | 16.86 | 8.26 | -27.58 | 61.94 | 0.5042 | 1082.8 | 999999 | |
| 0.00 | 1.47 | 0.00 | 0.84 | 15.86 | 8.38 | -27.46 | 63.71 | 0.4968 | -1011.0 | -752.4 | |
| 0.00 | 1.03 | 0.00 | 0.60 | 18.97 | 7.76 | -28.08 | 58.57 | 0.5238 | 868.0 | 753.9 | |
| 0.00 | 0.95 | 0.00 | 0.54 | 13.62 | 8.58 | -27.26 | 67.90 | 0.4825 | 395.0 | 297.6 | |
| 0.00 | 1.21 | 0.00 | 0.69 | 15.67 | 8.20 | -27.64 | 64.19 | 0.4982 | -779.0 | -649.2 | |
| 0.00 | 1.38 | 0.00 | 0.78 | 13.34 | 8.48 | -27.37 | 68.51 | 0.4827 | 794.0 | 583.1 | |
| 1.55 | -73.00 | 0.89 | -73.00 | 17.49 | 7.84 | -28.00 | 61.10 | 0.5135 | -52.7 | 999999 | |
| 0.00 | 3.02 | 0.00 | 1.77 | 19.92 | 7.41 | -28.44 | 57.24 | 0.5345 | 761.0 | 695.0 | |
| 10.09 | -73.00 | 5.81 | -73.00 | 17.19 | 7.86 | -27.98 | 61.64 | 0.5115 | -923.3 | 999999 | |
| 0.00 | 3.62 | 0.00 | 2.06 | 14.73 | 8.12 | -27.72 | 66.04 | 0.4943 | -874.0 | -649.2 | |
| 0.00 | 2.67 | 0.00 | 1.51 | 13.73 | 8.22 | -27.62 | 67.90 | 0.4881 | 1031.0 | 855.1 | |
| 0.00 | 1.12 | 0.00 | 0.64 | 15.30 | 8.01 | -27.83 | 65.02 | 0.4989 | -656.0 | -614.0 | |
| 0.00 | 1.64 | 0.00 | 0.96 | 19.70 | 7.23 | -28.61 | 57.75 | 0.5352 | 780.0 | 657.2 | |
| 0.00 | 1.81 | 0.00 | 1.07 | 20.56 | 7.02 | -28.82 | 56.48 | 0.5435 | 840.0 | 645.3 | |
| 0.00 | 2.07 | 0.00 | 1.17 | 12.55 | 8.26 | -27.58 | 70.21 | 0.4823 | -824.0 | -594.5 | |
| 0.86 | -73.00 | 0.50 | -73.00 | 17.76 | 7.48 | -28.36 | 60.90 | 0.5198 | 800.3 | 999999 | |
| 6.12 | -73.00 | 3.53 | -73.00 | 16.90 | 7.59 | -28.25 | 62.35 | 0.5134 | -922.9 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.46 | 19.72 | 7.01 | -28.83 | 57.88 | 0.5381 | 710.0 | 683.0 | |
| 0.00 | 1.64 | 0.00 | 0.96 | 20.12 | 6.93 | -28.91 | 57.27 | 0.5417 | 862.0 | 695.6 | |
| 5.26 | -73.00 | 3.05 | -73.00 | 17.78 | 7.23 | -28.61 | 61.04 | 0.5233 | 789.0 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.79 | 14.05 | 7.80 | -28.04 | 67.54 | 0.4955 | 684.0 | 653.1 | |
| 0.00 | 0.86 | 0.00 | 0.49 | 14.50 | 7.74 | -28.10 | 66.71 | 0.4986 | -479.0 | -366.5 | |
| 0.00 | 1.29 | 0.00 | 0.76 | 20.39 | 6.66 | -29.18 | 57.04 | 0.5469 | 771.0 | 674.7 | |
| 0.00 | 0.86 | 0.00 | 0.49 | 13.35 | 7.78 | -28.06 | 68.90 | 0.4926 | 709.0 | 613.9 | |
| 0.00 | 2.24 | 0.00 | 1.33 | 20.32 | 6.38 | -29.46 | 57.36 | 0.5499 | 514.0 | 387.9 | |
| 2.50 | 13.88 | 1.42 | 7.91 | 13.23 | 7.52 | -28.32 | 69.29 | 0.4957 | 926.3 | 375.5 | |
| 0.00 | 2.59 | 0.00 | 1.47 | 12.19 | 7.16 | -28.68 | 71.50 | 0.4967 | -723.0 | -608.7 | |
| 0.43 | 1.64 | 0.25 | 0.95 | 15.53 | 6.36 | -29.48 | 65.66 | 0.5226 | 742.4 | 631.9 | |
| 0.00 | 1.21 | 0.00 | 0.70 | 15.15 | 5.99 | -29.85 | 66.56 | 0.5258 | -536.0 | -430.3 | |
| 0.00 | 0.86 | 0.00 | 0.50 | 15.54 | 5.79 | -30.06 | 65.98 | 0.5304 | -697.0 | -570.3 | |
| 0.00 | 1.55 | 0.00 | 0.91 | 15.90 | 5.62 | -30.22 | 65.44 | 0.5344 | -798.0 | -614.0 | |
| 0.00 | 1.12 | 0.00 | 0.67 | 18.02 | 4.88 | -30.96 | 62.23 | 0.5551 | 460.0 | 499.7 | |
| 0.00 | 0.52 | 0.00 | 0.31 | 18.33 | 4.82 | -31.02 | 61.76 | 0.5575 | 650.0 | 530.7 | |
| 0.00 | 1.12 | 0.00 | 0.67 | 17.42 | 4.41 | -31.43 | 63.53 | 0.5580 | 610.0 | 567.1 | |
| 0.00 | 1.21 | 0.00 | 0.72 | 17.27 | 4.29 | -31.55 | 63.87 | 0.5587 | 701.0 | 574.4 | |
| 4.74 | 16.64 | 2.86 | 10.07 | 16.98 | 2.99 | -32.85 | 65.08 | 0.5743 | 888.4 | 663.3 | |
| 0.00 | 0.78 | 0.00 | 0.48 | 17.83 | 0.85 | -34.99 | 64.82 | 0.6055 | 553.0 | 446.4 | |
| 0.00 | 1.38 | 0.00 | 0.89 | 15.32 | 357.26 | -38.58 | 70.22 | 0.6415 | 553.0 | 495.1 | |
| 0.00 | 1.29 | 0.00 | 0.84 | 14.03 | 356.26 | -39.58 | 72.48 | 0.6505 | 568.0 | 464.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
