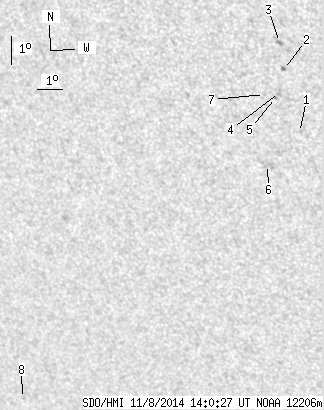

SDO HMI 2014-11-08 14:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.43 | 17.76 | 0.26 | 11.11 | -23.34 | 9.00 | -26.85 | 137.19 | 0.6104 | 435.5 | 502.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-08 14:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.34 | 0.00 | 0.21 | -23.39 | 10.44 | -25.40 | 138.70 | 0.5989 | -515.0 | -536.5 | |
| 0.43 | 1.81 | 0.26 | 1.10 | -21.31 | 10.28 | -25.56 | 135.95 | 0.5804 | 827.2 | 727.6 | |
| 0.00 | 2.59 | 0.00 | 1.56 | -20.43 | 10.30 | -25.54 | 134.82 | 0.5718 | 726.0 | 597.5 | |
| 0.00 | 2.93 | 0.00 | 1.80 | -22.08 | 9.99 | -25.85 | 136.61 | 0.5905 | 718.0 | 538.1 | |
| 0.00 | 0.95 | 0.00 | 0.58 | -22.25 | 9.81 | -26.03 | 136.64 | 0.5938 | 569.0 | 594.3 | |
| 0.00 | 7.59 | 0.00 | 4.79 | -24.50 | 9.04 | -26.81 | 138.56 | 0.6224 | 745.0 | 541.6 | |
| 0.00 | 0.95 | 0.00 | 0.58 | -22.16 | 9.44 | -26.40 | 136.13 | 0.5966 | 745.0 | 513.1 | |
| 0.00 | 0.60 | 0.00 | 0.49 | -33.19 | 355.83 | -40.01 | 137.47 | 0.7982 | -433.0 | -363.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
