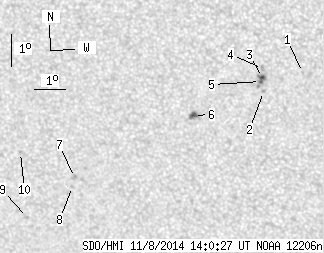

SDO HMI 2014-11-08 14:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.40 | 21.99 | 2.37 | 11.93 | -14.26 | 19.67 | -16.18 | 138.79 | 0.4084 | 26.2 | 19.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-08 14:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.69 | 0.00 | 0.36 | -12.82 | 23.41 | -12.43 | 143.28 | 0.3525 | 817.0 | 623.9 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -13.43 | 22.16 | -13.68 | 141.68 | 0.3727 | 881.0 | 635.4 | |
| 1.47 | 6.64 | 0.78 | 3.54 | -13.00 | 22.15 | -13.69 | 140.91 | 0.3673 | 1077.2 | 771.3 | |
| 0.00 | 2.41 | 0.00 | 1.28 | -12.72 | 22.17 | -13.67 | 140.45 | 0.3637 | 843.0 | 640.5 | |
| 0.52 | -3.00 | 0.28 | -3.00 | -13.12 | 22.08 | -13.76 | 140.99 | 0.3696 | 901.2 | 999999 | |
| 2.41 | 4.83 | 1.31 | 2.61 | -14.21 | 19.89 | -15.95 | 138.73 | 0.4056 | -977.6 | -730.1 | |
| 0.00 | 2.76 | 0.00 | 1.55 | -16.23 | 15.86 | -19.99 | 135.65 | 0.4714 | -865.0 | -691.4 | |
| 0.00 | 1.38 | 0.00 | 0.78 | -16.52 | 15.76 | -20.08 | 135.95 | 0.4754 | -627.0 | -584.9 | |
| 0.00 | 0.95 | 0.00 | 0.54 | -17.54 | 14.14 | -21.70 | 135.31 | 0.5034 | -715.0 | -564.8 | |
| 0.00 | 1.12 | 0.00 | 0.63 | -15.48 | 14.16 | -21.69 | 132.18 | 0.4826 | -775.0 | -636.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
